Description
PARTE: 2CK-BM-301

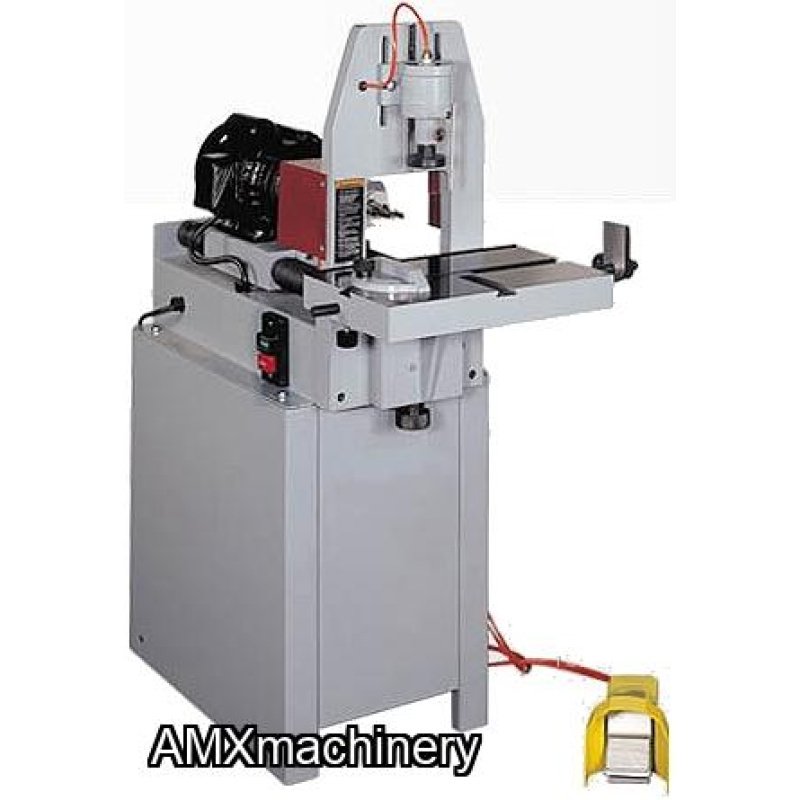

- Motor and drilling head mounted on carriage, sliding on parallel bars with pneumatic movement.
- Come with adjustable two spindle drill head.
- Pneumatic work clamp to firmly hold workpieces.
- Machine operation activated by shrouded foot pedal.
- Cast iron work table with miter gauge for angled holes.
- Screw rise and fall adjustment of work table for varying timber thicknesses.
- Enclosed sheet steel floor stand supporting the machine.
|
Table size |
400 x 250mm |
|
Motor |
2HP (230/3/60) |
|
Spindle speed |
3450 RPM |
|
Thread |
M8 x 1.25P or M10 x 1.5P |
|
Maximum stroke |
100mm |
|
Machine weight |
120 kgs. |
|
Voltage |
230/3/60 |
