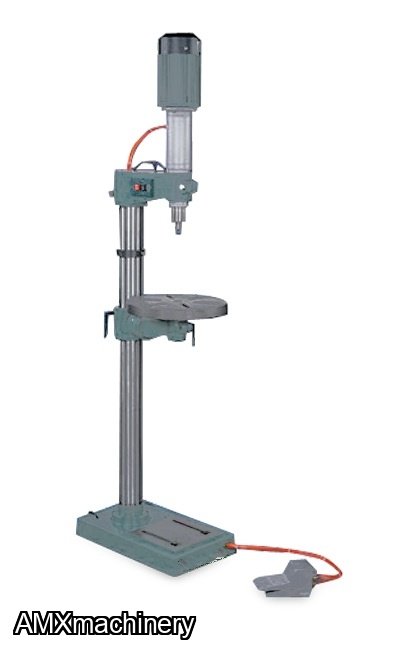

TALADRO VERTICAL - PARA CABEZAL SENCILLO O MULTIPLE - 2 HP

PARTE: 2LO-BR-62 - TALADRO VERTICAL - PARA CABEZAL SENCILLO O MULTIPLE - 2 HP

Motor eléctrico 2 HP, 220V, 3 fases

Pistón neumático con movimiento arriba y abajo

Standard with Drill Chuck

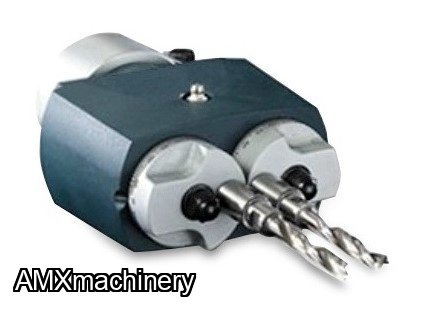

Optional with Multiple Drill Head

Features:

• Pneumatic operation to drill several holes at once producing mass drilling capability.

• Precision large travel piston to ensure accurate drilling position.

• The machine is ruggedly constructed throughout and convenient operation facilitated by the use

of a foot switch control.

• Suitable and affordable for industrial and small workshop use.

• Pneumatic drill head travels for fast and easy operation.

• Standard come with stand, operated by foot pedal, hands free.

SPECIFICATIONS

Motor 2 HP

Drill Speed 3400 RPM

Spindle Accepts Shank 7/16"x 14 UNC

Spindle Stroke (Max) 3"

Table Size (W x L) 12" Dia

Chuck 5/8"

Throat Depth 10"

Multiple Drill Head Available YES

Standard Spindle 1

Max. Spindle Optional

N.W. 185 LBS

G.W. 220 LBS
