Identificador: 399
Abierta
.png)
Descripción

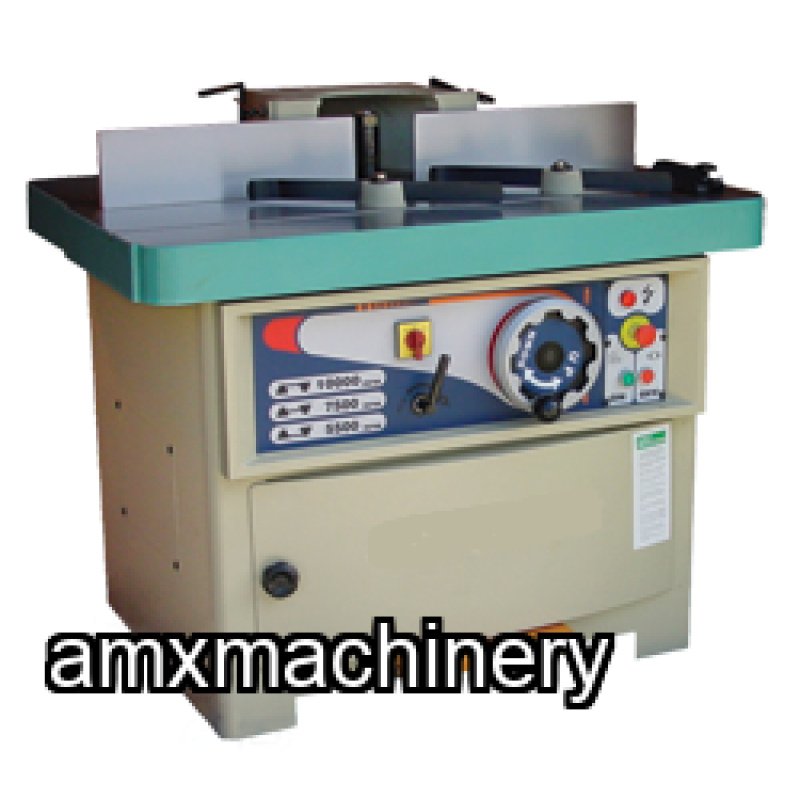

PARTE # 2EX-ET-150 - TROMPO - MOTOR 7.5 HP - CON FLECHA DE 1-1/4"
PARTE # 2EX-ET-160 - TROMPO - MOTOR 10 HP - CON FLECHA DE 1-1/4”
Nuevo con garantia
Engineered for continuous industrial use, shapers are great machines for demanding applications. The large work area, reversable spindle, optional digital readout, and powerful motors ensure clean, safe and efficient production.
3 spindle speeds: 5.5, 7.5 and 10K RPM
Reversable
Magnetic starter
Precision fence assembly
Table inserts
Front access panel
Spindle lock
Micro adjust left and right positioning
Spindle brake
Emergency stop
Optional digital readout
SPECIFICATIONS
Horsepower: 7.5HP
Voltage: 230V or 460V
Phase(s): 3PH
Main Motor: 7.5 HP
Spindle RPMs: 5.5 / 7.5 / 10K
CFM Requirements: 750
Table Size: 46" x 34"
Max Diameter: 12-3/8"
Spindle Travel: 6-1/2"
Included Spindles: 1-1/4 Fixed
1-1/4" Spindle: 5-13/16"
Interchangeable Spindles: No
Amps: 18
Weight: 1250 lbs
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
SIERRA CINTA CENTAURO 31"
PARTE # 1RU-CE-R800-3 - SIERRA CINTA CENTAURO 800MMDiametro de las volantes 800 mm Inclinacion de la mesa 15grados Fuerza del motor 15 H.P. 3 fasesPeso neto aproximado 700 Kgs. Altura maxima de la guia 400 mm. Distancia entre sierra y columna 780 mm Ancho maximo de sierra 80 mm. Largo maximo de sierra 5530 Velocidad de la banda de sierra 28.5 mts/segundo Altura de la mesa desde el piso 950 mm Dimensiones de la mesa 1060 x 800 mm.
AMXmachinery
MEDIDOR DE HUMEDAD PARA MADERA – SIN PINS - LIGNOMAT – LIGNO-SCANNER D
PARTE: 2LI-D - MEDIDOR DE HUMEDAD PARA MADERA – SIN PINS - LIGNOMAT – LIGNO-SCANNER DNuevo con garantíaMeasuringRange5-60% dependent upon species setting*Display0.1% resolution for the entire range.SpeciesCorrections71 wood group settings, or simply use specific gravity of the wood, between 0.3 and 1.0 (setting 30-100)GypsumScaleN/AReferenceScale0-99 for non-wood building materialsCalibrationStable calibration not affected by ambient temperature. Calibration is internally checked and auto...
6,900.00 MXN
AMXmachinery
PARTE: 12295 - LIJADORA DE BANDA ANCHA - 52” ANCHO - 2 LIJAS - TIMESAVERS
PARTE: 12295 - LIJADORA DE BANDA ANCHA - 52”
ANCHO - 2 LIJAS - TIMESAVERS
USADA BUENAS CONDICIONES
460/60/3 electrics
Standard
Specifications:
1st head,
75 HP, 230/460/60/3 hard rubber contact drum
2nd head,
60 HP, 230/460/60/3 hard rubber contact drum
Weighs 16,000 lbs.
AMXmachinery
PARTE: 12545 - LINEA DE PINTURA UV - SUPERFICI MINI PLUS
PARTE: 12545 - LINEA DE
PINTURA UV - SUPERFICI MINI PLUS
USADA -
MUY BUIENAS CONDICIONESPassline Height: 900 mm
Operating side: RH, as viewed from inlet of line, LH available as a special order.
Workpiece Dimensions (Approx.):
Min. - max. length: 300 mm - 4880 mm (12" - 16')
Min. - max. width: 25 mm - 1300 mm (1" - 51”)
Min. - max. thickness: 3 mm - 90 mm (1/8" - 3-1/2")
Max. weight: 3# per sq. ft
Speeds:
Mechanical speed: 1-3 m/min
Avg. production speed: 2 m/min
Connections:
...
