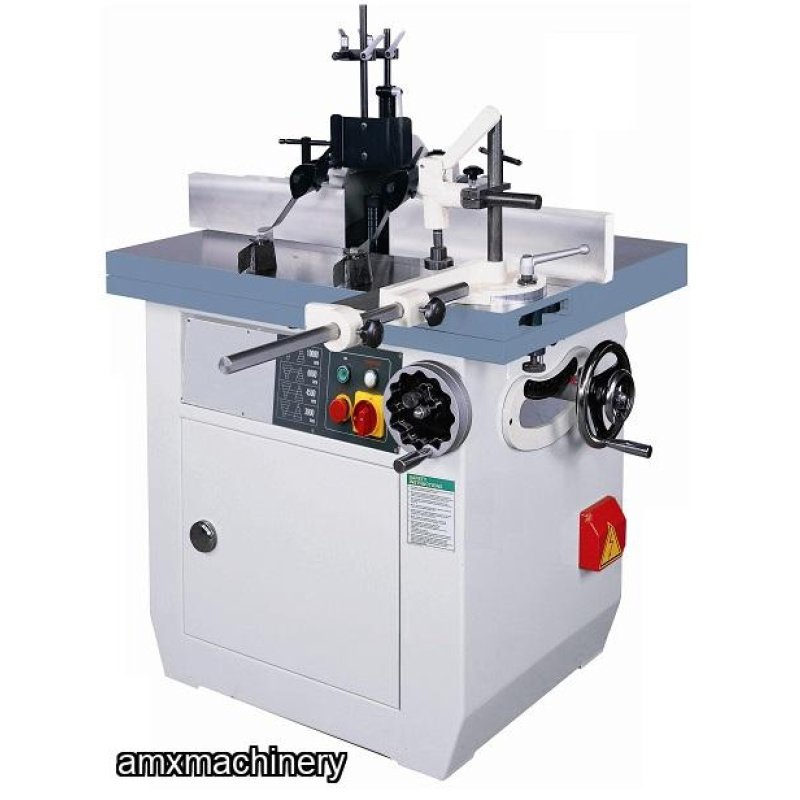

PART # 2TA-SP-735S - TROMPO CON MESA DESLIZABLE
New with warranty
Features:
Designed for heavy industrial work.
Industrial full power motor for maximum cutting capacity.
Quick-change spindles.
Forward / reverse switch.
Individual two side micro adjustable fence.
Precision ground large cast iron table.
Three spindle speeds for versatile cutting.
Industrial full power motor for heavy cutting capacity.
Sealed long-life ball bearing.
Metal 4” dust hood.
Heavy sheet metal cabinet base for durability usage.
Magnetic control for overload protection.
SPECIFICATION | LP2-SP-732 | LP2-SP-735 | LP2-SP-742 |
Table Sizes | 28" x 32" | 27-1/2" x 35-1/2" | 31-1/2" x 41-1/2" |
Fence Sizes | 4-1/3" x 12" | 5" x 13-1/2" | |
Height of Working Table | 33-1/2" | ||
Table Insert Diameter | 3", 7" | 6-1/2", 8-1/2" | |
Spindle Dimension | |||
Diameter | 1", 1-1/4" | ||
Length under Nut | 4" | 4-1/2" | |
Stroke | 4" | 5" | |
Max. Height under Table | 4-1/4" | ||
Speed (RPM) | 6000/ 8000/ 10000 | 3000/ 4500/ 7500/ 10000 | |
Motor | 5 HP, 3 PH | 7-1/2 HP, 3 PH | |
N.W. | 585 LBS | 690 LBS | 850 LBS |
G.W. | 630 LBS | 860 LBS | 900 LBS |
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
MOULDER CUTTER HEADS - LENGHTS 2.25”, 3”, 4”, 5”, 6” - BORE 1-13/16” - BORE 2-1/8"
PART: 12305-E - MOULDER CUTTER HEADS - LENGHTS 2.25”, 3”, 4”, 5”,
6” - BORE 1-13/16” - BORE 2-1/8"WITHOUT BUSHING - BORE 2-1/8"
USED - VERY GOOD CONDITIONS
North American
Gladu hydro-lock
6 wing
20 degrees
Interior diameter (bore): 1-13/16”
External diameter: 6” (150 mm)
Lenght 2-1/4” (57 mm)
Lenght 3” (75 mm)
Lenght 4” (102 mm)
Lenght 5” (130 mm)
Lenght 6” (152 mm)
AMXmachinery
TALADRO MULTIPLE - 13 TALADROS – VERTICAL – MANUAL
PARTE
# RT-R113 – TALADRO MULTIPLE - 13 TALADROS – VERTICAL – MANUAL
Nueva con garantía
Fotos y Características:
3/4
HP Spindle Drive Motor, TEFC
60″
Back Fence Assembly
(1)
13-Vertical Gear Driven Spindle Rows
10mm
Bored Collets
(7)
Right Hand, (6) Left Hand
(2)
Index Pins
20″
X 48″ Work Table Surface
Wired
1-Phase 120 Volt, 60 Hz.
Manually
Actuated Boring Cycle
Tooling
Not Included
Crated
Dimensions: 45″ X 80″ X 44″ and 508...
AMXmachinery
ROUTER PIN INVERTIDO - CR ONSRUD 36210
PARTE: 12127 - ROUTER PIN INVERTIDO - CR ONSRUD 36210
USADO – EN BUENAS
CONDICIONES – LIMPIADO Y REVISADO
230V, 3 PH, 60 CY
10 HP motor, belt driven to spindle
25,000 RPM spindle speed
Pneumatic spindle and guide pin movement via foot
pedal
3" spindle travel
43" x 31" acrylic topped table
36" throat depth
3-Position adjustable depth stop, infinitely
adjustable
Maximum workpiece/template height is 4"
3/4" max. Chucking capacity
Magnetic starter with over...
AMXmachinery
PARTE: 2EB-KSF-24303 - ARMADORA DE MARCOS – KSF - 24303
PARTE: 2EB-KSF-24303 - ARMADORA DE MARCOS – KSF - 24303Nueva con garantiaFrame/moulding width range: 6-150 mm (0.24"-5.9")Frame/moulding thickness range: 6-100 mm (0.24"-3.94")V-nail sizes: 7,10,12,15mmWeight:56kgPackage Dimension : 43.3" (L) x 21.6" (W) x 23.2" (H)Packing: wooden packingFeaturesAny hardness of wood can easily nail cornersNo power required, no air pressure required, This machine removes most of the electronic components, which also greatly reduces the damage rate of this machi...
