Identificador: 1810
Abierta
Descripción
PARTE: 2CK-DC40 - ALIMENTADOR - 4 RUEDAS - VELOCIDAD VARIABLE
Is a safe and powerful feeding unit for shapers, table saws, and more. The rubber feed wheels grip the workpiece firmly and feed it at a constant speed to produce flawlessly finished pieces. The DC brushless servo motor with electronic variable speed adjustment allows the operator full control for setting the optimum feed speed according to the specific job. The universal stand allows for quick positional adjustment from a horizontal to vertical positioning and everything in between.
- High efficiency DC brushless servo motor
- High efficiency = more power, more torque!
- Saves +50% power output over other feeders of the same size
- Electronic variable feed speed adjustment for optimum cut quality
KEY ADVANTAGES
- 2/3 HP DC Brushless Servo Motor with electronic speed display
- SG13 heavy duty universal stand for fast setup
- (4) rubber feed rollers
- Variable speed 2-22 M/min (7-72 FPM)
- Forward/reverse feed
- Optional Dual Rollers for saw or cutter clearance
|
|
INCH |
METRIC |
|
Roller Size |
4.72″ x 2.36″ (Standard) |
Φ120 x 60 mm
(Standard) |
|
Rollers |
4 |
4 |
|
Feeding Speed |
7-72 FPM |
2-22 m/min |
|
Horsepower |
2/3 HP |
500W |
|
Packing Size: Body |
27″ × 12 ¾” × 12-3/8″ |
685 x 326 x 316 mm |
|
Packing Size: Stand |
30-3/8″ x 12-5/8″ x 11 ½” |
770 x 320 x 290 mm |
|
Machine Weight |
57 + 66 lbs = 123 lbs total |
26 + 30 kgs = 56 kgs total |
|
Shipping Weight |
62 + 72 lbs = 134 lbs total |
28 + 32 kgs = 60 kgs total |
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express, Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
-500x500.png)
AMXmachinery1
MESA CORRIENTE DESCENDENTE - 1 HP
PARTE:2CL-FT2200 - MESA CORRIENTE DESCENDENTE - 1 HP Is ergonomic, energy efficient, and easy to maintain. Rubber anti-slip rings and removable location stops ensure the material does not move during the sanding process, and the dual filters safely trap sawdust particles. Rear suction boards and side deflector plates are removable for sanding larger surface materials. Is perfect for light to medium duty woodworking applications such as sanding and finishing.84” x 24” table surfacePerfect s...
-500x500.png)
AMXmachinery1
BARRENADORA HORIZONTAL - 4 HUSILLOS
PARTE: 2RI-R8043 - BARRENADORA HORIZONTAL - 4 HUSILLOSDescription:Was designed for heavy-duty production boring applications. Spindles are designed with multiple bearings to avoid spindle drift and fatigue. Spindle centers are easily adjusted to accommodate multiple spindle boring patterns. The fixed table work height easily accommodates electronic and manual material stop systems and tables. The spindle height above the table is adjusted from the front of the machine for easy operator access....
-500x500.jpg)
AMXmachinery1
PARTE: 3AM-GS-50/60 - SIERRA CINTA PARA METAL - H-BEAM TUBO DE ACERO
PARTE: 3AM-GS-50/60 - SIERRA CINTA PARA METAL - H-BEAM TUBO DE ACEROSaw Band Tensioning Method: ManualCore Components: Gearbox, Gear, Bearing, Engine, MotorApplicable Industry: Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Shops, OtherBlade Tension: ManualVice Clamping: Hydraulic with ManualCutting Feed: Hydraulic steplessMax. Cutting Capacity(mm): Round:300mm, sqaure:220*350MMMain Motor(kw): 4Coolant Motor (kw): 0.75Hy...
-500x500.png)
AMXmachinery1

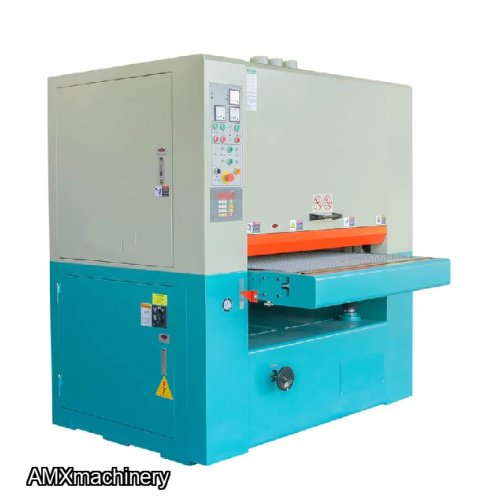

LIJADORA DE BANDA ANCHA - 2 BANDAS - 37" ANCHO
