Descripción

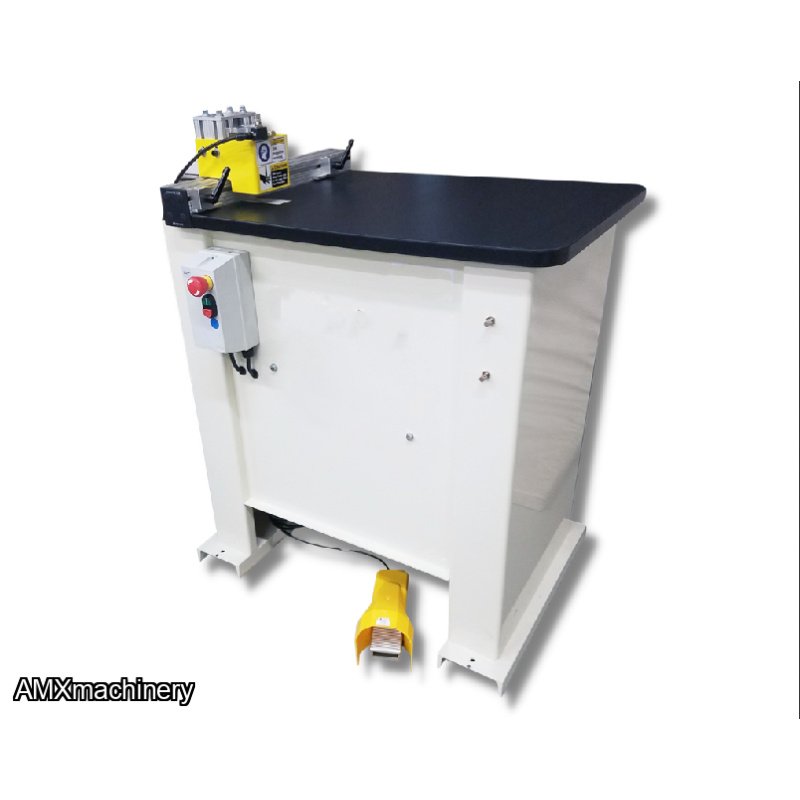

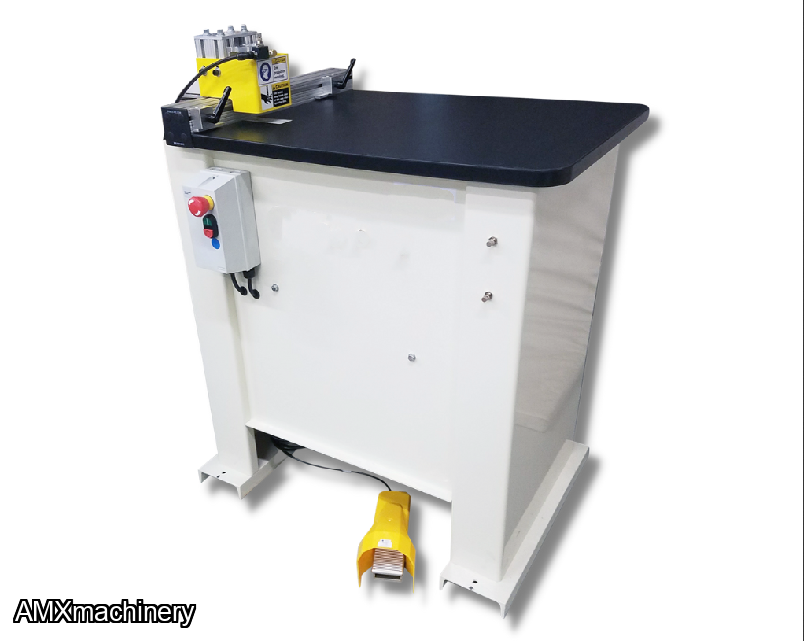

PARTE: 2RI-R200T - ARMADORA DE BASTIDORES - HUSILLO UNICO

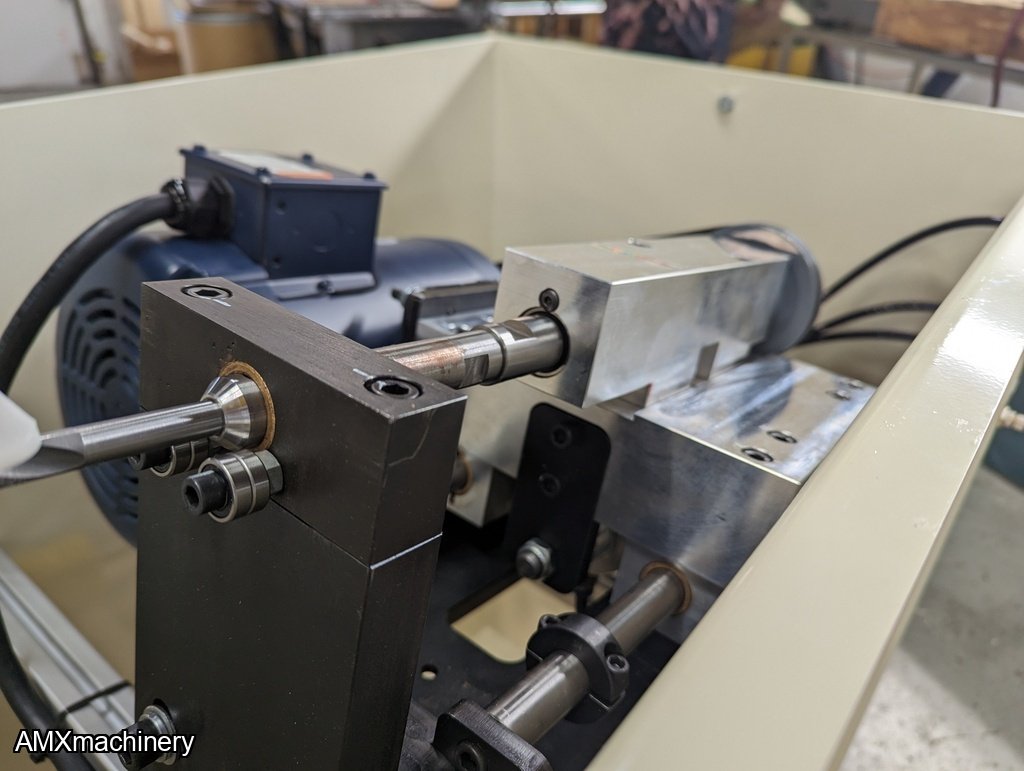

Designed specifically for pocket joinery face frame construction. This machine, boasting a 14-degree single spindle, a 6,100 RPM spindle speed, and a 1.5 HP spindle drive motor, delivers the most efficient and economical method of frame joinery. Notably, it can provide up to a 50% reduction in frame construction time. By eliminating dowel boring, dowel and glue insertion, clamping time, and joint misalignment, ensures flush and tight joint construction across all types of wood. Its design allows for frame disassembly and joint repositioning without the loss of material, significantly increasing system productivity. Interestingly, the design of the pocket hole drill also negates the need for glue application to the joint, further simplifying the construction process. This highly effective machine is operated via a foot-activated boring cycle, making it a standout choice in modern woodworking technology.
Standard Features:
- 1.5 HP Spindle Drive Motor, TEFC
- Foot Actuated Boring Cycle
- 14 Degree Single Spindle
- 6,100 RPM Spindle Speed
- 24" x 30" Table Area
- Adjustable Fence with (2) Stops
- Tooling Included
Technical Data and Specifications:
- Electrical: 110/120V, 60Hz, 20A
- Air: 2 CFM at 80 – 100 PSI
- Work Height: 38.25"
- Footprint: 34.5" x 25.25"
