ARMADORA DE CAJONES

Is designed to both notch and drill drawer boxes to install undermount soft-close drawer slides.  The operation of the machine is simple with a self-indexing drilling unit that’s determined by the position of the drawer for either left or right notching.  With a cycle time of approximately 10 seconds per drawer, you can achieve a high throughput and save time for other important tasks.

• High production capacity of up to 220 drawers machined per hour.
• 57mm (2 ¼”) wide cutter head allows you to machine notches for a wide range of undermount drawer slides without needing to change heads or machine the component twice.

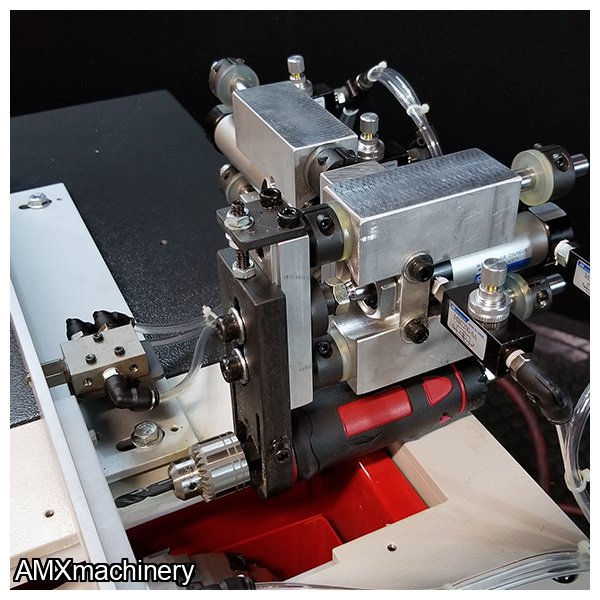

• Self-indexing drill unit for left or right drawer notching.

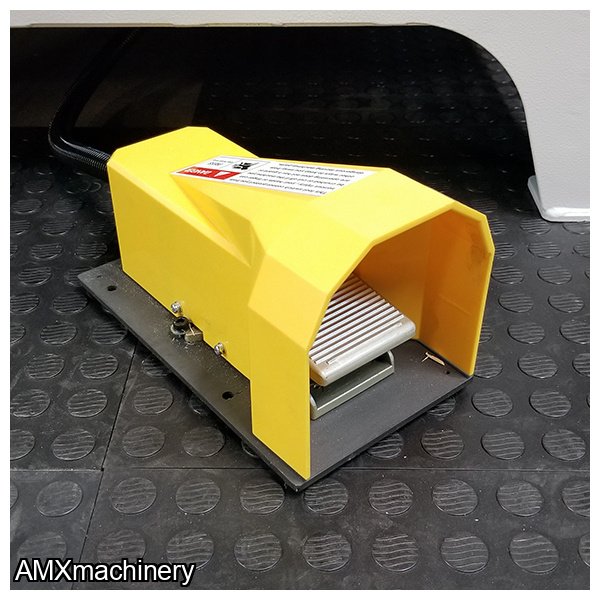

• Convenient foot pedal operation lets operator efficiently load and unload drawers for higher output.

• Pneumatic cutter & drill stroke by foot pedal operation.
• Cutter stroke and drill speed are adjustable for optimum finish results
• Drill will automatically position for both left and right drawer notches by activating a switch in the fence
• Machine will not cycle unless a drawer is up against the switch for safe operation

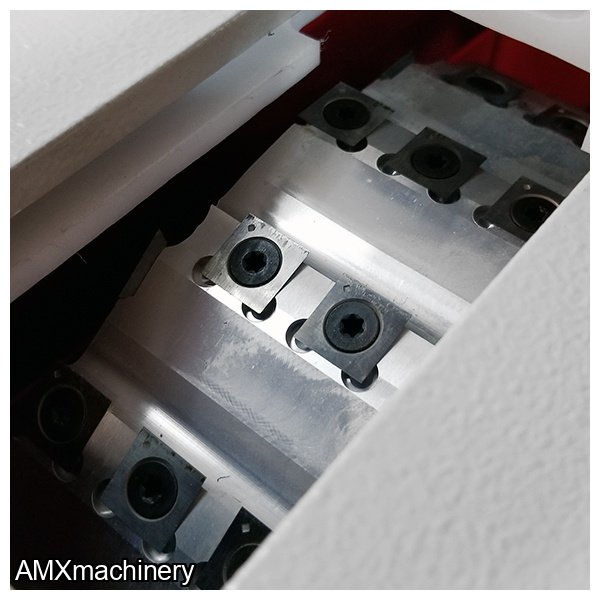

• Insert knife cutterhead with solid carbide inserts for optimum finish results and long tool life
• 2 ¼” (57mm) wide cutter allows for a wide range of undermount slides
• Comes with insert cutterhead with inserts and ¼” (6.3mm) solid carbide drill bit.
• Capable of notching up to 220 drawer boxes (both left and right) per hour.
