Identificador: 15
Abierta
Descripción

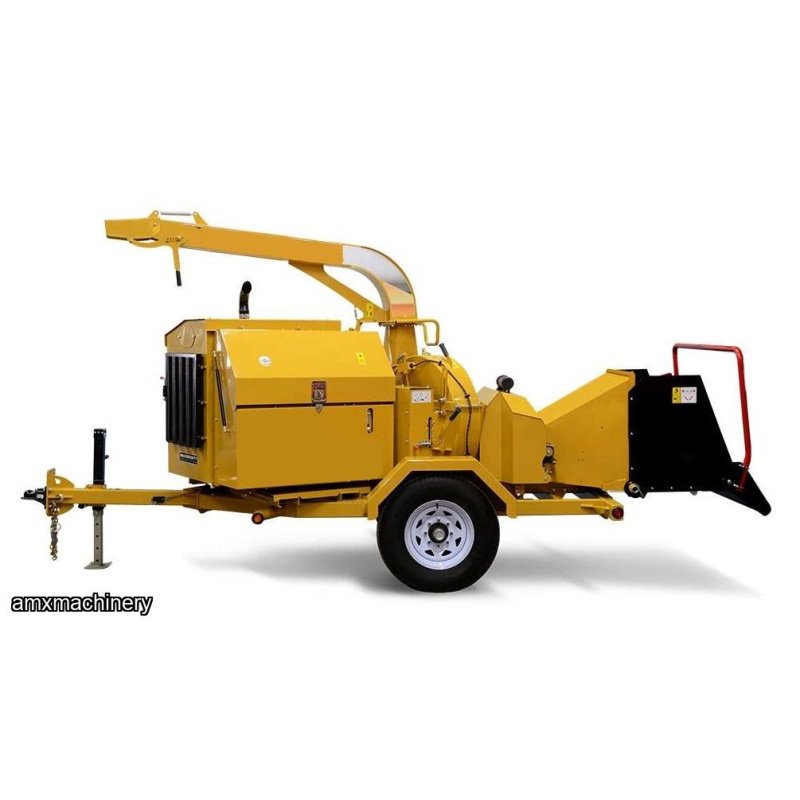

PARTE # 2WA-CR100 – ASTILLADORA – MOTOR DIESEL 85 HP, CAPACIDAD 10” DIAMETRO
Video de la maquina funcionando: Video 1
10" x 17" Opening
Hand Clutch
Dual Active Rollers
Intellifeed
Kubota 3620cc Turbo Diesel Engine
Rotor Disc
Angled Rotor
Ledger Adjustment

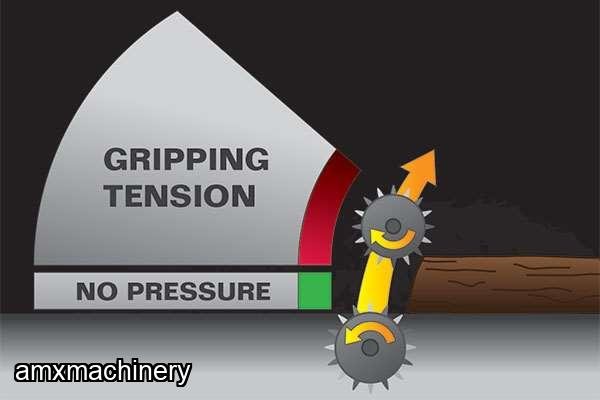

Easy Start Tension Relief
Safety / Control Bar
360° Swivel Exit Chute
Easy Access Air Filter
Banded V-Belts
Highway Tires
Electric Brakes
Torflex Suspension Axles
Signal Lights
Storage Box
Control Panel
Live Hydraulics
Enclosed Fuel Caps
DRIVE SYSTEM: | Rotor: Quad Belt, Manual Clutch - Feed Rollers: Hydraulic | ENGINE: | Kubota V3600-T-E3 3620 cc (85HP) Turbo Diesel |
CHIPPER CAPACITY: | 10" Diameter (Max. 17" Slab) | CHIPPER HOUSING OPENING: | 10" x 17" |
ROTOR SIZE: | 36" Diameter x 1.25" Thick | NUMBER OF ROTOR KNIVES: | 4 Segmented Knives |
KNIFE TYPE: | Hardened Tool Steel (Rockwell - HRC: 56-58) | ROTOR WEIGHT: | 425 lbs |
DIMENSIONS LXWXH: | 196" x 72" x 100" (Open) | HOPPER OPENING: | 30" x 42" |
DISCHARGE HOOD HEIGHT: | 100" | RATED RPM: | 1400 RPM (Rotor) @ 2600 RPM (Engine) |
WEIGHT: | 5000 lbs Approx. | TIRE SIZE: | ST235-80R16 |
Video maquina funcionado:
