Identificador: 40
Abierta
Descripción

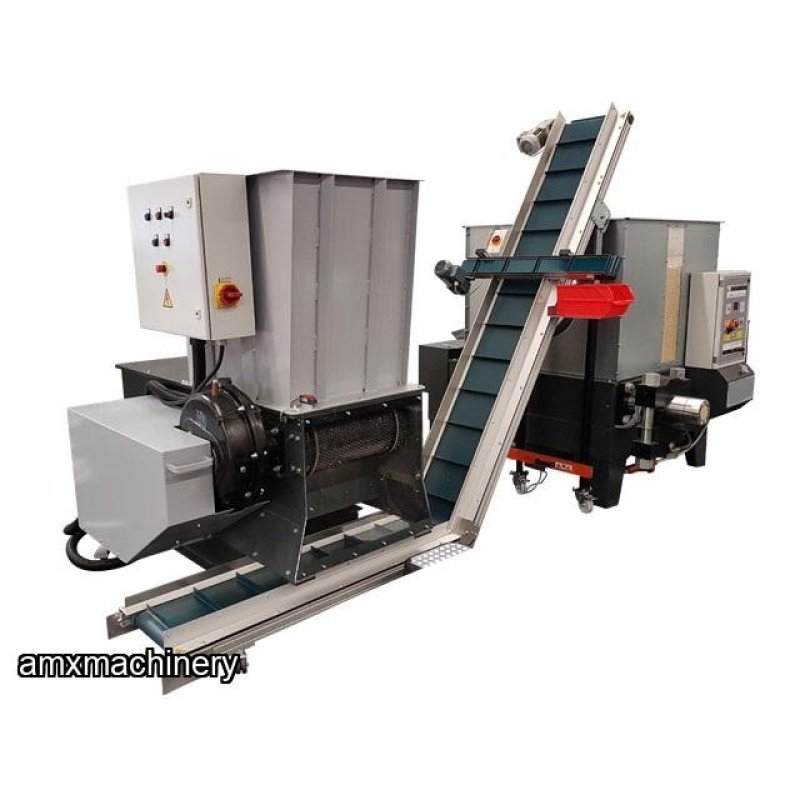

PARTE # 4MU-MRZ530 – ASTILLADORA – MOTOR 15 KW (20 HP) – ALIMENTADOR 0.4 M3
PARTE # 4MU-MRZ630 – ASTILLADORA – MOTOR 18.5 KW (25 HP) – ALIMENTADOR 0.6 M3
Flete incluido a las principales ciudades de México
Nueva con garantía
Type | Motor kW | Rotor Diametro mm | Navajas mm | Navajas # piezas | Deposito Volumen m3 |
4MU-MRZ530 | 15 | 260 | 30 x 30 | 24 | 0.4 |
4MU-MRZ630 | 18.5 | 260 | 30 x 30 | 30 | 0.6 |
4MU-MRZ830-2 | 22 | 360 | 35 x 35 | 40 | 1.0 |
4MU-MRZ830-2 | 30 | 360 | 35 x 35 | 40 | 1.0 |
4MU-MRZ830-2 | 37 | 360 | 25 x 35 | 40 | 1.0 |
Performance: 1– 5 rm/h (i.e. depending on screen hole size, hopper fillings per hour)
Designed to shred all kinds of waste material, including hard and soft woods, chipboards, OSB and plywood panels, as well as construction timbers. Paper, cardboards, and other materials (no tyres) can also be processed, but only with permission of the manufacturer. The sturdy steel construction guarantees constant quality in continuous operation. Fitted with a slowly rotating profiled solid steel rotor (Ø 260 or 360mm) which is mounted on the sturdy machine base. The knives are available in various designs for all kinds of material. The knives feature a low wear and can rotate several times before they have to be replaced.
The screen is made of a heavy welded construction. The screen size defines the size of the chips. Screens with different hole sizes for all kinds of material are available. The rotor is driven by a V-belt drive and a spur gear with torque support. The feeding works either automatically or manually. The material to be shredded is filled into the hopper. The Siemens PLC determines the optimal feeding rate depending on the power input of the main engine. Thereby the highest possible throughput can be realised. After reaching the front position the hydraulic slider drives back with fast hydraulic into starting position and the cycle restarts. The shredding occurs in-between the rotor and the fixed counter-knife. The slider can be fitted with wipers in order to prevent material from entering into drawer and machine housing. The chips can be delivered out of the machine by means of suction, conveyor belt or conveyor screw. Once the material is shredded completely, the machine turns off automatically. Fitted with a dust-tight control cabinet for the SPS control. The machines are CE-certified.
As standard grinders include:
Fast hydraulic
Profile rotor
Second row of knives
Control cabinet with Siemens PLC
Automatic Star/Delta Switch
Automatic stop when hopper is empty
Removable exhausting channel
70 - 100 Rotor turnings for higher throughput
Cycle control in order to prevent idling
Performance-enhancing pacing of hydraulic sliders
