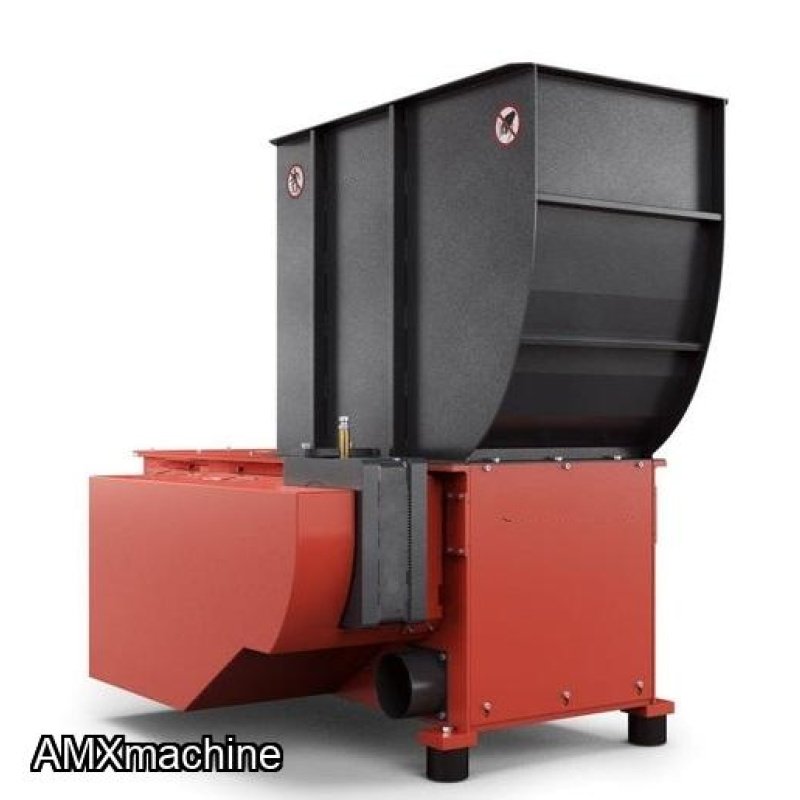

ASTILLADORA DE MADERA - 35 HP - ABERTURA SUPERIOR 39.4” X 49.2”

PARTE: 2WE-WL8 - ASTILLADORA DE MADERA - 35 HP - ABERTURA SUPERIOR 39.4” X 49.2”

NUEVA CON GARANTIA

APLICACION: ASTILLAR MADERA Y BRIQUETEAR

MATERIAL: MADERAS SUAVES, PINO PONDEROSA

VOLUMEN REQUERIDO: 500-1000 kg/hr

CAPACIDAD PRODUCCION: 700-900 lbs/hr (300-400 kg/hr)

ALIMENTACION: SUPERIOR

DESCARGA: FONDO ABIERTO

PESO APROXIMADO: 4,400 lbs (2,000 kg)

ENERGIA: 35 HP (26.4 kW), 460 V / 60 Hz / 3 FASES

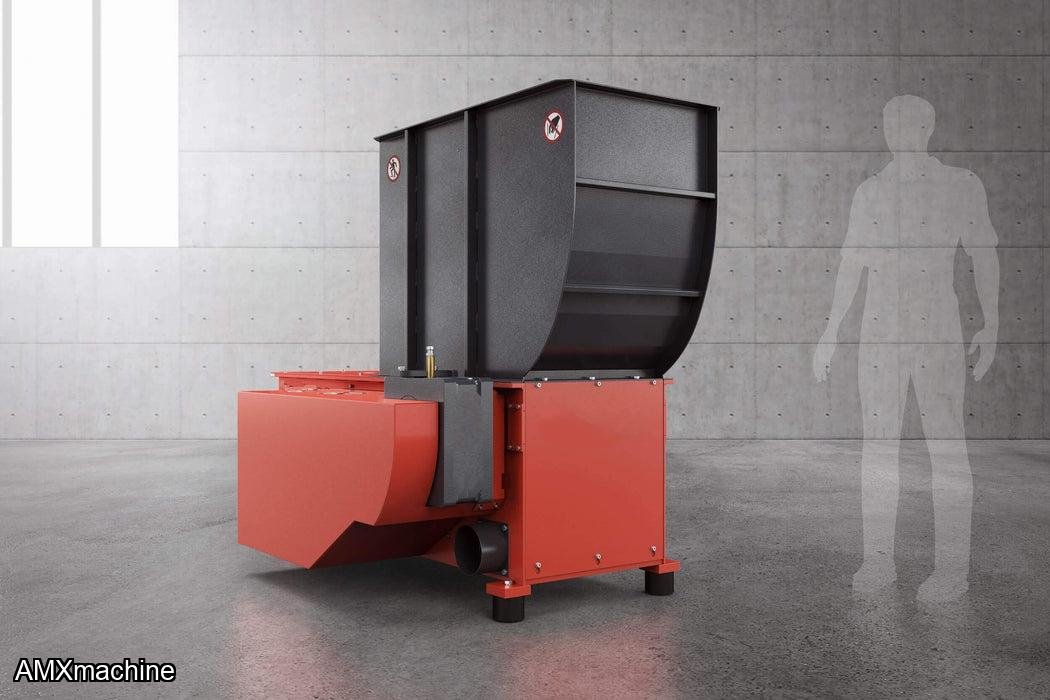

- Hopper Opening: 39.4" x 49.2" (1,000 mm x 1,250 mm)

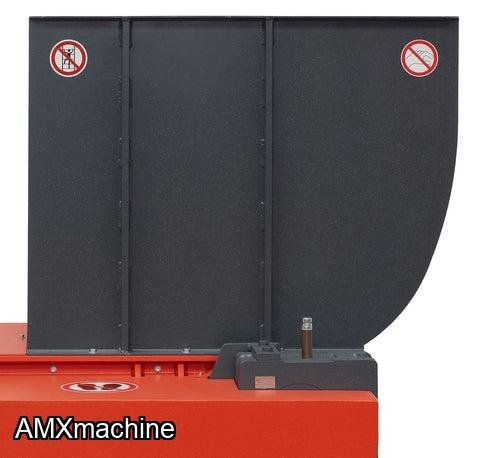

- Hopper Configuration: 3 straight sides with curved front wall

- Machine Opening: 39.4" x 39.4" (1000 x 1000 mm)

- Hopper Volume: 1.47 yds³ (1.1 m³)

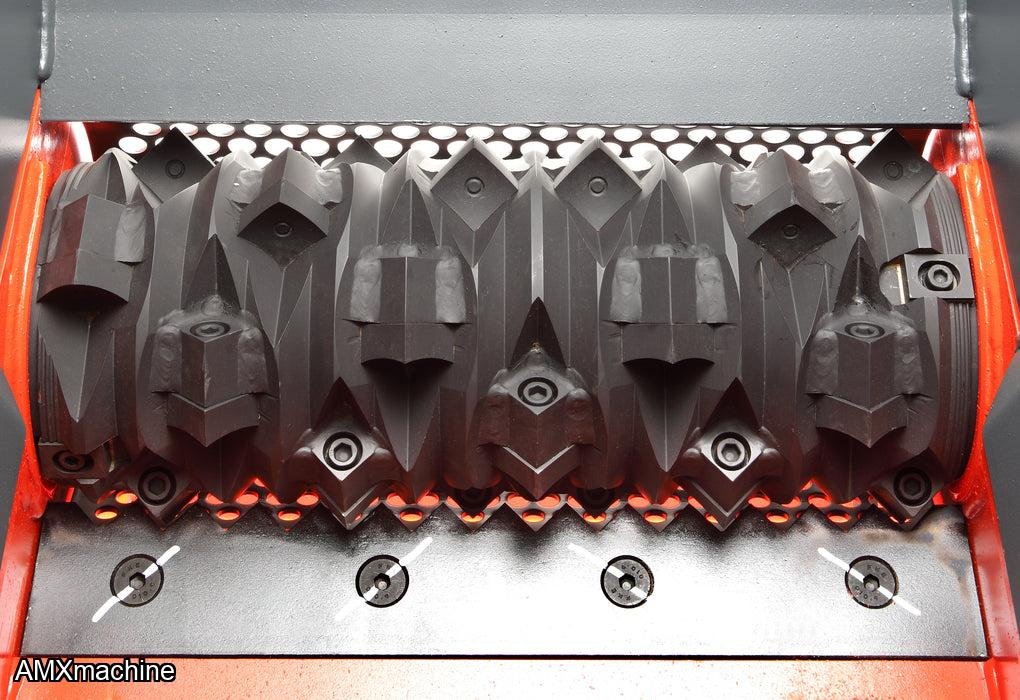

- Rotor: "V-Rotor"

- Rotor Diameter: 10" (252 mm)

- Rotor Length: 39.4" (1000 mm)

- Rotor Speed: 80-120 RPM*

- Type of Cutter: 4X indexable concave shape

- Size of Cutter: 1.57" x 1.57" (40 x 40 mm)

- # of Cutters: 54

- Extraction Requirements: 1900 cfm, 8" (200 mm) diameter

- Weight: App 4,400 lbs (2,000 kg)

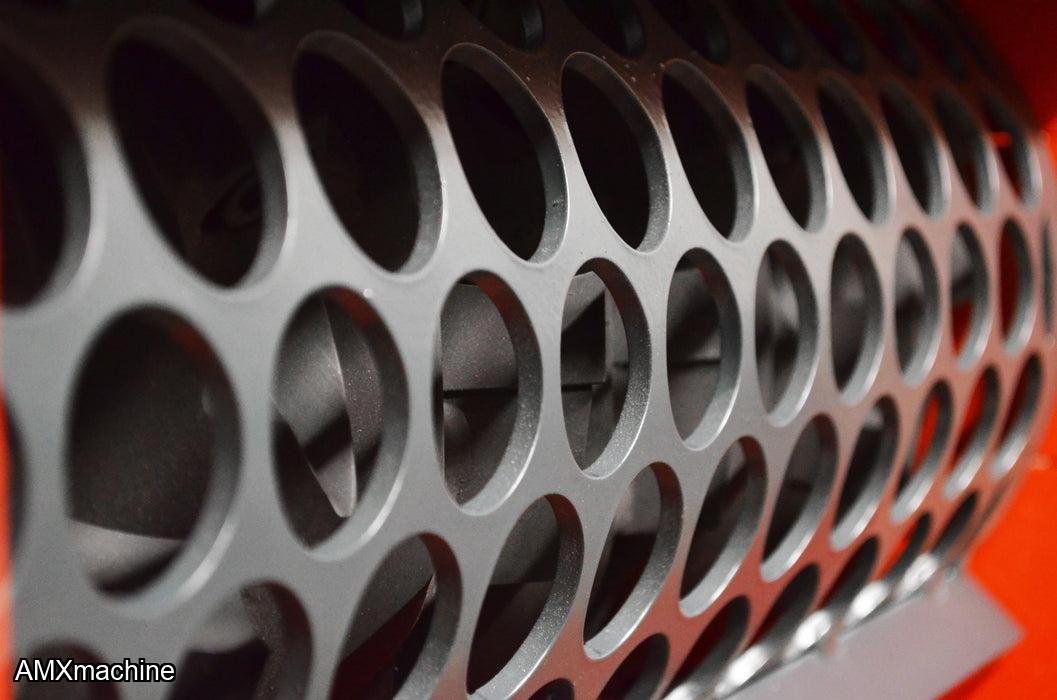

Screen: 12/15mm (5/8") Baffled

Power: 460 V / 60 Hz / 3 Phase

Included:

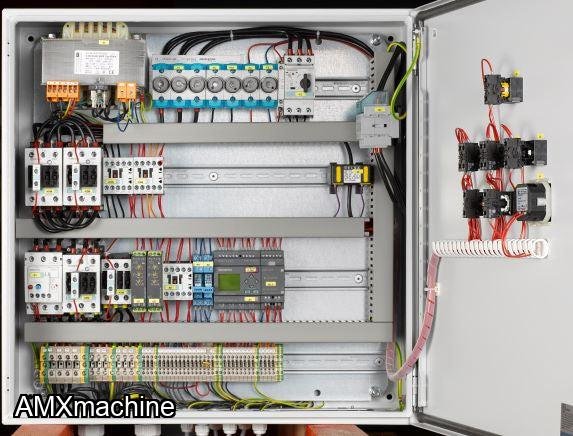

- Control Panel with Star Delta Starter and 16 ft. Cable Bundle

- Allen Bradley PLC w/ Touch Screen HMI

- Anti Vibration Feet

- V-Rotor

- Two (2) Rows of Rotor Knives

- Reverse Counter

- Fast Hydraulic Ram

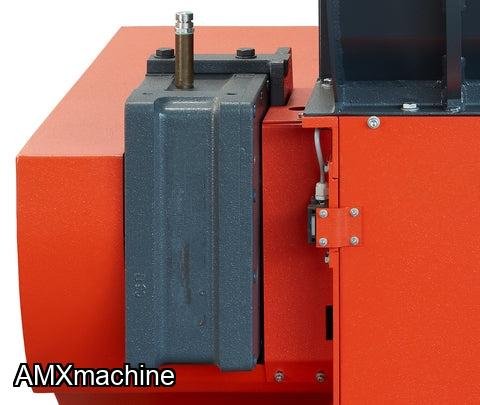

- Gearbox with Limit Switch

- Log Spacer Hopper

- 1-Sided Bottom Serrated Ram
