ID: 1616
Open
Description

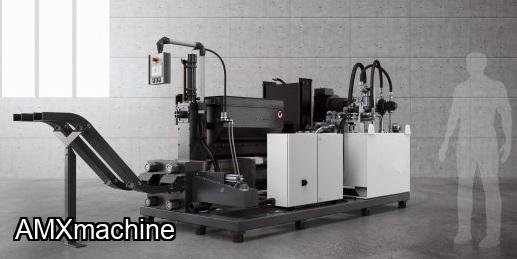

PARTE: 2WE-TH1500M - BRIQUETEADORA - ENTRADA 55” X 55” X 37” - RECTANGULO
NUEVA CON GARANTIA
Capacidad: 800-1,000 lbs/hr
- Hopper Dimensions: 55.1 x 55.1" x 37" (1,400 x 1,400 x 960 mm)
- Hopper Configuration: 4 sides straight
- Hopper Volume: 2.46. yds³ (1.88 m³)
- Main Hydraulic Motor for Pressing Cylinder: 40 hp (30 kW)
- Agitator Motor: 3.0 Hp (2.2 kW)
- Auger Motor: 2.6 hp (1.9 kW)
- Hydraulic Oil Volume: 264 gal (1000 liters)
- Briquette Dimensions: 5.9" x 2.3" (150 x 60mm)
- Machine Weight: 9,300 lbs (4,200 kg)
- Power: 460 V / 60 Hz / 3 Phase
Included:

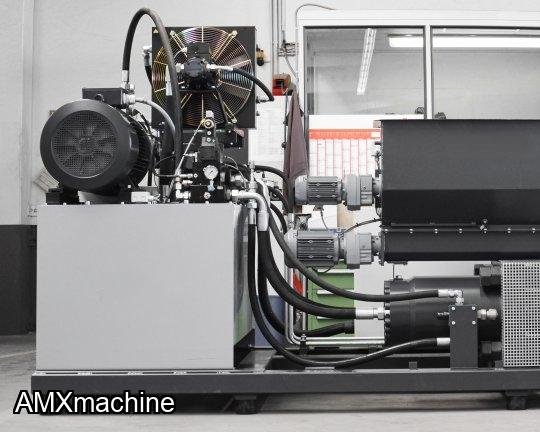

- Hydraulic System
- Hopper Mounted on Frame
- Chrome Plated Clamp
- Automatic Briquette Length Adjustment
- Oil Level Switch
- Anti Vibration Feet

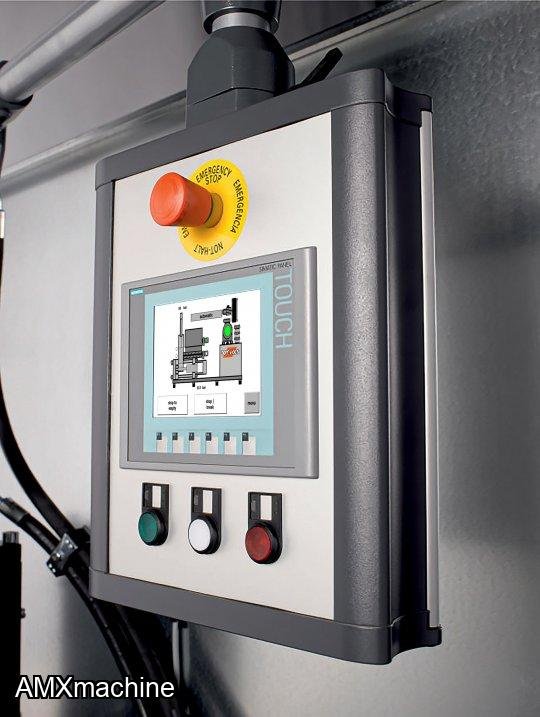

- Control Panel Mounted on Hopper
- Allen Bradley PLC w/ Touch Screen HMI
- Overheating Protection for Hydraulic Oil
- Auto On/Off
- Hydraulic Oil Cooling
- Dust Connection at Pressing Unit
Options:
- Bridge Breakers
- TH1500M Discharge Channels (1 meter height)
