Descripción

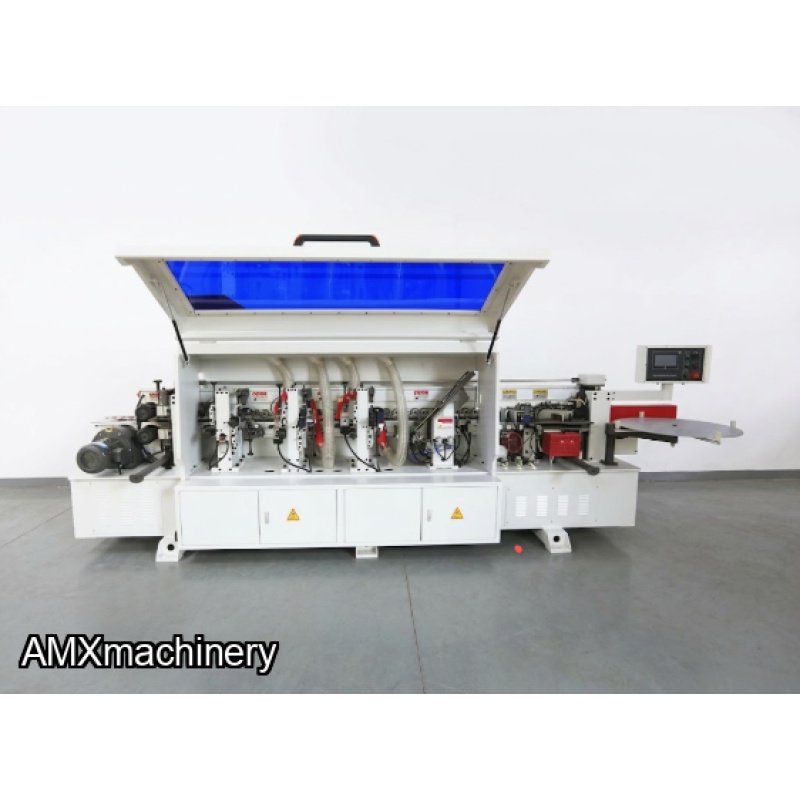

PARTE:3HO-HT450C - CANTEADORA AUTOMATICA
The single-sided edge banding machine is designed for bonding rectangular workpieces with various edge materials: PVC, ABS, acrylic.
Ideal for use by companies producing cabinet furniture (office, kitchen suites, wardrobes, living room and corridor furniture as well as exclusive furniture made to order.
| Model | HT450C |
|---|---|
| Banding Tape Thickness | 0.3-3mm |
| Banding Tape Width | 12-65mm |
| Workpiece Thickness | 10-60mm |
| Workpiece Length | >=80mm |
| Workpiece Width | >=60mm |
| Feeding Speed | 18/20/22mmin |
| Heating Power | 1.8kw |
| Feeding Motor Power | 3.7kw |
| Glue Spreading Motor Power | 0.75kw |
| End Trimming Motor Power | 0.37kw x 2; 12000r/min.200Hz |
| Rough Trimming Motor Power | 0.75kw x 2; 18000r/min.300Hz |
| Fine Trimming Motor Power | 0.75kw x 2; 18000r/min.300Hz |
| Polishing Motor Power | 0.18kw x 2 |
| Workpiece Pressing Beam Lifting Motor Power | 0.37kw |
| Air Pressure | 0.8-1Mpa |
| Overall Dimension | 4500×850×1450mm |
| N.W. | 1900KG |
