Descripción

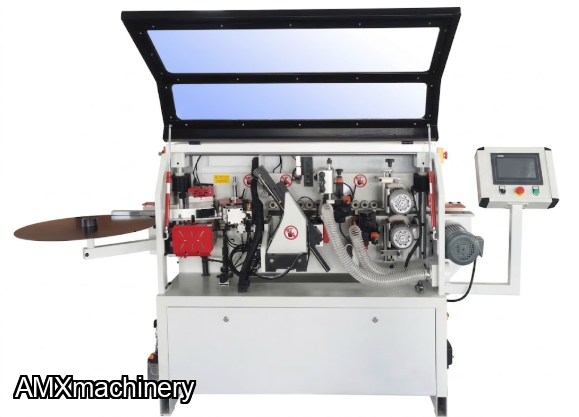

PARTE:3HO-HT306 - CANTEADORA COMPACTA AUTOMATICA
Compact automatic edge bander machine
Banding Tape Thickness | 0.4-2mm |
Banding Tape Width | 12-48mm |
Workpiece Thickness | 10-45mm |
Workpiece Length | >=120mm |
Workpiece Width | >=80mm |
Total Power | 4.36kw |
Feeding Speed | 8m/min |
Air Pressure | 0.5Mpa |
Wood Packing Size | 1900*580*1410mm |
Weight | 540kgs |
