ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO

PARTE: STANDARD-408 – ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO

Nuevo con garantía

Mesa 4 X 8 pies y 5 X 10 pies

Optional:

• Rotary axis / lathe

Inspection services:

1. Machine Gantry X Axis square rails Parallel vertical accuracy 0.001” (0.03mm)
2. Y Axis square rails Parallel vertical accuracy 0.001” (0.03mm)
3. Z Axis ball screw Parallel vertical accuracy 0.001” (0.03mm)
4. Machine Re-position accuracy 0.001” (0.02mm)
5. Machine working accuracy 0.002” (0.05mm)
6. Grating ruler travel accuracy 0.002” (0.05mm)

FEATURES:

• All “servo motor” driving system: All axis are driven by brush-less type, high torque AC servo motors.

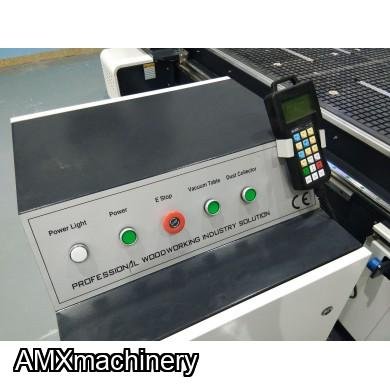

• DSP CNC controller is setup to accept standard G-code programming formats along with on board conversational applications.
• Optional CAD/CAM system can create and edit part programs then send to machine for easy cutting. DXF files can be imported, modified and edited from here to create a G-code.
• Moving gantry construction for space saving.
• The rigid steel frame construction has been stress relieved prior to finish machining to provide repeat-ability and accuracy.

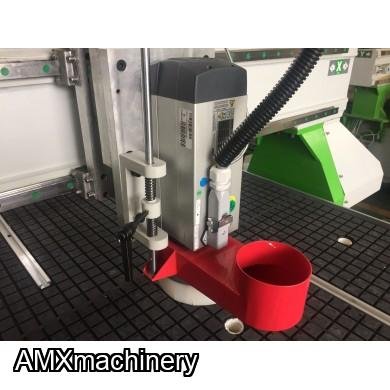

• The HSD spindle uses CP4 DB bearings with a dust-free design. The heavy-duty fan cooling system forces air through the spindle to assist in trouble-free operation.
• Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.

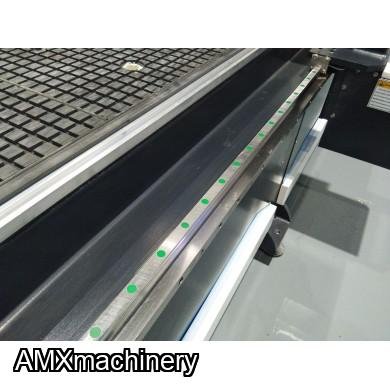

• Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision.

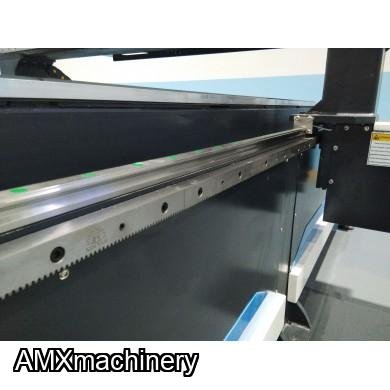

• The X & Y axis are equipped with a precision rack & pinion driving system.
• The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.

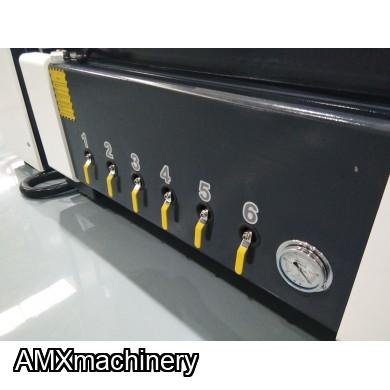

• Special design 4 zone vacuum table surface for powerful hold down.

Machine apply industries:

• Woodworking industries: Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing video game cabinets and panels,computer table and Plate furniture auxiliary processing.
• The advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials advertising the production of decorative products.
• Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
