CENTRO DE CORTE 5 EJES

Productivity, precision, automation.

Is designed for manufacturers of timber-framed houses and TRUSS trusses

who require speed, repeatability and digital integration.

5-axis technology for complex cuts

The cutting unit rotates 360° and tilts ±90°, easily performing:

- Straight cuts

- Angled cuts

- High-precision compound cuts

Perfect for beams and structural components with variable geometries.

Patented handling for maximum speed

The independent dual-belt clamping system ensures:

- Rapid and stable workpiece positioning

- Consistent precision on every cut

- Fastest cycle time in its class

- Reduced labour costs

Advanced software, full integration

- Intuitive 3D interface on an 18.5” touchscreen

- Windows operating system

- Automatic import of BTL files

- Immediate integration with the company network

- Loading of cutting lists remotely or via USB

Perfect for TRUSS digital workflows and industrial production.

Flexible configurations

Is available in two versions:

- Manual loader

- Automatic loaderUTTING TO A HIGHER LEVEL

The automatic unloader is fitted as standard and includes:

- A roller table with partially motorised rollers

- A full-length ejection bar

- A front storage compartment for finished pieces

Processing capacity

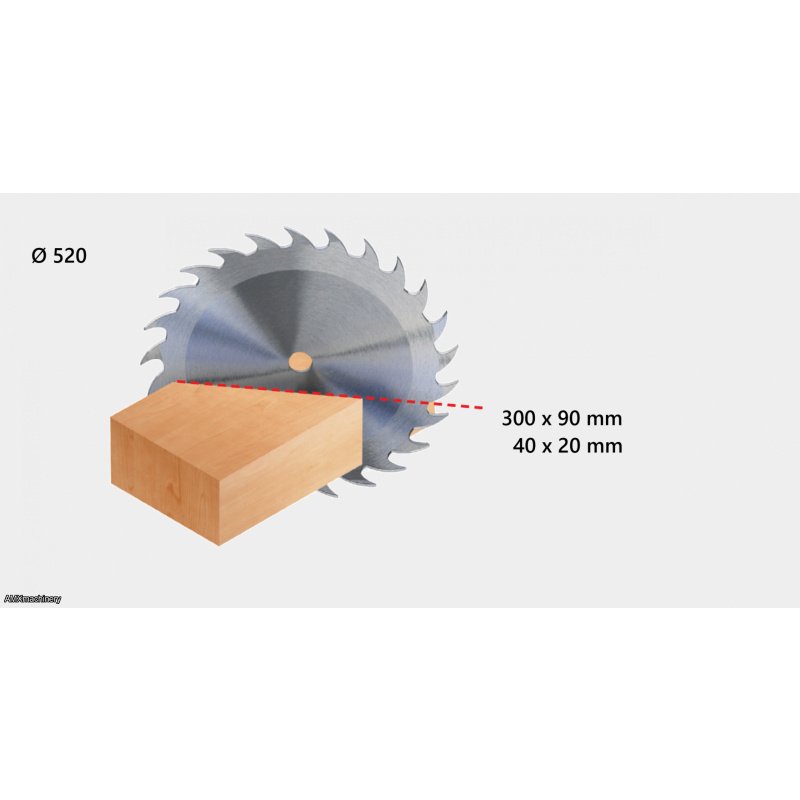

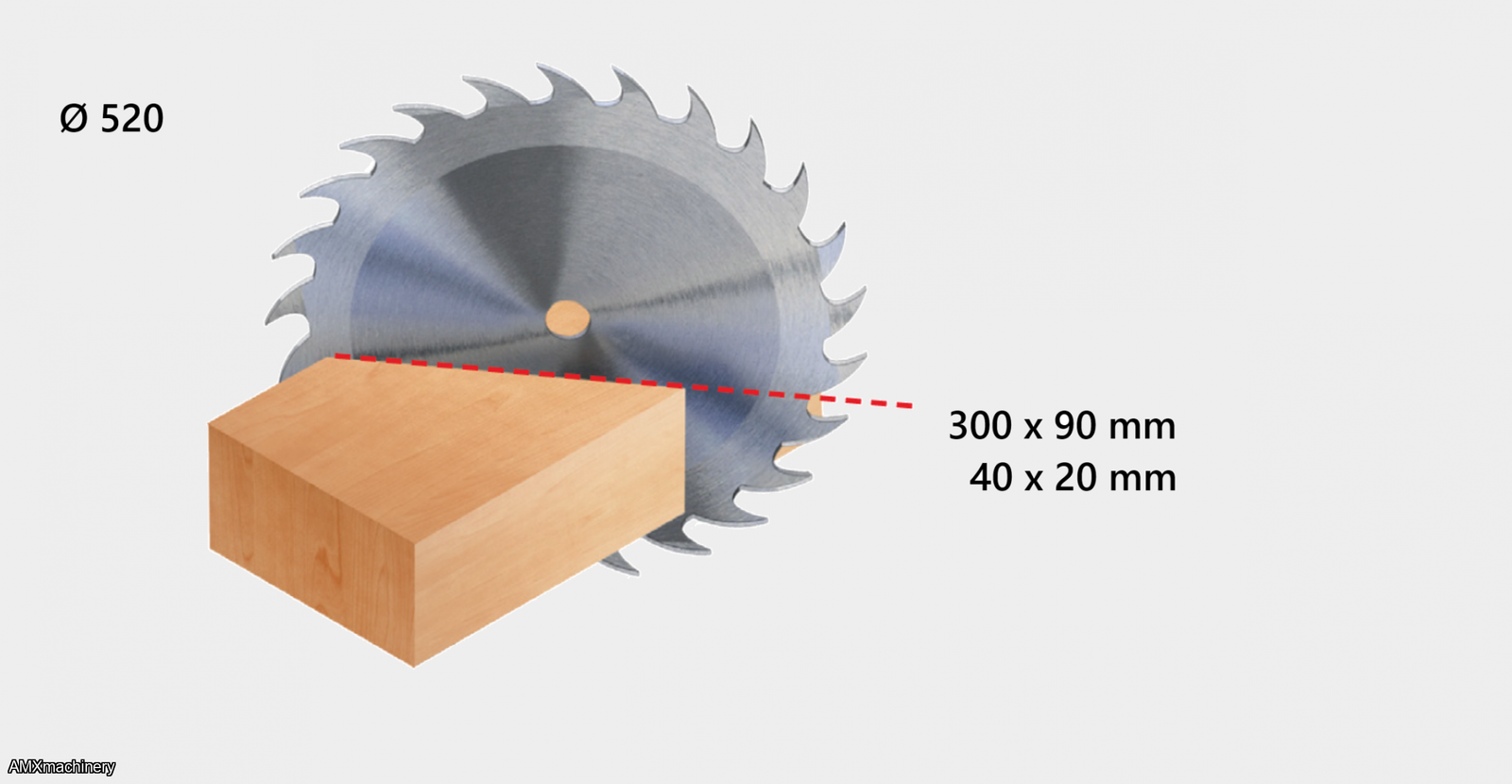

Processes boards of any length with cross-sections ranging from 40×20 mm up to 300×90 mm.

Technical specifications Cutting unit

Blade diameter

• 520 MM

Blade rotation speed

• 3000 rpm

Blade motor power

• kW 3 (HP 4) with Inverter

Blade driving

• Automatic electronically controlled

Working table height

• 930 mm

Minimum crosscutting section

• 40 x 20 mm

Workpiece minimum length

• 1250 mm

Workpiece max length

• 13000 mm

Blade inclination

• -90° +90°

Blade rotation

• 0 - 360°

Conveyor belts max speed (X axis)

• 140 mt / min

Max operating pressure

• 6-8 bar

Extraction outlets

• 3 x Ø120 mm

Net weight

• 2700 kg
