Descripción

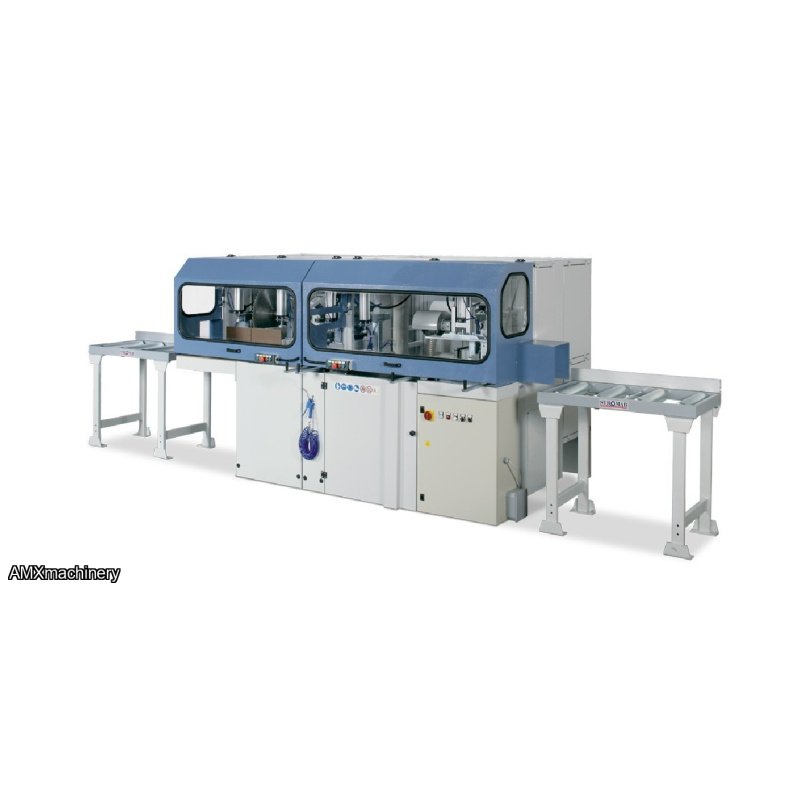

PARTE: 4ST-BIG BLOX - CENTRO DE TRABAJO PARA CASAS DE BLOQUES
Product Description

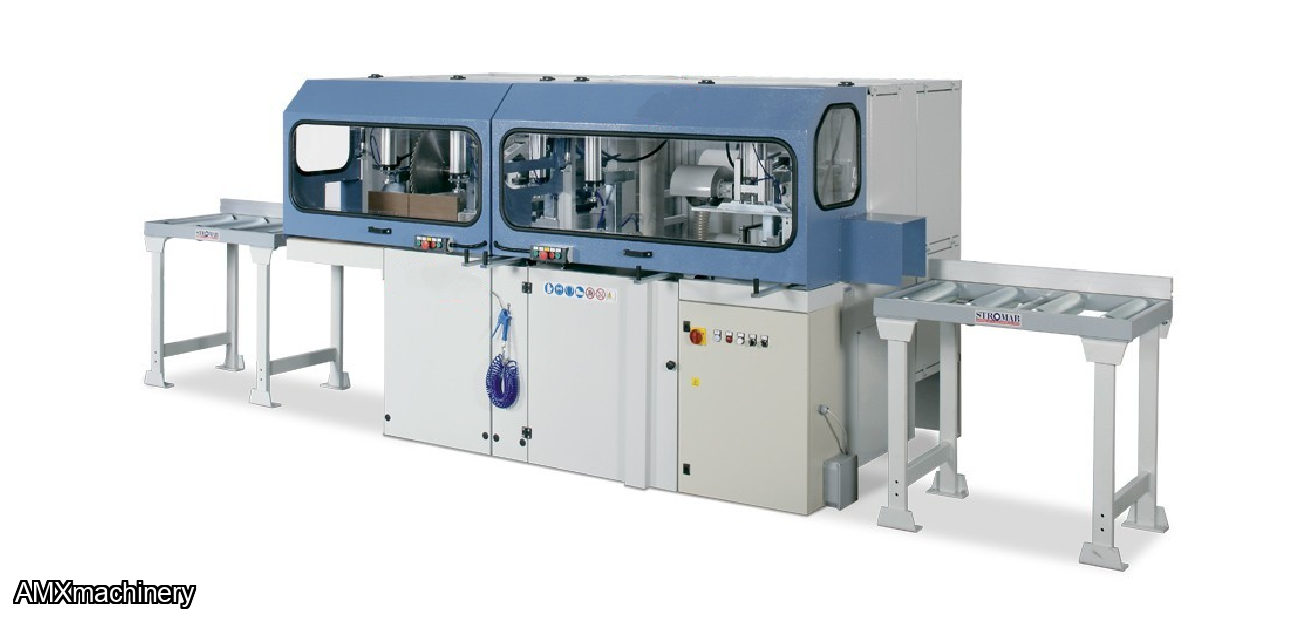

Working centre for Block-House type log houses and wood cabins.
Maximum workpiece dimensions 270 mm (width) x 320 mm (height)
Minimum workpiece dimensions 140 mm (width) x 120 mm (height)
Beam movement accomplished manually, with adjustable mechanical stops.
4 The working centre is equipped with the following standard units:
Horizontal and vertical notching unit (standard)
Cross-cutting unit with a blade diam. of 800 mm (optional)
Tenoning unit with milling tool diameter of up to 230 mm (optional)
Drilling unit (optional)
STANDARD EQUIPMENT: Workpiece clamping with 5 vertical pneumatic cylinders, 1 horizontal pneumatic cylinder, 4 adjustable mechanical stops for positioning the workpiece, Manual tool adjustment with mechanical readout, Tool feeding by hydro-pneumatic cylinders, Tools NOT included.
OPTIONAL EQUIPMENT: Cutting-off unit, Tenoning unit, Drilling unit, Roller tables, Wide range of tools.
