Descripción

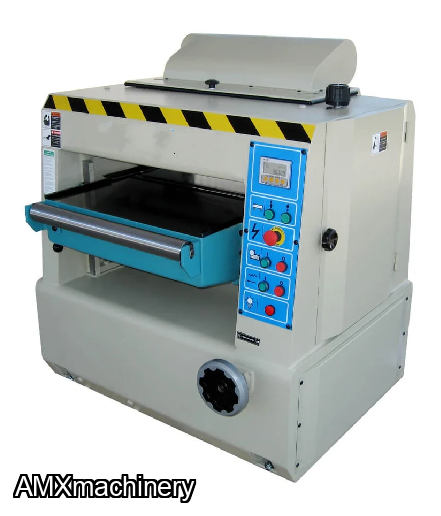

PARTE: 2EX-XP-610 - CEPILLO 1 CARA - 24" ANCHO
Details:
10HP
Solid cast-iron construction
Solid infeed rollers
Huge 8-3/4” thickness capacity
6000 RPM cutterheads
Infinitely variable speeds 20-42 ft/min
Motorized table elevation
Slide scale digital readout on XP-610
Available with straight,
STEALTH, or VECTOR cutterheads
Heavy duty screwjack elevation system
Easy access internal workings
External bed roller adjustments
Specifications:
Horsepower: 10 HP
Voltage: 230V / 460V
Phase(s): 3 PH
Width: 24"
Main Horsepower: 10 HP
Feed Horsepower: 1 HP
Elevator Horsepower: 1/2 HP
Max Thickness: 8 3/4"
Min Thickness: 0.375"
Max Cut: 0.25"
Min Length: 10.5"
Cutterhead RPM: 6000
Top Cutter Access: 20-42 ft/min
CFM Requirements: 1000
Thickness Adjustment: Motorized
Bed Roller Adjustment: Extrernal
Power Bed Rollers: Top and Bottom
Sectional Infeed Rollers: Optional
AMPS (230V/460V): 28A / 14A
Weight: 2120 lbs
