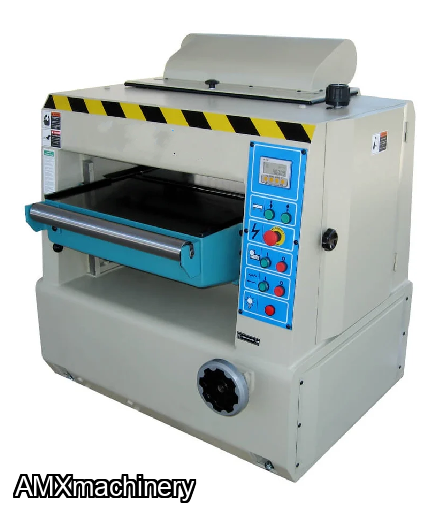

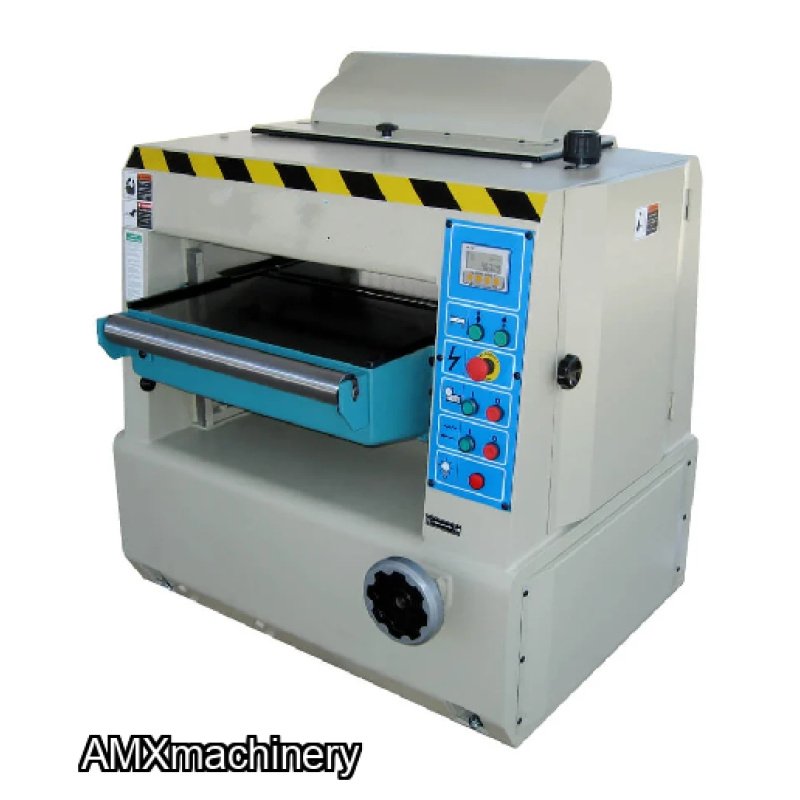

PARTE: 2EX-XP-615 - CEPILLO 1 CARA - 24" ANCHO
Details:
- 15HP
- Solid cast-iron construction
- Solid infeed rollers
- Huge 8-3/4” thickness capacity
- 6000 RPM cutterheads
- Infinitely variable speeds 20-42 ft/min
- Motorized table elevation
- PLC thickness controller on XP-615
- Available with straight,
- STEALTH, or VECTOR cutterheads
- Heavy duty screwjack elevation system
- Easy access internal workings
- External bed roller adjustments
Specifications:
- Horsepower: 15 HP
- Voltage: 230V / 460V
- Phase(s): 3 PH
- Width: 24"
- Main Horsepower: 15 HP
- Feed Horsepower: 1 HP
- Elevator Horsepower: 1/2 HP
- Max Thickness: 8.75"
- Min Thickness: 0.375"
- Max Cut: 0.25"
- Min Length: 10.5"
- Cutterhead RPM: 6000
- Feed Speed: 20-42 ft/min
- CFM Requirements: 1000
- Thickness Adjustment: PLC Controller
- Bed Roller Adjustment: External
- Power Bed Rollers: Top and Bottom
- Sectional Infeed Rollers: Standard
- AMPS (230V/460V): 41A / 20A
- Weight: 2345 lbs
