ID: 1582
Open
Description

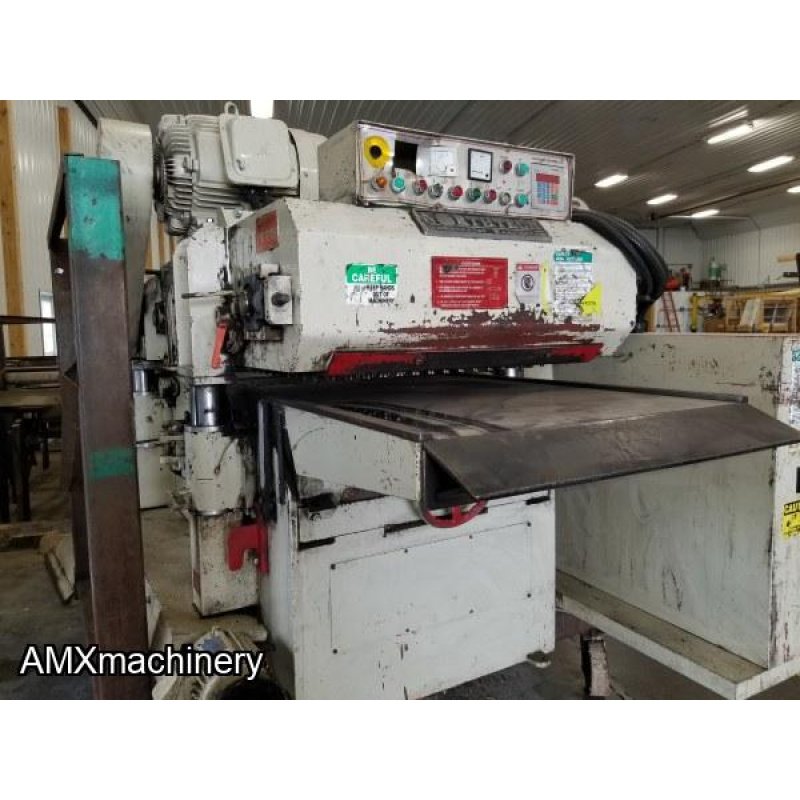

PARTE: 12335 - CEPILLO 2 CARAS - CAPACIDAD 30”
USADO - BUENAS CONDICIONES
460/60/3, 135 amps electrics
Standard Specifications:
- 32-3/8" wide
x (3/8” to 6") thickness work-piece capacity
- 13” minimum
length x 2” minimum width work-piece
- 50 HP, 230/460/3
top head motor
- 50 HP, 230/460/3
bottom head motor
- 6” diameter,
5,000 RPM solid steel cutterheads
- Helical
cutterheads with insert style knives
- 10 HP 15 HP
inverter-controlled feed motor, (30 to 80 ft/min.)
- “Carpet” style
feed system with 1,500 spring loaded spikes
- 2 HP 4-column
feed carpet/top-head elevation motor
- (3) bottom &
(3) top powered feed rollers & (4) bottom & (1) top idle feed rollers
- Digital thickness
setting controls with cutterhead motor amp meters
- 34” pass-line
height
- (1) automatic
& (1) manual oiler, (low oil shut-off)
- (4) 6” diameter
dust ports, (~6,000 CFM)
- 90 PSI pneumatic
requirement, (3/8'' diameter inlet)
- 75 dB sound rating
- 115” L x 88” W x
70” H approximate overall dimensions
- Weighs
approximately 15,500 lbs.
