Identificador: 1575
Abierta
Descripción

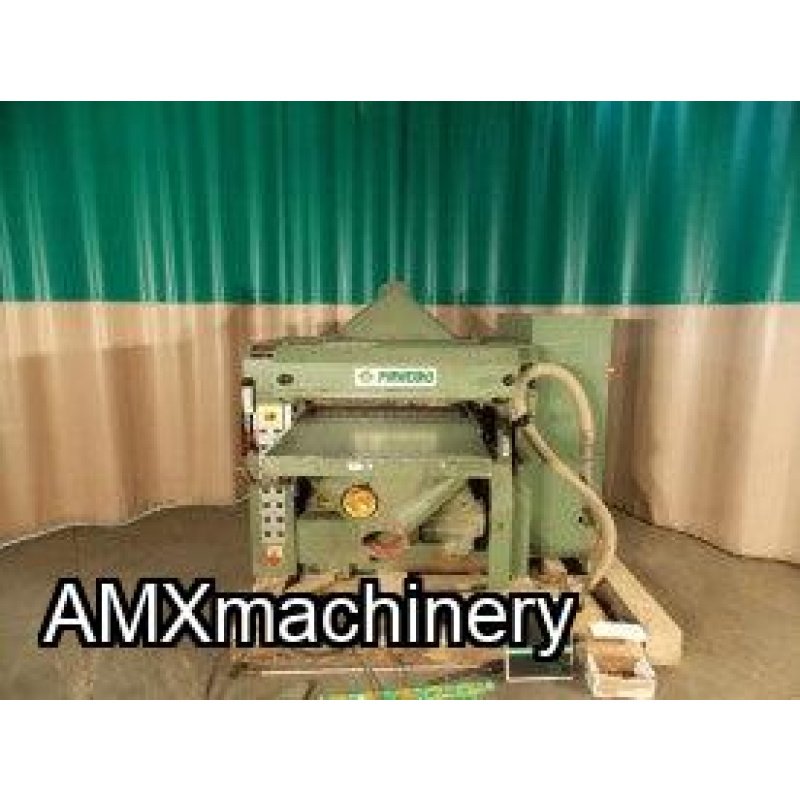

PARTE: 12328 - CEPILLO 2 CARAS - CAPACIDAD ANCHO 24” - ITALIANO
USADO - BUENAS CONDICIONES
Features gang rip and side head capabilities.
Additional technical specifications include...
Planing & sawing width 24" max
Thickness max. 4"
Min. 1/2"
Top Head: 4 knives 1/8" x 1-1/4" x 25"
18 HP motor
Speed 5500 RPM
5-1/4" cutting circle
3/8" max chip removal
7/8" profile depth max.
8" dia. dust hood
Bottom Head: 4 knives
1/8" x 1-1/4" x 25"
12 HP motor
5500 RPM
5-1/4" cutting circle
3/8" max. chip removal
1/2" max. profile depth
7" dia. dust hood
Feed System: infinitely variable 20-100'/minute
4 HP motor
11 feed rolls
9 powered rolls
6-5/16" dia. of top rolls
3-7/8" dia. of bottom rolls
length of infeed table 37"
shortest work piece 16"
floor area 120" x 60"
460V three phase
Shipping dimensions 12' x 5' x 6' High
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
RETESTADORA
PARTE # 2DO-PAO-CR10 - REDONDEADORA DE ESQUINAS - RETESTADORANUEVA CON GARANTIAESPESOR DEL TABLERO (MÍN. / MÁX.): 10/50 MMVELOCIDAD FRESA: 24000 RPMPOTENCIA MOTOR NEUMÁTICO: 0.37 KWFRESAS DE WIDIA DIÁMETRO MÁX.: Ø 30 mm Z2 R=2 mmTOMA DE ASPIRACION: Ø 100 MMPESO: 100 KGSAIRE COMPRIMIDO SUFICIENTE Y CONSTANTE: 6,5 - (95 PSI) BarDIMENSIONES TOTALES OCUPADAS: 780 x 720 x 1250 MMEMISIÓN SONORA SEGÚN NORMAS ISO 7960 – EN VACÍO EN ENTRADA / SALIDA: 70,6 / 70,4 LA eq [dB(A)]EMISIÓN DEL RUID...
AMXmachinery
POSTFORMADORA
PARTE # 2EV-0190 - POSTFORMADORA - 12 PIES LARGO 1 LADO - EVANS 0190Para hacer dobles para Back Splash- 110V, 1 phase, 15 amps- 220V, 1 phase, 8 amps- Air: 80 PSI - 12' maximum capacity (3660 mm)- Back Splash Height: Minimum 1" (25 mm), Maximum 34" (860 mm) - Possible coving radios: 1/8" (3 mm) , 3/16" (5 mm), 3/8" (10 mm)- Crated weight 1800 LBS. - Shipping dimensions 182” long X 34” wide X 50” high- Bends inside cove bends for back splashes. The 0190 is available with either...
AMXmachinery
SIERRA PANELES SCM
PARTE: 12011 - SIERRA PANELES - SIGMA PRIMA 50 - SCMEN MUY BUENAS CONDICIONESMAS INFORMACION POR RECIBIRSE
AMXmachinery
TORNO METAL
TORNO DE PRECISION PARA METAL 4-1/8" SPINDLE BORE & FREE TAPER ATTACHMENTGT-2040 - 20"x40", 4-1/8" bore, 12 spd, 10 HP, 220/440VGT-2060 - 20"x60", 4-1/8" bore, 12 spd, 10 HP, 220/440VGT-2080 - 20"x80", 4-1/8" bore, 12 spd, 10 HP, 220/440VGT-2680 - 26"x80", 4-1/8" bore, 12 spd, 15 HP, 220/440VGT-26120 - 26"x120", 4-1/8" bore, 12 spd, 15 HP, 220/440VGT-3280 - 32"x80", 4-1/8" bore, 12 spd, 15 HP, 220/440VGT-32120 - 32"x120", 4-1/8" bore, 12 spd, 15 HP, 220/440V
