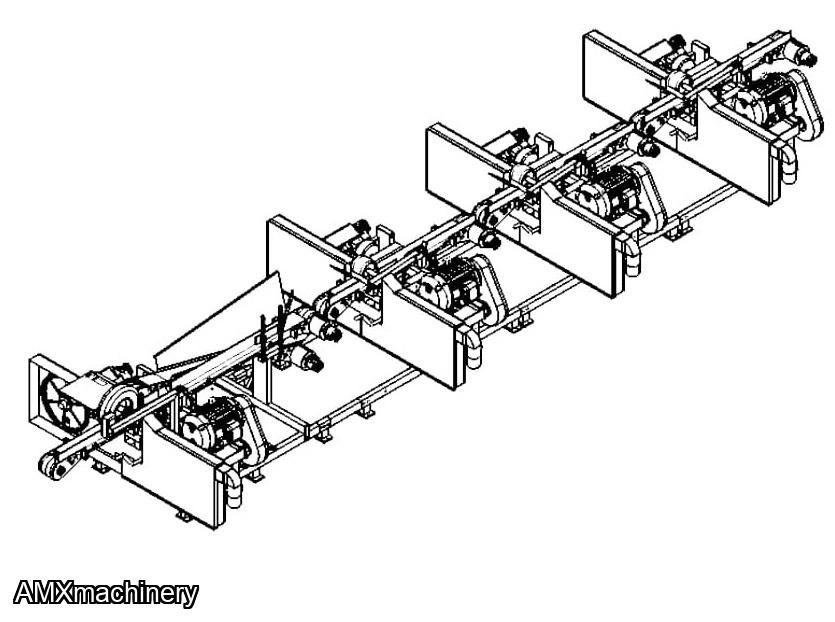

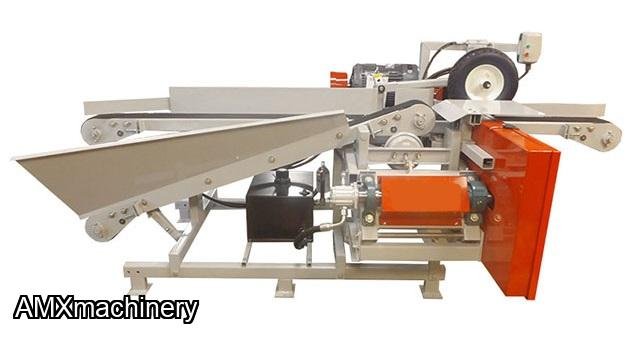

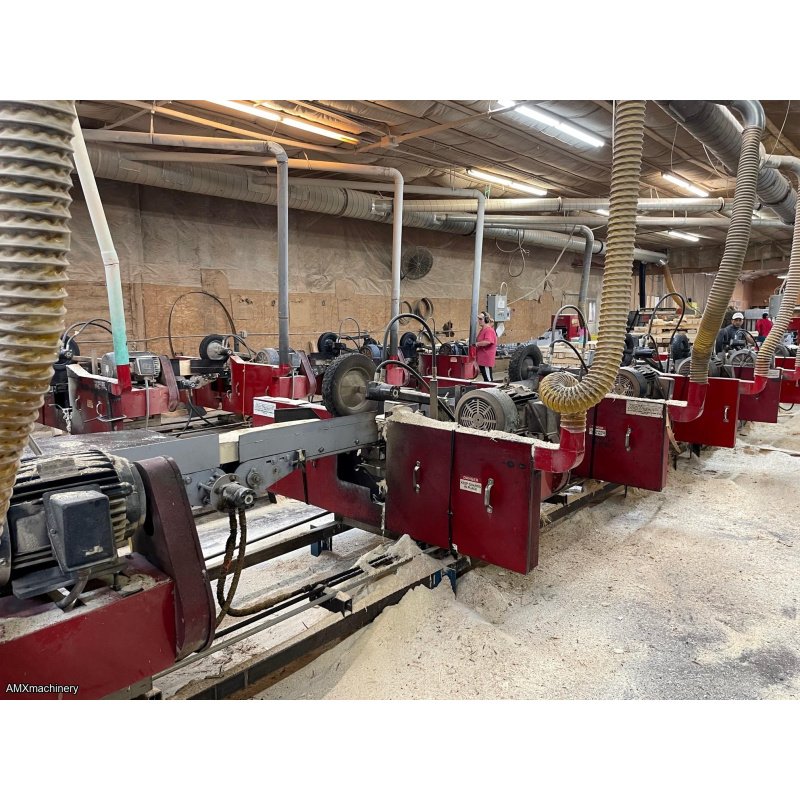

REASERRADORA HORIZONTAL - 4 BANDAS - ANCHO 8” - (4) 15 HP - REGRESADORA

PARTE: 2FA-RM6X6-4 - REASERRADORA HORIZONTAL - 4 BANDAS - ANCHO 8” - (4) 15 HP - REGRESADORA

NUEVA CON GARANTIA

- ¼” – 6” Tall Cut Height, 8” Wide, Unlimited Length Capacity

- 4” Dust Connection (No dust collector required)

- Heavy Duty 2-7/16” Blade Arbors and Bearings

- 20” Band Wheels

- Air Tensioned Blade Mechanism

- Powered Belt Return w/ Adjustable Height Sheer Plate

- Self- contained Hydraulic System: Adjustable Infeed Speed (0-150 ft/ min)

- Easy Crank for Adjustable Blade Position

- 3” Right Side Fences

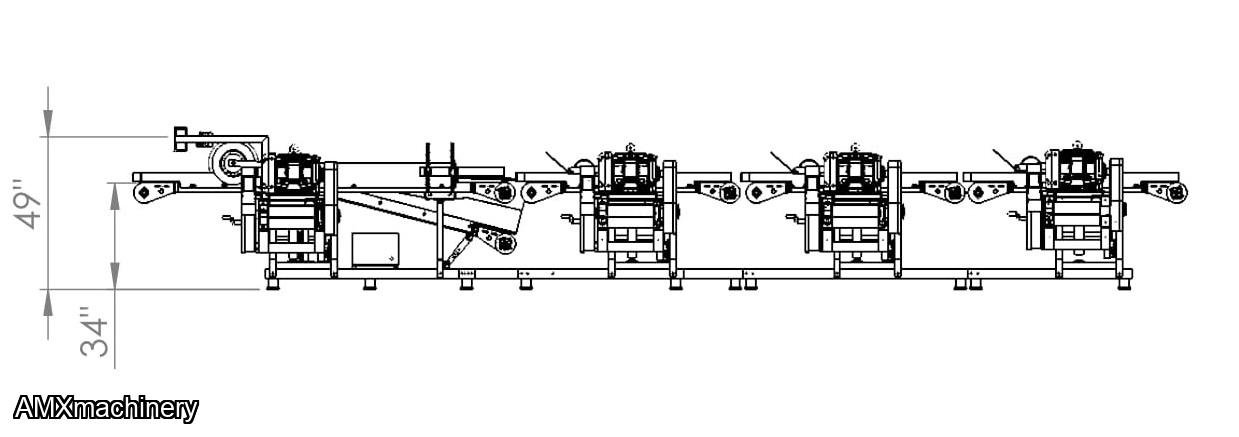

- Feed Belt Height: 34”

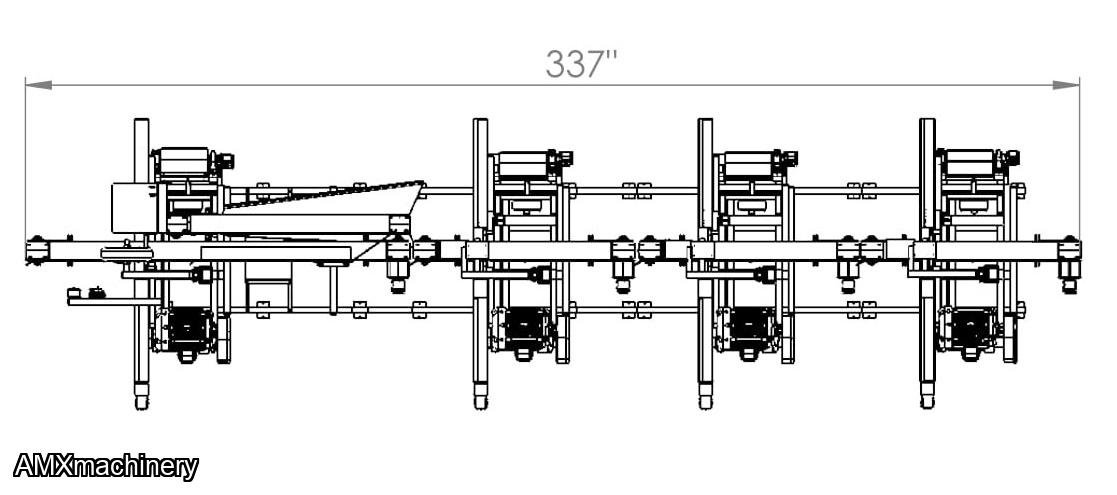

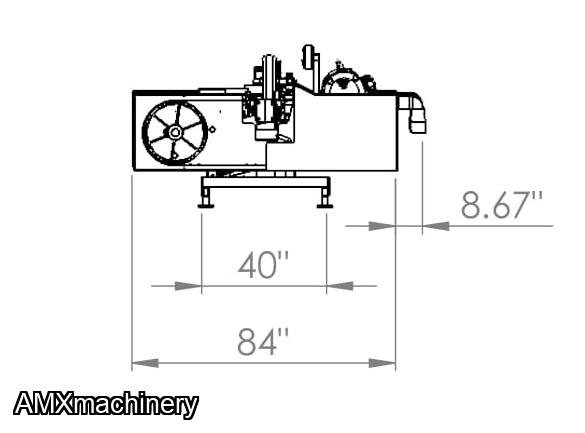

-Dimensions: 70” L, 93” W, 47” H

- Approx. Weight: 1840 lbs

GUIDE_KIT

- 15’1” Long X 1” Wide Bandsaw Blade

- 3/4" Composite Guide Blocks

*** 1.25" Blade Available

*** Roller Guides Available

PWR_HD_6X6

- Top Mounted Powered Tire Hold Down Wheel

HYD_KIT

6 x 6 RESAW HYD COMPONENTS

(3) - ¼” – 6” Tall Cut Height, 8” Wide, Unlimited Length Capacity

- 4” Dust Connection (No dust collector required)

- Heavy Duty 2-7/16” Blade Arbors and Bearings

- 20” Band Wheels

- Air Tensioned Blade Mechanism

- Self- contained Hydraulic System Runs off First Saw

- Easy Crank for Adjustable Blade Position

- 3” Right Side Fences

- Feed Belt Height: 34”

-Dimensions: 60” L, 90” W, 48” H

- Approx. Weight: 1340 lbs

GUIDE_KIT

- 15’1” Long X 1” Wide Bandsaw Blade

- 3/4" Composite Guide Blocks

*** 1.25" Blade Available

*** Roller Guides Available

HD_SLAVE

- Top Mounted Powered Tire Hold Down Wheel

PWR_HD_HYD KIT

RS6X8 HYD KIT

AIR_HOLD_OVER_SLAVE

RESAW HOLD-OVER KIT FOR SLAVE MODEL

FRAME 6X6_MID

Slave Middle for 6x6 Return Resaw

FRAME_6X8_MID

Slave Mid Frame Rail for Behind 6X8

FRAME_6X8_END

Slave End Frame to Slave Middle or RM6X8

RESAW-(4)15HP_480_PUMP

4 HEAD Control Panel

- (4) 15 HP Blade Motors (230/480/3/60 TEFC)

- (1) 5 HP Pump Motor (230/480/3/60 TEFC)

- 480V Line Voltage

- 24" Tall X 20" Wide Enclosure (UL Type 1,3R,4,12)

- Enclosure Mounted to Hydraulic Pump Stand

- 480V Primary/ 120V Secondary Control Transformer

- Service disconnect in panel door

- (4) 15HP 480V Motor starters, breaker w/OL

- (5) Start/ Stop buttons for each motor w/ legend plates (Head 1, Head 2, Head 3, Head

4, Hydraulic Pump)

- (1) Emergency Stop Button w/ legend plate

- All controls mounted in plastic remote enclosure

- Completely for 480V, Pre-wired Motor Starters with Start/ Stop Buttons and Circuit

Overload Protection

- Controls Mounted at Operators Station

- 85.8 FLA

4 HEAD HYD

4 Head Resaw Pump System

- 40 Gallon Hydraulic Revivor

- 10 GPM Pump

- Pump Stand

STARTUP KIT 1

- 25 Blades

- Extra Set of Guides

- Grease gun with tube of grease

- 9/16 Wrench

- 3/4 Wrench

- 1-1/8 Wrench

- Toolbox

Popular Options

- Multiple Support Heads

- Air Tension Hold Over Plate (For Ripping Material)

- Pre-wired for 230, 480, 575V 3 Phase

- Pre-wired 220V 10HP Motor Single Phase

- Gas Powered Honda GX690 Power Plant

- 6” Height Right Side Fences

- Left Fences for Ripping

*** Other options available
