Identificador: 3300
Abierta
.PNG)
.PNG)
Descripción

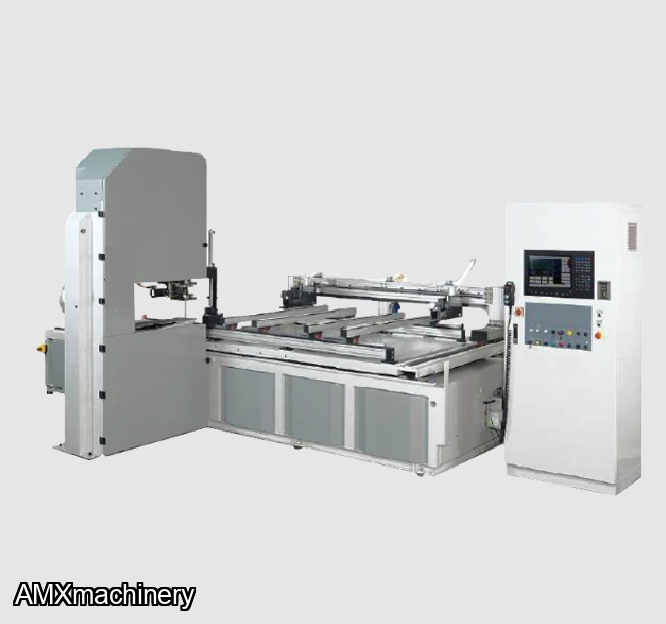

PARTE: 2LO-BS-1500CNC - CIERRA CINTA CNC - 59"

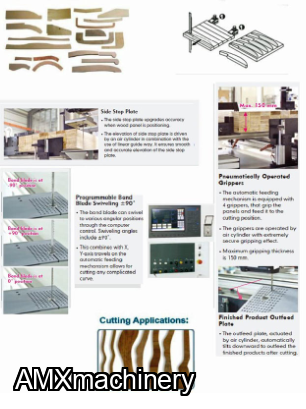

- Advanced CNC control features powerful function and easy operation.
- High efficiency curve cutting without need of copy template.
- Band blade swiveling angle: ±90˚
- Automatic wood infeed and outfeed. Fully automatic cutting operation.
- All travels are driven by servo motors combined with the use of linear guide ways.
- Aluminum alloy automatic feeding mechanism features light weight, maximum durability and elegance.
- Rugged machine construction.
- 15" fully colorful LED monitor and controller.
- AXIS CARD: 4 servo axes +1 set of analog voltage output +1MPG hand-wheel axis.
- 4 axes control. Available to connect with various interfacing ports, such as RS-232, RS-422, RS-485 and Ethernet.
- 32 bit CPU. Built-in open type PLC an
Specification:
| Specification | BS-2000CNC | BS-1500CNC |
| Cutting Length | 0 ~ 78" | 1 ~ 59" |
| Cutting Height | 0 ~ 6" | 1 ~ 6" |
| Max. Cutting Depth | 25" | 25" |
| Cutting Angle (Degree) | Tilt +90 ~ -90 | Tilt +90 ~ -90 |
| Max. Material Size (Lx W x H) | 78" x 47" x 6" | 78" x 47" x 6" |
| Saw Blade Size | 232" L x 1/2" W | 232" L x 1/2" W |
| Saw Blade Wheel Diameter | 35" | 35" |
| Saw Blade Wheel Width | 1-3/4" | 1-3/4" |
| Saw Blade Wheel Speed | 750 RPM | 751 RPM |
| Saw Blade Motor | 15 HP | 16 HP |
| Feed Speed | 0 ~ 70 fpm | 1 ~ 70 fpm |
| Table Return Speed | 105 fpm | 106 fpm |
| Servo Motor (X + Y + C, KW) | 3.5 + 1.6 + 0.7 | 3.5 + 1.6 + 0.8 |
| Machine Weight | 8360 LBS | 9240 LBS |
| Machine Size (L x W x H) | 204" x 130" x 102" | 220" x 130" x 102" |
