Description
PARTE: 2CK-UFO103B

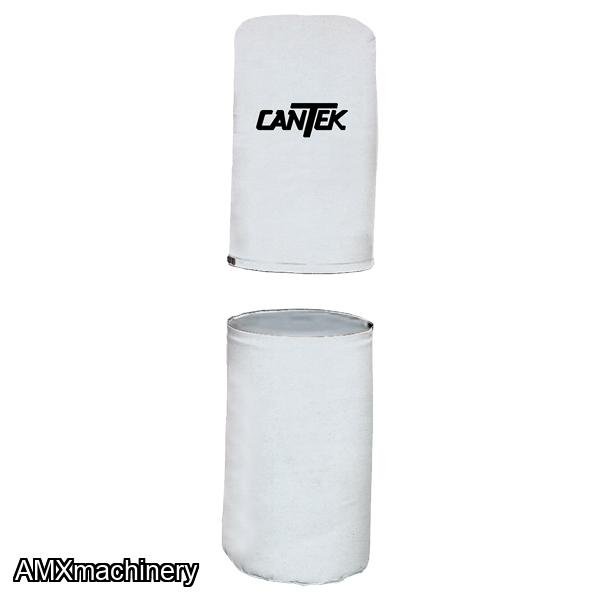

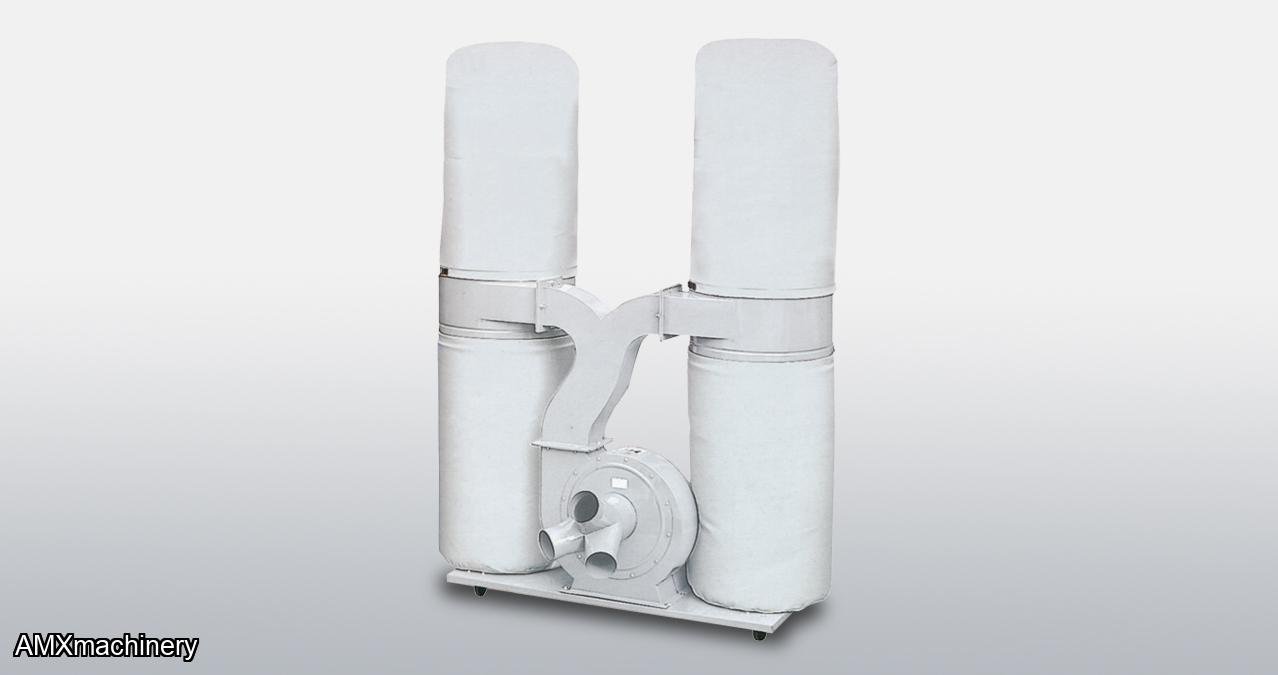

Is ideal for the small shop looking to collect wood dust or for the larger shop to provide additional dust collection beyond the capacity of their central system. The upper and lower bags are made of cotton and help filter the collected air before it is recycled into the shop and also collects the dust for disposal. The base is mounted on casters so it can be taken to where it is needed in the shop.
- 5 HP generating 2863 CFM
- Base is mounted on casters so it can be moved around the shop to where it is needed
- Durable cotton filter bags
- Magnetic starter included
KEY ADVANTAGES
- 5HP Motor
- 2863 CFM
- 7” main inlet with removable outlet with (4) 4” ports
|
CFM |
2863 CFM |
|
Motor |
5 HP |
|
Main inlet diameter |
7″ |
|
Connector inlet diameter |
(4) 4″ |
|
Bag Volume |
20.97 cubic feet |
|
Static pressure of water |
10.55 inch |
|
Top bags (2) |
24″ x 42” |
|
Bottom bags (2) |
24″ x 42” |
|
Net weight |
253 lbs |
|
Noise Level |
85dB |
