Descripción

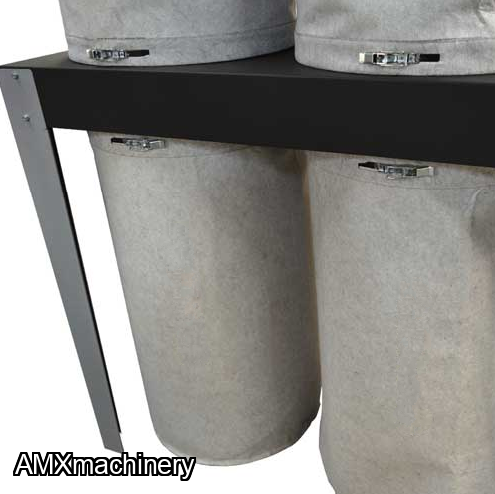

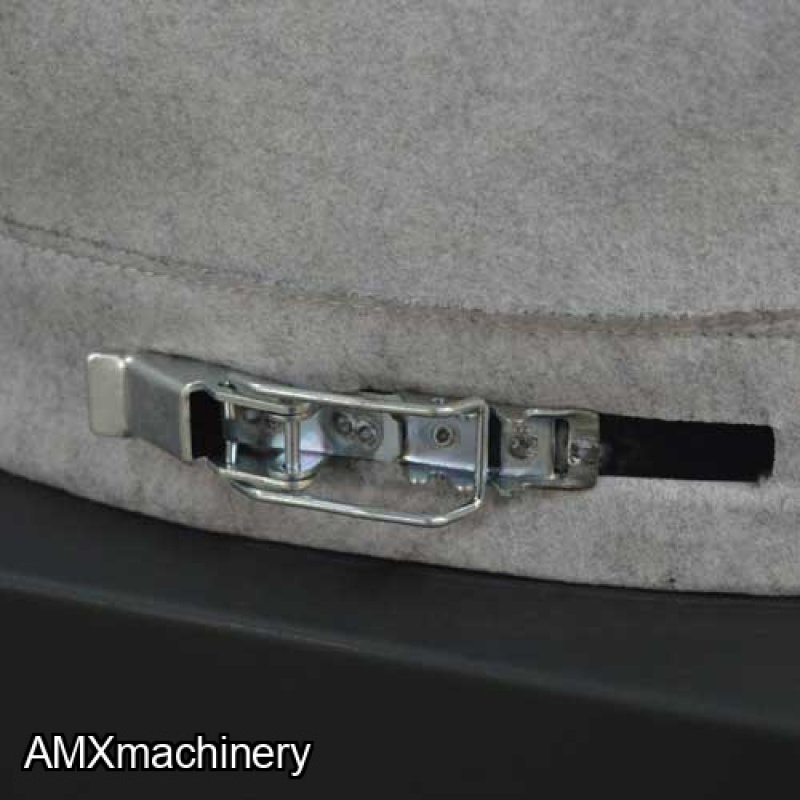

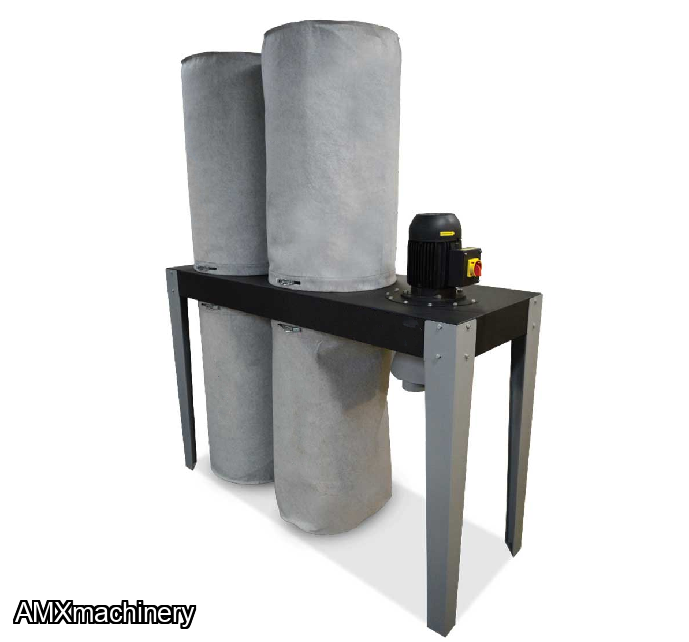

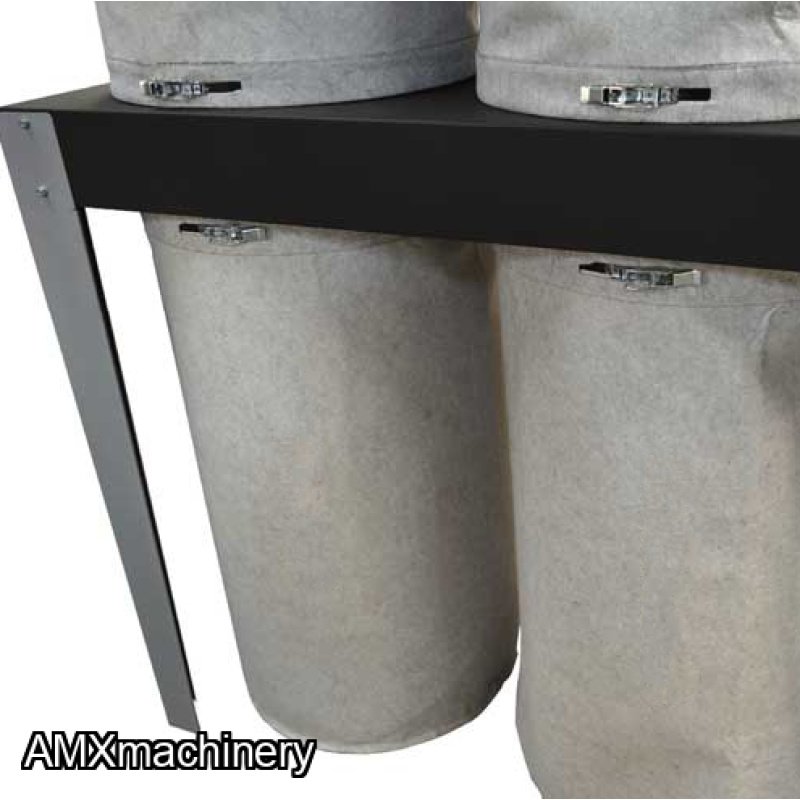

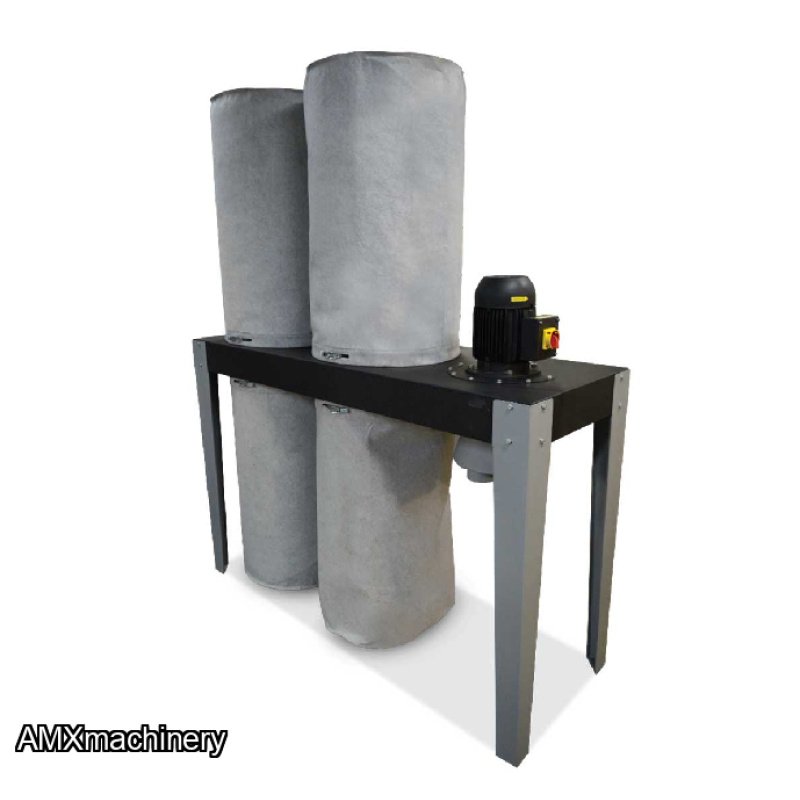

PARTE: 2MK-CPD/5.S - COLECTOR DE POLVOS - 5HP
Is ideal for cabinet shops with high production. With a 200 liters (53 Gallons) tank capacity, you can attach carbon steel or bag, both tanks are easy to be replaced. It has 5 entries with 100 mm (4 inches) and a 5 hp motor. The entry system can be changed according to the needs of its owner.
| Technical Information | |
|---|---|
| Motor specs | 5 HP 3 phases 220V 20 A |
| Air Flow Capacity | 2760 CFM |
| Bag volume | 400 L (14.13 ft³) |

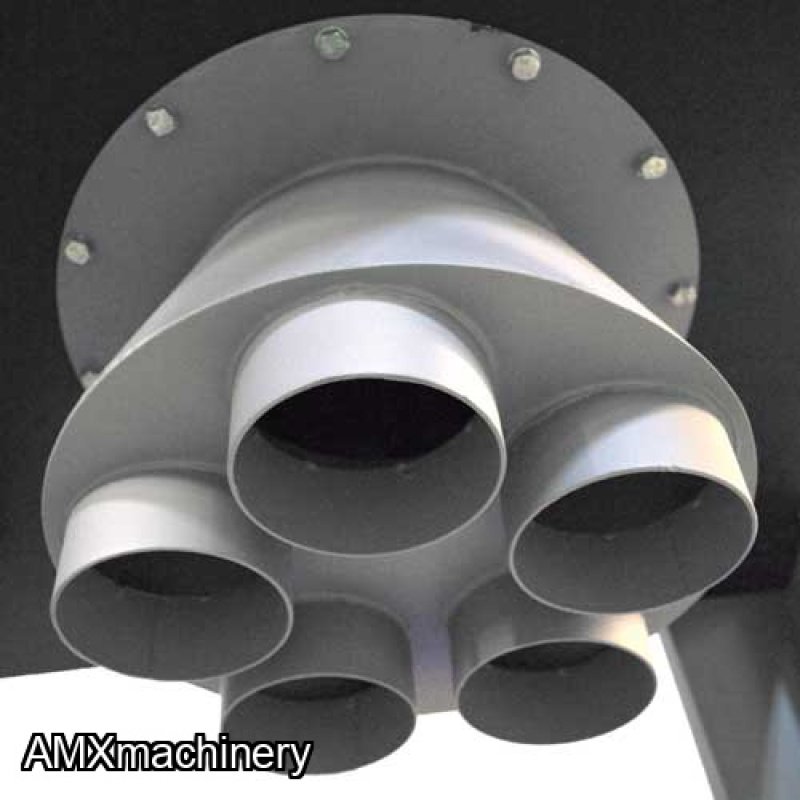

| Number of air inlet: | 5 (4in) |
| Filtration | 2.5 micron |
| Bag size | 25" x 35" | 580mm x 900mm |
| Weight | 242.5 Lbs. |
