CORFAB MIDWEST 1520

AMXmachinery

Contacte al Vendedor

Descripción

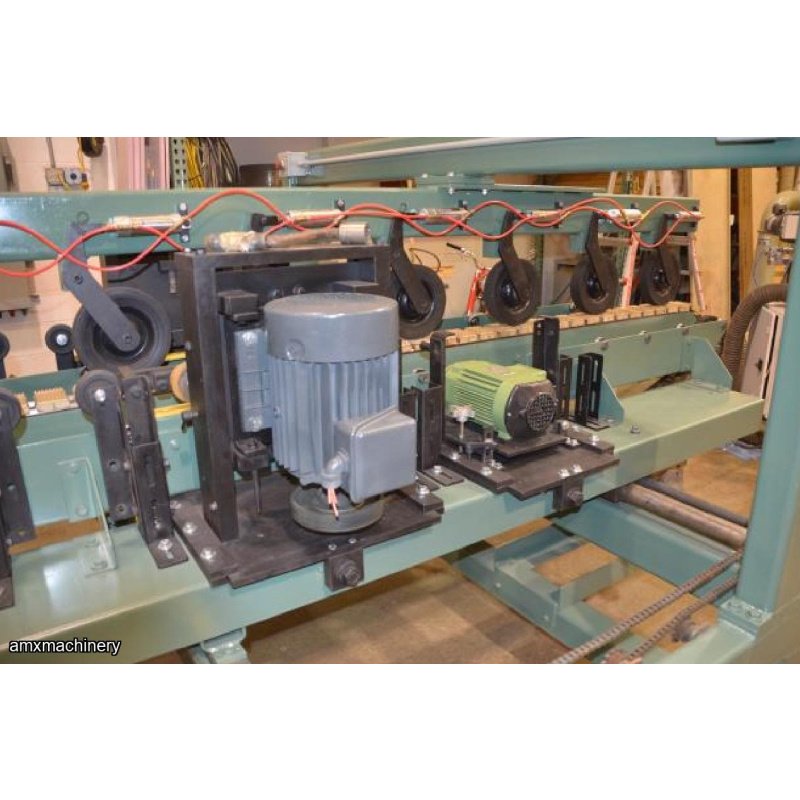

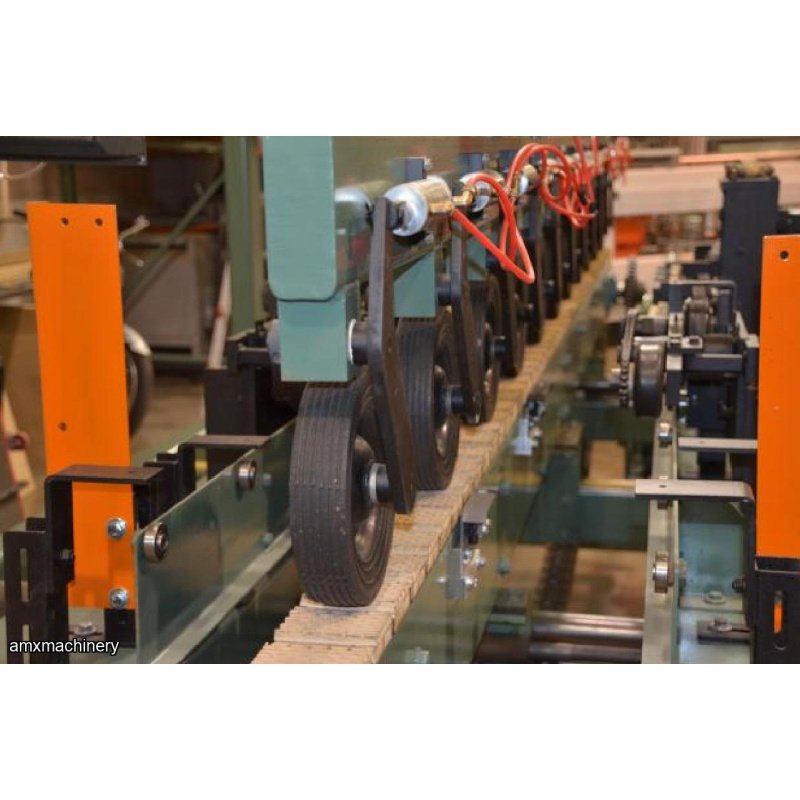

PARTE # 11631 - CORFAB MACHINE - MIDWEST AUTOMATION 1520

EN PERFECTAS CONDICIONES, RECONSTRUIDA TOTALMENTE

LISTA PARA OPERAR

ALIMENTACION Y TROMPOS: 3 HP, 230V, 3 FASES, 60 HZ

UNIDAD HOT MELT 230 V, 1 FASE

AIRE 100 PSI

VELOCIDAD 26 FT/MIN

DIMENSIONES TOTALES: 25.5 PIES LARGO X 80" ANCHO X 58" ALTO

ALTURA TRABAJO 36"

PESO ENVIO: 4500 LBS

CORE WIDTH: 14" MIN TO 48" MAX

BUILD UP STRIP: WIDTH 1/2" TO 1-1/2" - THICKNESS 3/8" TO 3/4"

This machine will do the following profiles: 90°, 180°,“D” wrap, self-edge and even ogee. The only profile that the machine will not do is the No-Drip profile.
