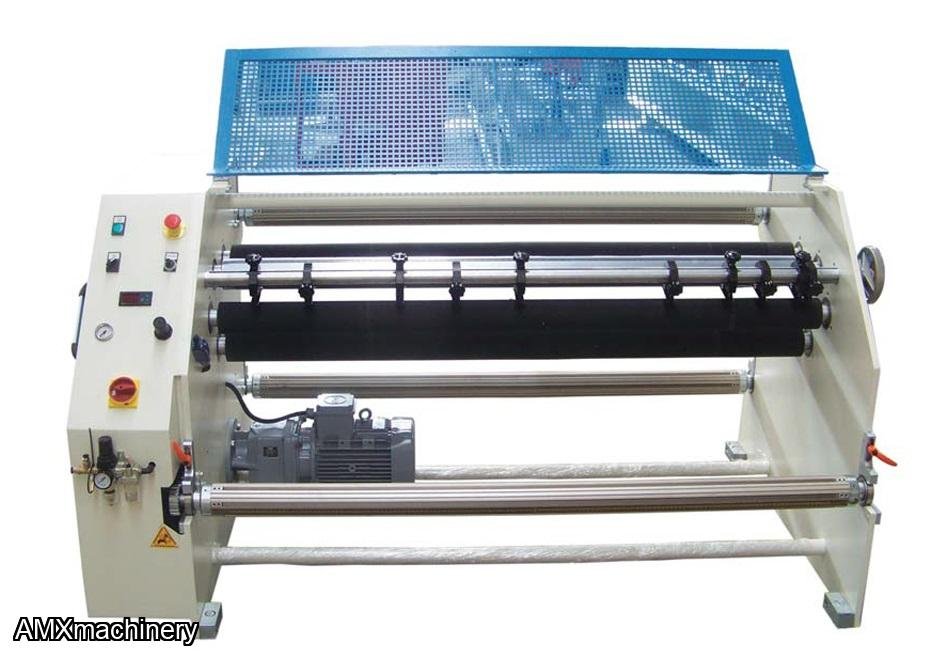

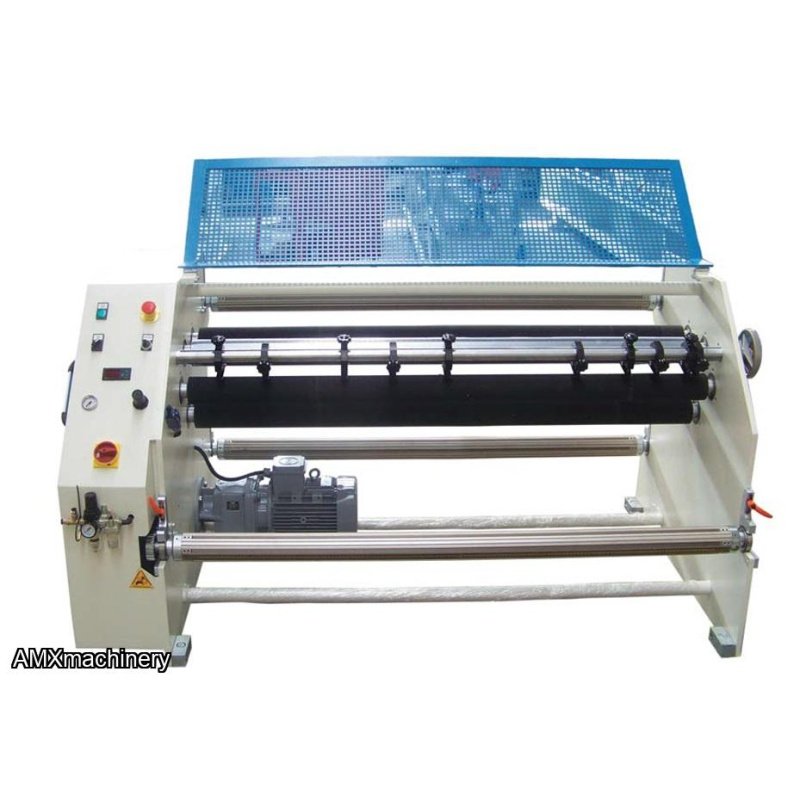

CORTADORA DE FOIL CON NAVAJAS INDUSTRIALES

PARTE: 4VE-VRC-1500 – CORTADORA DE FOIL CON NAVAJAS INDUSTRIALES

Nueva con garantía

General Features

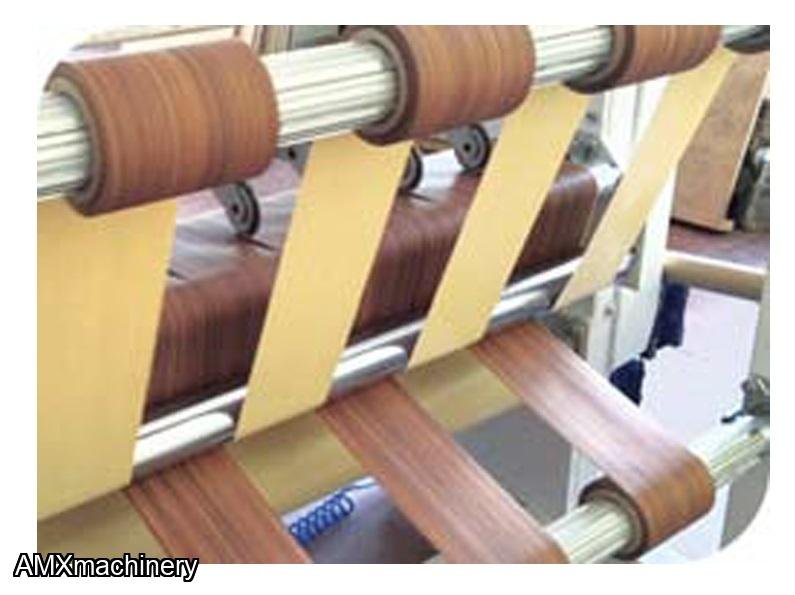

Cutting Machine with industrial blades, which is a perfect solution for slice papers and folio.

Automatic winding brake force air control, contactless and depending on diameter:

Continuous network speed, independent of the diameter.

The minimum setup times, a fast-change blade system

Two winder shaft and also available as friction winding shaft.

Heavy steel frame in robust design.

High drive force for very tight winding.

Deionization is available.

NO       STANDARD SPECIFICATIONS                                                                                                 QTY

1          Main shaft for fix foil pneumatic with sliding brake system                                                             1

2          Air shafts for winder cut foil                                                                                                             2

3          Shafts with a rubber coating, for tight winding cut PVC film                                                            4

4          Chrome coated shaft with, for tight winding cut PVC film                                                                1

5          The mobility of the machine provide gear reducer and motor, motor speed are adjustable             1

6          All electrical equipment machinery (Telemecanique)                                                                        1

7          Emergency stop systems and safety switches                                                                                 1

8          Sliding brake system can be adjusted to the desired width                                                              1

9          Cutting is provided with the Industrial flat blades (RAZOR BLADES)                                             10

                                                            TECHNICAL DATA

FOİL TYPE                                           : PVC, PAPER

MAX ROLL DIAMETER and WIDTH    : 500 mm , 1500 mm

ROLL                                                    : 5pcs

MİN-MAX FOIL THICKNESS                : 0,15 - 0,40 mm

CUTTING SPEED                                 : 75 m/min

MINIMUM SLICER WIDTH                    : 30 mm

TOTAL POWER                                     : 3 KW

VOLTAGE                                              : 380 VOLT

FREQUENCY                                        : 50 Hz

WEIGHT                                                 : 1000 Kg
