Identificador: 2608 Abierta
CORTADORA DE METAL HIDRAULICA Y FRENO 6 PIES
CORTADORA DE METAL HIDRAULICA Y FRENO 6 PIES
CORTADORA DE METAL HIDRAULICA Y FRENO 6 PIES
CORTADORA DE METAL HIDRAULICA Y FRENO 6 PIES
CORTADORA DE METAL HIDRAULICA Y FRENO 6 PIES

CORTADORA DE METAL HIDRAULICA Y FRENO 6 PIES

AMXmachinery1

Contacte al Vendedor
Descripción

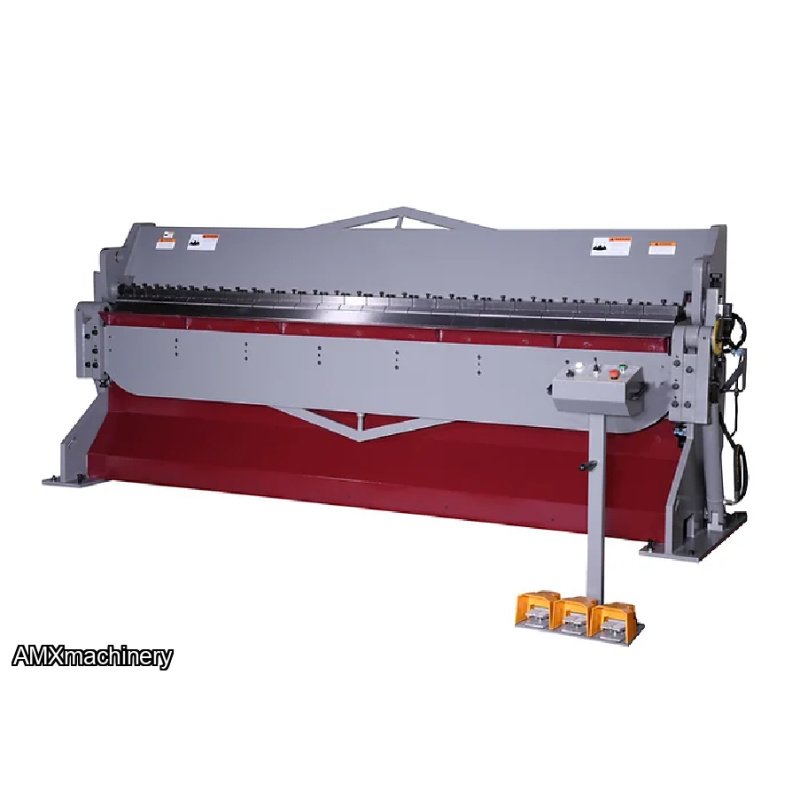

CORTADORA DE METAL HIDRAULICA Y FRENO 6 PIES                    PARTE: 2GM-HBB-0610


Our 6 FT Sheet Metal Hydraulic Box and Pan Brake is a heavy duty hydraulic box and pan brake; constructed of steel for maximum rigidity. Equipped with a robust and quiet German Rexroth hydraulic logic system to clamp your workpiece with ease. Our box and pan brakes are made for simple operation with a conveniently located control panel to place on either side of the hydraulic brake.

  • Taiwan Machines
  • ISO 9001 certified
  • Hydraulic adjustment for opening
  • Hydraulic power clamping for workpiece
  • 26” manual back gauge with handwheel
  • 1” manual beam adjustment ( front and back )
  • Min. reverse bend is ¾” (20mm)
  • Heavy welded all steel construction for maximum rigidity
  • Germany Rexroth Hydraulic logic system centrally located and quiet
  • A wide guidebody ensures strong, stable, smooth & accurate movement
  • Total pieces fingers assortment:
    • 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
  • Central control panels on each side for convenient operation
  • Jog and auto operation modes
  • Overload protection and disconnect switch
  • Assorted fingers
  • 26” manual back gauge with one side handwheel operation
  • Angle set up dial
  • Hydraulic clamping system
  • Foot pedal control for hydraulic clamping & auto mode


Max Bending Length:

6’

Bending Capacity:

Mild Steel (hot roll) 60k PSI

Stainless Steel 85k PSI

soft aluminum 28K PSI

Minimum material thickness



10 Ga.

12 Ga.

1/4"

26Ga.

Opening hem max thickness

Closing hem max thickness

20Ga x 6'

22Ga x 6'

Bend Degree:

135

Max. Box Depth:

153mm=6.02”

Large Beam Opening:

3"

Manual Back Gauge:

26”

Oil Tank Gal.

12 Gal.

Hydraulic Oil:

Shell #68 or equivalent

Main Motor

5 HP 3 Phase

Prewired: 220VAC 15A

Optional: 440VAC 10A

Weight

5,000 lbs.

Shipping Weight:

5,050 lbs.

Overall Dimensions

91" x 46" x 67"

Shipping Dimensions:

105” x 40” x 66”
