Description

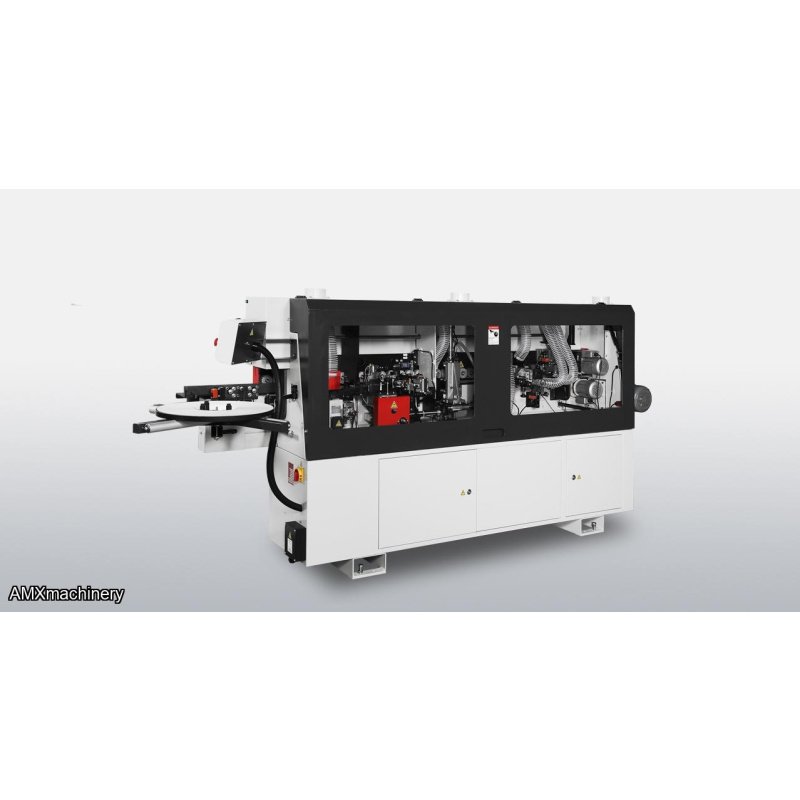

PARTE: 2CK-MX350
Is a compact edgebander capable of applying up to 3mm thick edge tape on cabinet parts and more. The counter rotating pre-milling cutters ensure optimum panel edge quality and squareness which result in a less visible glue joint. It comes equipped with high frequency motors on both the end trim and top & bottom trim. In addition it is equipped with PVC radius scraping and buffing units. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm. It’s compact design and affordable price point make it the ideal edge banding solution for the small cabinet shop who requires pre-milling.
- Versatile edgebander capable of applying 0.4mm to 3mm edge tape.
- Quick change glue pot allows you to change glue colours in minutes.
- Couter rotating diamond premilling cutters produce optimum panel edge for superior edgebanding results
- High frequency end trim & flush trim motors produce fine edge finishing results
- Multi-function trimmers allows for flush or radius trimming on edge banding
- Radius scraping removes any knife marks on radius edges
- Buffing unit polishes the edge
- Powerful chain feed system ensure work piece stability during application and processing of edge banding resulting in a high quality finish
- Teflon coated Quick Change glue pot can be removed and exchanged in only minutes. Comes with (1) quick change pot and others can be acquired for running different color glues.
- Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed
- Conveyor chain feed system for reliable results
- Heated infeed fence for pre-heating the panel for optimum glue penetration
- PLC control system with LED display and keypad
- Workpiece is fed by chain
- Edge coil support plate: Ø 800mm (31 ½”), for PVC/ABS
- Spring-loaded pressure unit with (2) pressure rollers
- Heavy-duty pressure beam with extendable workpiece support
PREMILLING UNIT
- High-frequency pre-milling units can remove up to 3mm and is designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels
- (2) counter-rotating diamond cutterheads for optimum results and longevity
END TRIM
High frequency 12000 RPM end trimming unit, with Ø100mm (4”) TC-Saw blades
TOP & BOTTOM TRIM
High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming
RADIUS SCRAPING
Radius scraper with 2mm radius
BUFFING
3000 RPM top & bottom buffing units to polish the machined edge
|
METRIC
|
INCH
|
|
|
Feeding speed |
29 FPM |
9 meters/min. |
|
Panel thickness |
0.315”~1.77” |
8~45 mm |
|
Max. pre-milling thickness |
1.77” |
45mm |
|
Edge thickness |
0.0158”~0.118” |
0.4 ~ 3 mm |
|
Min. panel width |
4” |
100 mm |
|
Min. panel length |
6.7” |
170 mm |
|
Working table height |
33.5” |
850 mm |
|
Dust collection outlet |
Ø 5” x 3 |
Ø 127 mm x 3 |
|
Total connected power |
10 HP |
7.5 kW |
|
Machine dimensions (LxWxH) |
147” x 52” x 54” |
3700 x 1310 x 1380mm |
|
Machine weight |
1452 lbs |
660 kgs |
|
Shipping dimensions (LxWxH) |
91” x 29” x 54” |
2290 x 720 x 1370mm |
|
Shipping weight |
1558 lbs |
708 kgs |
|
Electrical requirement |
230/3/60: 40 amps |
|
MOTOR POWER
|
Feeding motor |
1 HP |
0.75 (kW) |
|
Pre-milling motors (2) |
1 ½ HP x 2 |
1.1 kW x 2 |
|
Glue spindle motor |
¼ HP |
0.18 (kW) |
|
Front/rear trimming motor |
0.3 HP |
0.22 (kW) |
|
Upper trimming motor |
½ HP |
0.37 (kW) |
|
Lower trimming motor |
½ HP |
0.37 (kW) |
|
Upper buffing motor |
0.16 HP |
0.12 (kW) |
|
Lower buffing motor |
0.16 HP |
0.12 (kW) |
|
Pre-heating |
½ HP |
0.4 (kW) |
|
Glue pot |
1 ¾ HP |
1.315 (kW) |
