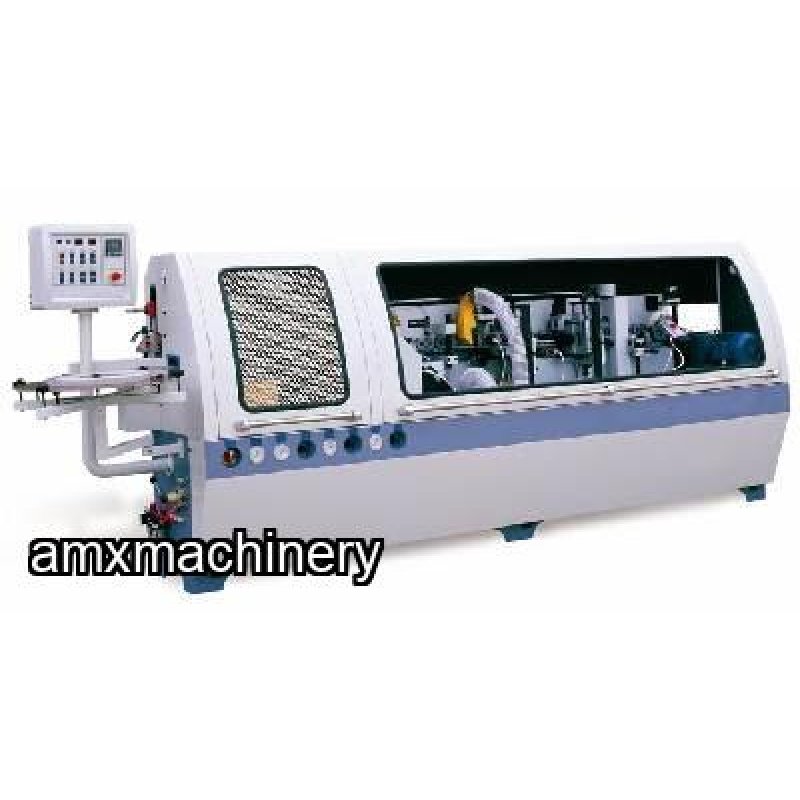

PARTE # 2TA-EB-7B - ENCHAPADORA DE CANTOS RECTOS
Automatic feed station for: Pre-milling, Gluing, Pneumatic Guillotine, Double End trimming, Top & Bottom Rough Edge Trimming, Corner Rounding & Fine Top & Bottom Fine Edge trimming, Edge Scraping, Grooving, Edge Polishing
- The feed of edging material, by ** strip ** or coil is automatic and synchronously with panel feed.
- Total enclosure covers with dust hood connector.
- Heavy and rigid construction to ensure necessary accuracy and stability.
- To guarantee straight-line feed of the panel, a double row of rubber toothed rollers is off centered onto top pressure beam and bottom feed track with rubber calibrated pads is running on cylindrical guide.
- The top pressure beam is supported with two reinforced columns are equipped with visible linkages for thickness adjustment.
- Extension rollers support for wider panels.
- The electric and pneumatic system is incorporated in the built-in control cabinets.
- Side Pressure Unit: Standard with one row of vertical rollers for straight edges.
- Pre-Milling Unit: Two pre-milling heads running different direction to clean the surface without breaking the edge.
- Gluing Unit: With the use of HOT melt glue applied on straight Panel for edges banding.
- End Cutting Unit: Pneumatic guillotine application for cutting end of band material
- Double End Trimming Unit: Application for fine trimming front & rear edge by saw blade with two independent motors
- Edge Rough Trimming Unit: This top and bottom edge heavy trimming unit is complete by cutter head with two independent motors
- Corner Rounding and Edge Fine Trimming Unit: This top and bottom edge fine trimming unit is complete by cutter head with two independent motors to rounding the corner and edge automatically
- Scrapping Unit: Apply for scrapping top and bottom corners of PVC or ABS,
- Grooving Unit: Apply the groove, notch to the material surface.
- Polishing Unit: Apply the finest finish surfacing process on top and bottom edge.
| SPECIFICATIONS | EB-7B |
| PVC Film Band Thickness | 0.4 ~ 3 MM |
| Wood Strip Band Thickness | 8 MM |
| Max. Band Width Over Work Piece Both Side | 2 MM |
| Work Piece Thickness | 10 ~ 50 MM |
| Work Piece Min. Length (When use Pre-milling) | 6.3" |
| Work Piece Min. Length (When use Pre-milling) | 15" |
| Work Piece Min. Width | 3.5" |
| Edge Band Feed Motor | 0.025 KW |
| Pre-milling Motor | 2 KW x 2 |
| Gluing Motor | 0.75 KW |
| End Trimming Speed | 12000 RPM |
| End Trimming Motor | 0.37 KW x 2 |
| Rough Edge Trimming Speed | 12000 RPM |
| Rough Edge Trimming Motor | 0.75 KW x 2 |
| Corner Rounding and Fine Edge Trimming Speed | 12000 RPM |
| Corner Rounding Fine Edge Trimming Motor | 0.37 KW x 2 |
| Scraping Unit | Top & Bottom |
| Polish Wheel Speed | 1400 RPM |
| Polish Motor | 0.18 KW x 2 |
| Feed Speed | 1 ~ 49 FPM |
| Feed Motor | 1.5 KW |
| Heating Glue Tank Power | 2.3 KW |
| Heating Element Power | 0.12 KW |
| Total Power | 12.31 KW |
| Machine Size (L x W x H) | 222" x 49" x 61" |
| Net Weight | 5600 LBS |
