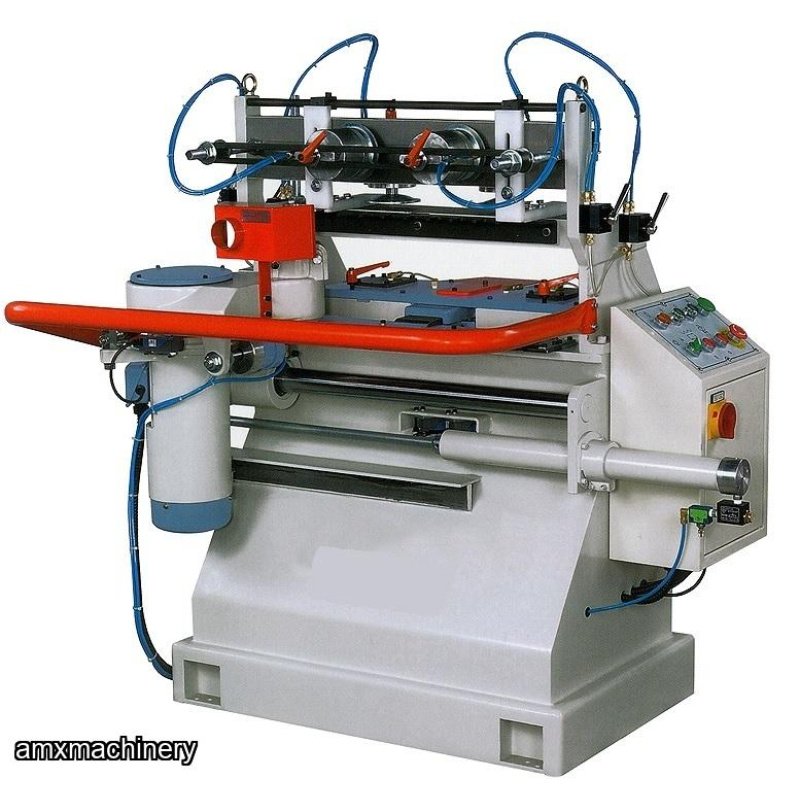

ENLAZADORA/COLA DE MILANO

PARTE: 2LO-JDT75 - ENLAZADORA/COLA DE MILANO

21500 RPM spindle rotation for an extremely fine finish on dovetail joints

High RPM spindle allows for precision machining of plywood & solid drawer sides

Independent adjustment of both the tenon and the mortise depth for precise fitting of dovetail joints

Dust hood for milling cutter

Safety rail in front of spindle motor

High quality pneumatics for smooth feeding, resulting in quality cutting

Cast iron base to ensure vibration free cutting

Automatic lubrication system to spindle stroke

3 cycle speeds for best finish results

WORK PIECE DIMENSIONS

Working length            min. 7.87” (200mm) to max. 59” (1500mm)

Working width min. 2.36” (60mm) to max. 16.93” (430mm)

Vertical material thickness      0.275” (7mm) to 2.36” (60mm)

Horizontal material thickness  0.394” (10mm) to 1.18” (30mm)

SPECIFICATIONS

Fixed pitch      1” (25mm)

Spindle speed 21,500 RPM

Spindle diameter shank          0.472” (12mm)

Spindle motor  2 HP

Feed motor     2 HP

Electrics          230/3/60 = 13.6 Full Load Amps

Feed speeds (3)          16, 22, 31 cycles/min

Net weight approx       990 lbs.

Shipping weight           1210 lbs.

Shipping dimensions   55.12” x 34.65” x 55.12”
