ID: 1497
Open
Description

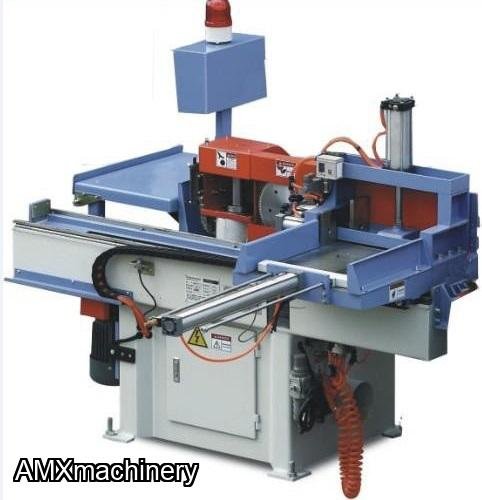

PARTE: 2TA-SFJ-450G - ESPIGADORA 1 LADO - FINGER JOINT - SEMIAUTOMATICO
Nueva con garantía
Specifications:
• Automatic Finger Shaper (glue-spreading)
• Table Size (W x L): 520 x 650 mm
• Max. Working Size (L x W x H): 500 x 400 x 120mm
• Min. Working Size (L x W x H): 80 x 12 x 20mm
• Shaper Spindle Diameter: φ50mm
• Shaper Blade Diameter: φ160mm
• Main Saw Blade Size: φ255mm
• Shaper Spindle Speed: 6000 rpm
• Main Saw Spindle Speed: 2840 rpm
• Working Air Pressure: 0.5--0.8 Mpa
• Total Power: 10.8kw
• Working Table Drive Type: gear chain
• Infeed Type: pneumatic
• Power Required: 220V / 60HZ / 3 Phase
