Descripción

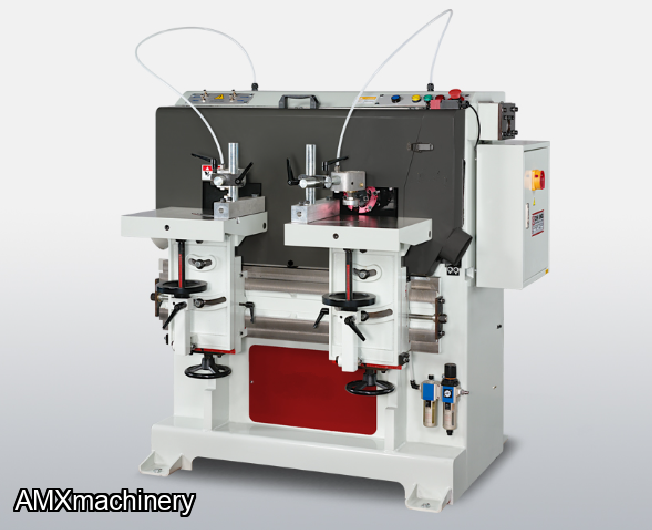

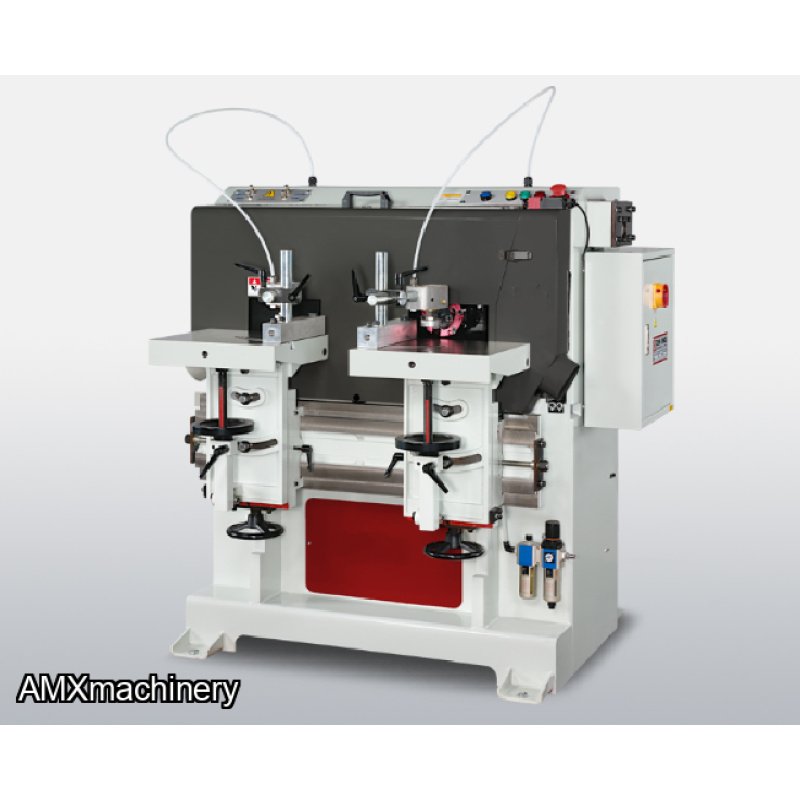

PARTE: 2CK-SW-K6 - ESPIGADORA DOBLE - 2 MESAS - AUTOMATICA
- Dual table configuration permits machining & work piece loading simultaneously for higher efficiency.
- Pneumatic work piece clamping ensures pieces are held firmly during operation.
- Cutting operations are inside the machine behind a protection guard for safe operation.
- Tenon machining is performed by a travelling cutter with stationary table, ensuring high machining accuracy.
- The tenon can be adjusted conveniently without the need to open the door.
- Convenient setup of tenons for horizontal, vertical, and 45o
- Table tilts from +5o to -20o making this machine capable of producing various tenons such as straight, miter, dovetail, beveled, round, and T-shape tenons.
- Centralized control panel provides convenient operations.
- Fast production cycle speeds capable of producing up to 800 tenons per hour.
- Variable cutter feed speed for optimal machining results in various wood species.
- Automatic cutter brake for added safety when emergency push button is pressed.
- Comprehensive cutter guard for operator safety.
- The cutting area is equipped with a rubber dust guard and rubber bellow to prevent dust from entering into the machine.
DESCRIPTION | INCH | METRIC |
Maximum tenon width | 3.94″ | 100mm |
Maximum tenon thickness | 1.18″ | 30mm |
Maximum tenon depth | 1.97″ | 50mm |
Hourly Production | 600~800 tenons | 600~800 tenons |
Table Area (2 tables) | 12.4″ x 14″ | 314mm × 358mm |
Table Tilt (Forward) | +5° ~ -20° | +5° ~ -20° |
Table Tilt (Lateral) | 15° | 15° |
Workpiece Fence Swivelling | 45° | 45° |
Cutter Potation | 9000R.P.M. | 9000R.P.M. |
Cutter Motor | 5HP(3.7KW) | 5HP(3.7KW) |
Cycling Motor | 0.5HP/(0.4KW) | 0.5HP/(0.4KW) |
Machine Dimensions (LxWxH) | 50″ x 54″ x 53″ | 1250×1370×1350mm |
Net Weight | 1584 lbs | 720 kgs |
