Description
PARTE: 3RE- D60M - ESPIGADORA DOBLE
Professional solution for volume producing two ends profile of panel furniture, door, solid wood floor, solid wood composite floor, PVC floor, MBF floor, wood-plastic composite with max thickness 85mm.
Characteristic
1. Each spindle can rotate , convenient to achieve angle-truncate , tenon, groove and etc
2. Can hoggers on cut-off saw that can discharge waste material more helpfully
3. Adopted widen by high precision linear orbit, machine can run in precision and wearable. It assure the precission when widen the working size , also can guarantee to fit your highly requirement for setting the working width
4. Orbit lubrication can reduce the frictions of slide when moving , increase the nature life of orbit as well
5. Supported with the roller bearing in the feeding belt , make the movement more stable and reduce the noise
6. Much better to infeed the big size panels with the lengthen chain belt design
7. Adjustable height on in-feed fence is better satisfied with basis positioning requirements for different thickness of wood panel
8. In order to assure every chain board with high precision , we use the high hardeness cast iron and treated with high tempertature and machining by CNC
9. The design of rigid column and carriage to ensure the needs of heavy-duty cutting
10. Text display for width setting .The reset accuracy can reach to ±0.3mm
11. Each spindle is equiped with high precision bearing , spindle speed of milling units reach to 7500r/min.
12. Each spindle is configureed with read out , can display the position of spindle veracious
13. Inverter to feed, feed 5-25m/min
14. Adopted the high class electric component to build up the perfect electric system can increase the stabilization
15. Throught PLC to the control pressure belt and adjustment automaticlly, make the workpieces more stable and veracious
16. Adopted excellent material to make of the precessure belts, keep good wearable
17. Top pressure and bottom conveyor belt has the design of two different speed , no matter before or behind the fence dot , can be achieved to feed against the benchmark .
18. Sealed safety enclosure is controlled by the pneumatic , can reduce noise levels ,improve extraction and operator safety
19. To equip with out-feed guide roller
20. Dust proof hood on guide of lathe bed to availably keep thread pole clean.
|
Specification & type
|
|
|
|
Working Thickness (mm) |
10 ~ 85 |
|
|
Working Width (mm) |
250 ~ 2500 |
|
|
Cutting circles(max~min) (mm)
|
Left Saw unit |
Ø160 ~ Ø200
|
|
Right Saw unit |
||
|
Left cut~off Saw |
Ø250 ~ Ø300
|
|
|
Right cut~off Saw |
||
|
Left and right milling unit |
Ø140 ~ Ø160 |
|
|
Spindle diameters(mm)
|
Left Saw unit |
Ø25.4
|
|
Right Saw unit |
||
|
Left cut~off Saw |
Ø35
|
|
|
Right cut~off Saw |
||
|
Left and right milling unit |
Ø40 |
|
|
Cutterhead length （mm) |
95 |
|
|
Basic motor powers
|
Left Saw unit |
3kW/4HP |
|
Right Saw unit |
3kW/4HP |
|
|
Left cut~off Saw |
7.5kW/10HP |
|
|
Right cut~off Saw |
7.5kW/10HP |
|
|
Left and right milling unit |
2×7.5kW/10HP |
|
|
Feed |
3kW/4HP |
|
|
Widen |
0.75kW/1HP |
|
|
Total motor power (kW) |
39.75kW/53HP |
|
|
Feed speed (m/min) |
5~ 25 |
|
|
Spindle speed （r/min) |
7500 |
|
|
Dust outlet diameter (mm) |
Ø120 |
|
|
Overall machine dimensions (L×W×H) (mm) |
4735×38100×1660 |
|
|
Weight (tons approx) (T) |
6 |
|
Payments & Returns
- Payment Methods
- N/A
Post Message
Sign in to ask the seller a question.
AMXmachinery1
COLECTOR DE POLVOS - 10 HP
PARTE: 2CK-DBS10 - COLECTOR DE POLVOS - 10 HP Is a high efficiency indoor dust collectors generating up to 5000 CFM and are available in 10HP or 15HP . Equipped with a low RPM (1750 RPM) blower is designed to run much quieter than other high RPM units. The 1-micron filter bags ensure optimum air filtration and can be manually shaken to for cleaning. The large 168 gallon self dumping collection bin comes on casters and can be conveniently lifted by a fork lift and tilted to dump the wood ...
AMXmachinery1
CENTRO DE TRABAJO PARA CASAS DE BLOQUES
PARTE: 4ST-TOPMASTER BECKHOFF - CENTRO DE TRABAJO PARA CASAS DE BLOQUESProduct DescriptionAutomatic working centre for Block-House type log houses and wood cabins.Maximum workpiece section 270 mm (width) x 320 mm (height)Minimum workpiece section 120 mm (width) x 140 mm (height)Automatic and precise gripper positioning by rack and pinion system powered by brushless motorEquipped with a Beckhoff Panel PC with 12-inch displayDirect import of .BTL files in version 10.6The working centre is equipped...
AMXmachinery1
DEPOSITO DE AUTODESCARGA
PARTE: 2EX- RH-L1.5 - DEPOSITO DE AUTODESCARGA These self dumping hoppers range in volume from 1 to 2 yards and all have a weight capacity of 1 ton.
AMXmachinery1

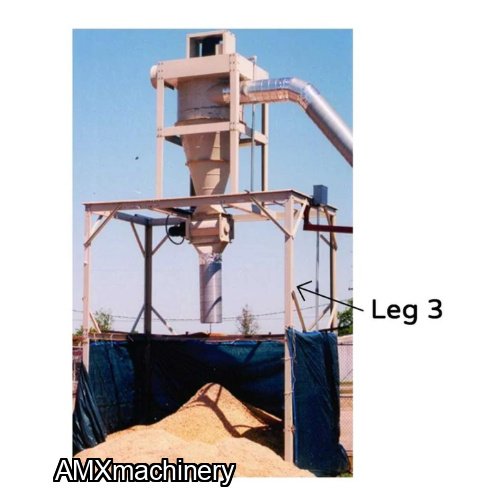

COLECTOR DE POLVOS - 20 HP - CICLON
