Identificador: 3208
Abierta
Descripción
PARTE: 2EX-DB-100 - EXTRACTOR DE POLVOS - 10 HP
Our dust blowers are made up of a heavy duty dynamically balanced vaneaxial fan
with safety guards on all inlets. The steel impeller is mounted directly to the shaft of
the stand-mounted motor. Motors are available from 5 to 25 horsepower, 3 phase
electric and have options for magnetic starters and remote control. Single phase
electric motors are available for blowers up to 7.5 horsepower.
Magnetic starter included.
See comparison chart below for specifications
|
|
|
10HP 3PH Dust Collection Blower |
15HP 3PH Dust Collection Blower, 7900CFM |
20HP 3PH Dust Blower |
25HP 3PH Dust Blower |
7.5HP 3PH Dust Blower |
|
Amps |
1PH: 27A @ 220V 3PH: 17A @ 220V |
27A @ 220V |
37A @ 220V |
49A @ 220V |
60A @ 220V |
1PH: 38A @ 220V 3PH: 20A @ 220V |
|
Cfm |
3200 |
6350 |
7900 |
8375 |
10350 |
4700 |
|
Fan rpm |
3450 |
3450 |
1725 |
1725 |
1725 |
3450 |
|
Fan size |
13" |
14" |
25" |
26" |
27" |
13.5" |
|
Horsepower |
5HP |
10HP |
15HP |
20HP |
25HP |
7.5HP |
|
Inlet-size |
10" |
12" |
14" |
16" |
18" |
12" |
|
Outlet size |
12" |
14" |
16" |
18" |
20" |
14" |
|
Phase |
1 or 3 |
3 |
3 |
3 |
3 |
1 or 3 |
|
Weight |
280 lbs |
360 lbs |
750 lbs |
810 lbs |
850 lbs |
330lbs |
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery1
CEPILLO 2 CARAS - SUPER HEAVY DUTY CON TRANSMISION
PARTE: 2CK-GT-HDAre suitable for the most demanding planing applications. The HD series are capable of high feed speeds with maximum stock removal capabilities. They feature a robust cast-iron body & industrial cardan drive system ensure high production planing day in and day out. The large diameter cutterheads are spiral type with two-sided solid carbide inserts which produce a clean finish with superior stock removal capacity. The spring loaded feed system passes the material over the bott...
-500x500.png)
AMXmachinery1
POLIPASTO - 2 TONS
PARTE: 12733 - POLIPASTO - 2 TONSCapacity (tons): 2Capacity (lb): 4000Lift Travel (feet): 20'Lift Speed (feet per minute): 26FPMVolts: 230/460VPhase: 3PhHoist Duty Class: H4Lifting Medium: ChainMinimum Distance Between Hooks (inches): 32"Length of Hoist power supply cord (ft): 3'Hoist Comes With Chain ContainerThis is a used hoist in good condition, it has been load tested and works like it shouldIn good condition, new pendant and chain bag
AMXmachinery1
TROMPO - MOTOR 7.5 HP - MESA DESLIZANTE
PARTE: 2CK-SS512CSB - TROMPO - MOTOR 7.5 HP - MESA DESLIZANTE Is a ruggedly built sliding table shaper with refined features well suited for demanding production environments. Its’ versatile design makes it the ideal shaping solution for edge-profiling, door & furniture components, mouldings, tenoning, and more. The sliding table is cast iron and runs on bearings for smooth and vibration free movement. The powerful dual direction 7.5HP driven spindle allows for optimum shaping even wit...
AMXmachinery1

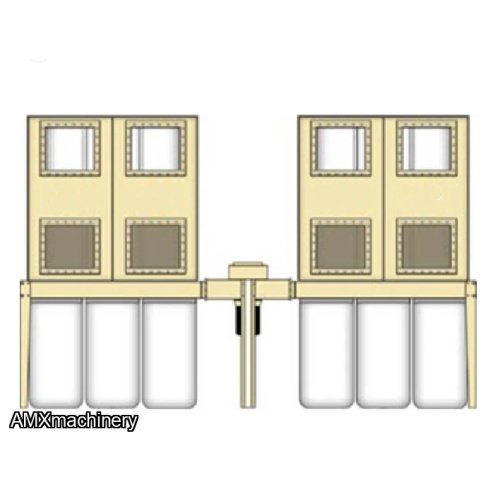

COLECTOR DE POLVOS EXTERIOR - 25 HP
