Descripción

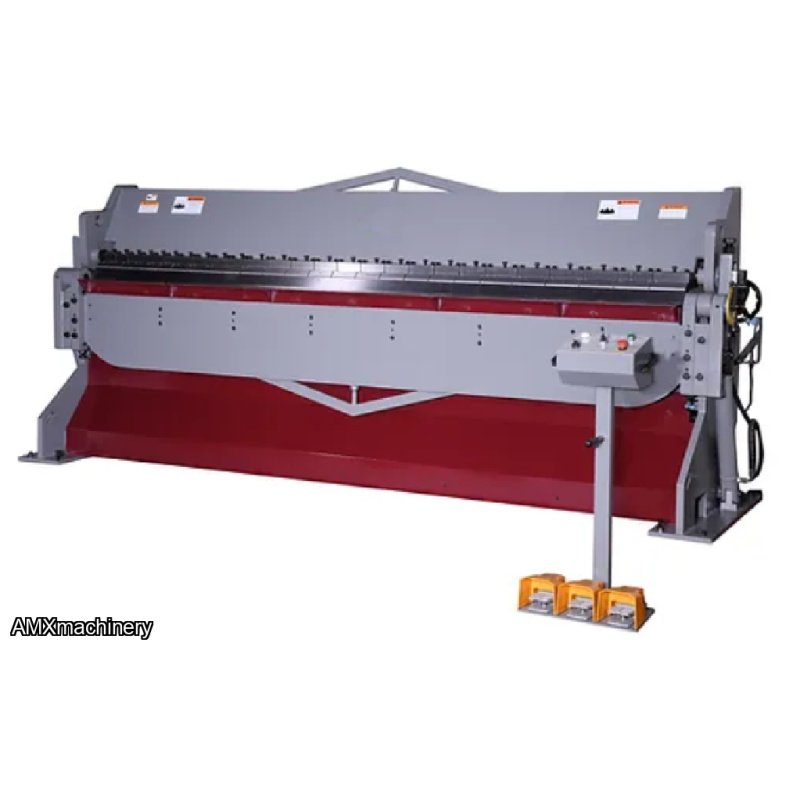

FRENO HIDRAULICO DE PLANO RECTO PARTE: 2GM-HSB-1014
- Taiwan Machines
- ISO 9001 certified
- Hydraulic adjustment for opening
- Hydraulic power clamping for workpiece
- 26” manual back gauge with handwheel
- 1” manual beam adjustment ( front and back )
- Min. reverse bend is ¾” (20mm)
- Heavy welded all steel construction for maximum rigidity
- Germany Rexroth Hydraulic logic system centrally located and quiet
- A wide guidebody ensures strong, stable, smooth & accurate movement
- Comes with one 10’ straight finger
- Central control panels on each side for convenient operation
- Jog and auto operation modes
- Overload protection and disconnect switch
- One year warranty for parts
- Assorted fingers
- 26” manual back gauge with one side handwheel operation
- Angle set up dial
- Hydraulic clamping system
- Foot pedal control for hydraulic clamping & auto mode
Max Bending Length: | 10' |
Bending capacity: |
10’x 14Ga |
Straight Finger Lenght: | 10'1" |
Bend Degree: | 135 |
Max. box & pan depth with | 4" |
Large Beam Opening: | 3" |
Manual Back Gauge: | 26” |
Oil Tank Gal. | 17 Gal. |
Hydraulic Oil: | Shell #68 or equivalent |
Main Motor | 5 HP 3 Phase Prewired: 220VAC 20A Optional: 440VAC 10A |
Weight | 6,850 lbs. |
Shipping Weight: | 6,950 lbs. |
Overall Dimensions | 142" x 46" x 66" |
Shipping Dimensions: | 153” x 41” x 67” |
