Identificador: 571
Abierta
Descripción

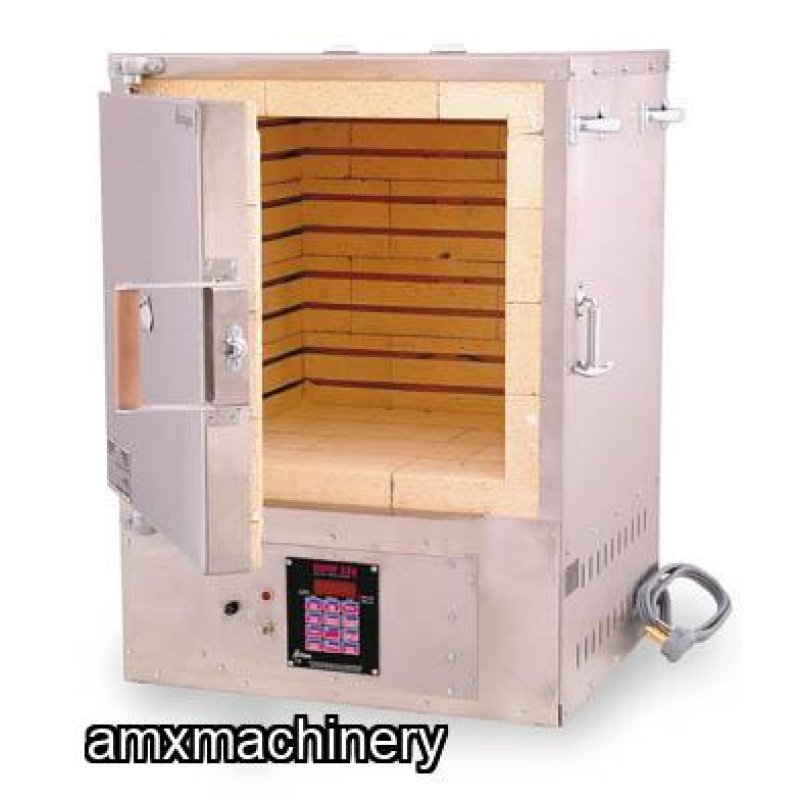

PARTE: 2PG-W18 – HORNO PARA CERAMICA, VIDRIO, METALES – 95 LITROS
220V, 1 Fase, 4840 Watts, 22 Amps
Medidas interiores: 457 mm ancho x 457 mm fondo x 457 mm alto
Volumen interior: 95.43 litros
Max. Temperatura: 926 grados centígrados
Nuevo con garantía
Made of durable insulating firebrick. The digital controller saves time, makes casting more reliable, and gives consistently repeatable results. The 12-key Sentry controller has 3 built-in, easy-to-use programs. You can also enter your own programs for your exact needs. Included is an on-off toggle switch.
Has a heavy-gauge stainless steel case to resist corrosion. Heating elements are recessed to protect the element, yet the element is still accessible for easy replacement. This furnace also includes a top vent with ceramic plug for lost wax burnout. A spring door latch tightly seals the door while permitting easy opening with one hand for removal of hot flasks.
Designed for production
Paragon’s warranty is not affected by frequency of use. Fire your new kiln every day if you want, even in commercial settings. That will have no effect on the warranty period.
Specifications
Max. Temperature: 1700F - 926C
Amps: 22
Phase: 1
Watts: 4840
Nema: 6-30R
Breaker Size: 30
Circuit Copper Wire Size: 10 gauge
TUV tested to CSA and UL Standard 499 : N
CE: N
IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns.
Control Type: Sentry Digital 12-key Non-Ceramic
Voltage: 220
Hertz: 60
Kiln Type: Front Loading Square
Sides: 4
Chamber Volume: 3.37 CU.FT. - 95.43 liters
Chamber Width: 18.00 IN - 457 mm
Chamber Depth: 18.00 IN - 457 mm
Chamber Height: 18.00 IN - 457 mm
The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom
Outer Size: 24.00W x 27.00D x 31.00H Inches (610W x 686D x 787H mm)
Ship Size: 34.00W x 34.00D x 43.00H Inches (864W x 864D x 1092H mm)
Ship Weight: 320.00 Lbs. - 145.15 Kg.
OPTIONS:
- Sentinel Controller, optional on new kilns
- Wax Tray and Grate
