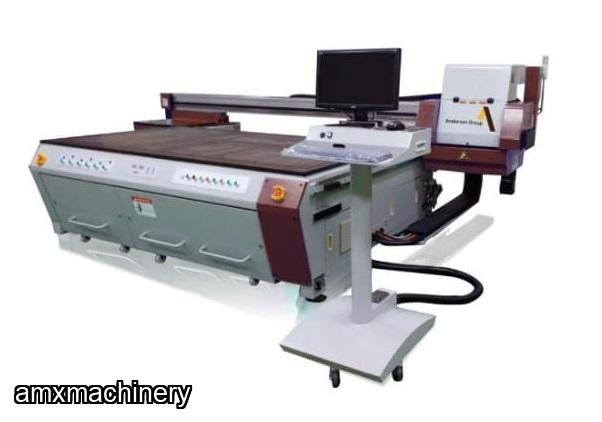

IMPRESORA UV INKJET

PARTE # 3AN- FJ-2512-C5H5 – IMPRESORA UV INKJET - MESA PLANA – 5 COLORES – ANDERSON

Para Tableros MFC, MDF, Acrilico, Pisos PVC, Azulejos, Vidrio

Nueva con garantia

Video de la maquina trabajando:     VIDEO 1

Basic Specifications

1. Print Heads

- Piezo Drop On Demand InkJet head; 512 nozzles, Model No KM 512iSHB M

- Drop volume 6 pl

- Max. 7 heads space with one line arrangement refer picture below

- Basic Configuration with K (Black), C (Cyan), M (Magenta), Y (Yellow), W (White), 5 color

5print heads

- Ink type: UV curable

- Ink color arrangement Black Cyan , Magenta , Yellow , White , Primer and Varnish

- P rimer print by print head function is option able

- Varnish function is option able

2. Printing Area:

- Maximum Width 25 50mm 100.39 inch)

- Maximum Length 1250mm 4 9.21 inch)

- Maximum Height 1 00 mm (3.94

3. Highest Resolution:

- Support resolution:

            720x360, 720x720, 720x900, 720x1080, 720x1440,

            1440x360, 1440x540, 1440x720, 1440x900, 1440x1080 dpi

- Highest Resolution: 1440 x 1080

4. Printing Speed:

The print speed list below based on 2550 x1250 mm (100.39x49.21 inch) print size

Note:

(1) The Printing Speed may different with different printing area and print setting

(2) Normally, Lower printing speed setting can get better quality

(3) Please depend on the quality request to select proper setting

5. Working Table:

- Maximum thickness of workpiece is 100mm(3.94 inch)

- Material of table top is hardphenolic without grooves and 3 mm diameter vacuum holes

- Flatbed with gantry moving

- (6) Six suction zones controlled by switch button

6. UV Curing Device / UV:

- LED UV on both side of print carriage(Left and Right side, one of each) arc length 115mm

- Max. power > 5W.UV

- 7 stage UV intensity control.

- Intensity Control Range, 40%、50%、60%、70%、80%、90%、100%

7. Controller:

- Anderson inkjet control system for FJ series, Windows CE operation system

- RIP software: ONYX Postershop, DPC Edition

- Image data Interface: Gigabits Ethernet

8. Vacuum system:

- Blower: (1) one 2HP (1.5KW)

9. Miscellaneous:

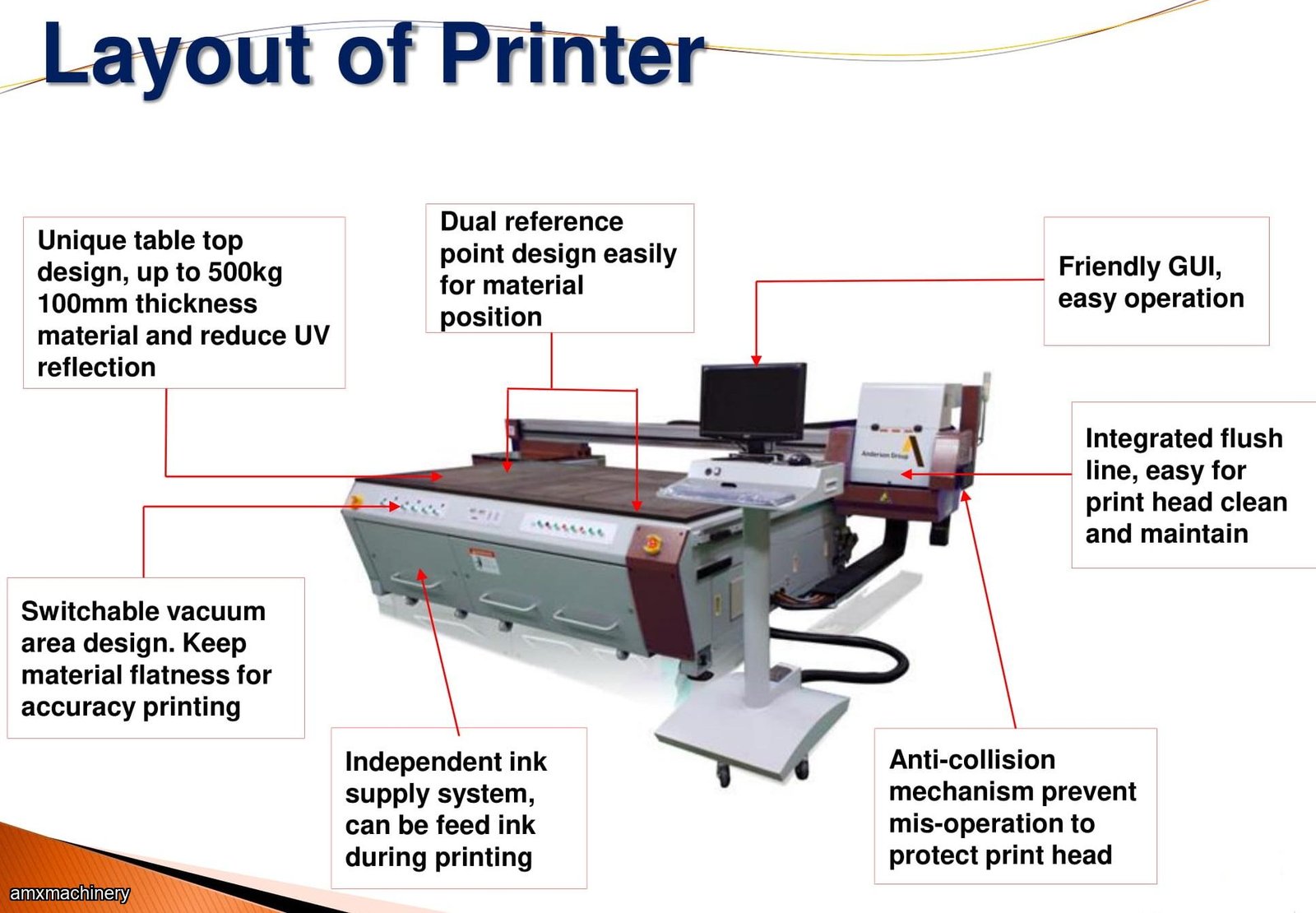

- Machine color: Standard ANDI color

- 1 Liter of each ink color, 1 Liter of primer ink, 1 Liter of White inkand2L cleaner will be provided with machine

- The anti–collision system is included

- Emergency stop immediately function is included

- White ink circulation function is included

- Auto Batch (multiple file printing or repeat printing) function is included

- Self-generate negative pressure control is included

10. Environment Required:

- Foot Print: 4750 X 3000 mm

- Machine working height：1550mm(5.08 ft.)

- Compressed Air requirement: No Need

- Recommended environmental temp：Celsius15~30 degrees(59~86 Fahrenheit)

- Power requirement：220VAC, 50/60Hz, 20.5A, Single Phase

Note: If the operation Voltage of /- 5% cannot be maintained, a voltage stabilizer will have to be installed at customer’s expense.
