Identificador: 78
Abierta
Descripción

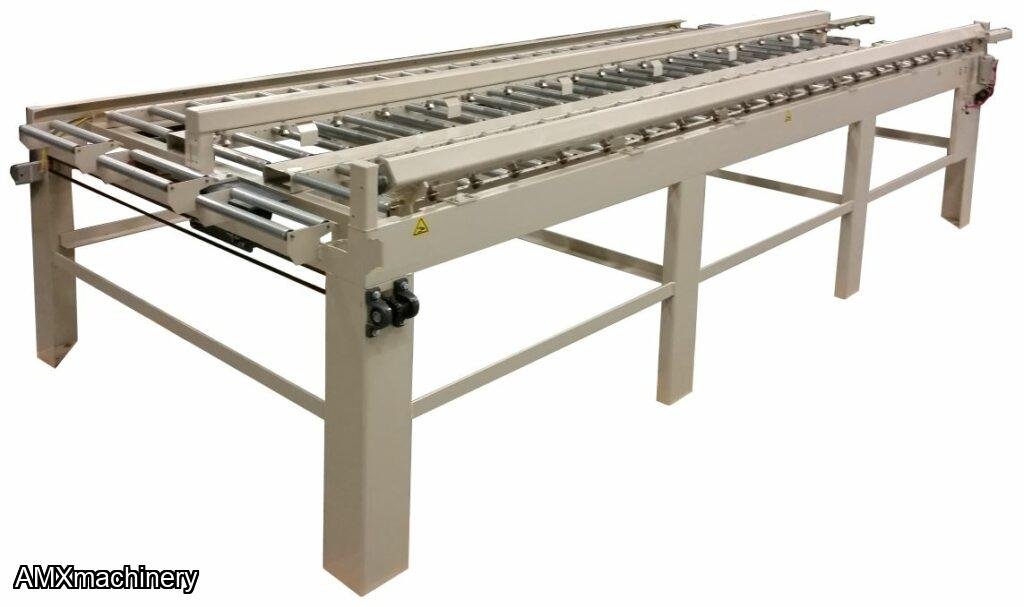

PARTE: 2EV-4253 - INDEX TABLE - EVANS 4253
Semi-automatica para laminacion de tableros PVA, alimentacion izq a der.
Semi-automatic Index Table for PVA Panel Laminating
Standard Features:
- Left to Right Feed
- Automatic Board Drop
- Adjustable Board Guides
- Hand Crank Width Adjustment
- Pneumatic Break to Lock Width
- Custom Designed Conveyor Rollers
- Max. Board Size: 62" W X 145" L
- Min. Substrate Size: 9" W X 27" L
- Max Board Thickness: 1.5"
- Min Board Thickness: .375
- In Feed Height: 43"
- Out Feed Height: 40"
- Footprint: 177" L x 87" W
- Electrical: N/A
- Air: 100 PSI
- Shipping Dimensions: 179" L X 90" W X 55" H
- Crated Weight: 2500 LBS
Options:
- Other than standard work height
- Right to Left hand feed
