Identificador: 79
Abierta
Descripción

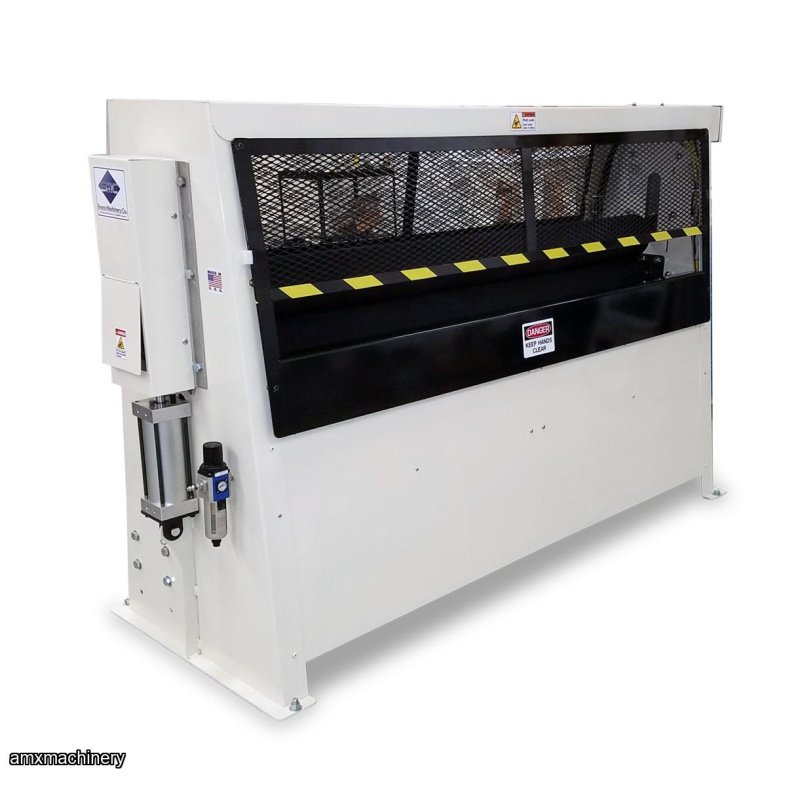

PARTE # EV-0257 – PICH ROLLER 62” - RODILLOS PLANOS - EVANS 0257
Pinch Roller 62" capacity
Solid top and bottom rollers for flat panel laminating
Safety Gates on In-Feed and Out-Feed
Solid Top and Bottom Rollers
Feed Rate: 50’ FPM
Maximum Width: 62”
Maximum Thickness: 2”
Work Height: 30-1/2”
(Optional Riser Available)
Drive Motor: ½ HP
Electrical: 120 V, 1 PH, 60 Hz (Options Available)
Air Requirement: 100 PSI
Crated weight 790 LBS. Shipping dimensions 85” long X 33” wide X 57” high
Options:
Variable speed control 0-50, ½ HP DC motor #01667
Custom Riser Base
220 volt 1 phase 50hz
Up to 4” roll opening
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
TALADRO HORIZONTAL - PARA CABEZAL SENCILLO O MULTIPLE - 2 HP
PARTE: 2CA-BR-25 - TALADRO HORIZONTAL - PARA CABEZAL SENCILLO O MULTIPLE - 2 HPMotor eléctrico 2 HP,
220V, 3 fases
Pistón neumático con movimiento
atrás y adelanteStandard with Drill Chuck Optional with Multiple Drill HeadFeatures:• Pneumatic clamp and drill head travel, for fast and easy operating.• Precision large travel piston to insure accurate drilling position.• Heavy-duty cast iron frame for durability long period of use.• Suitable and affordable for industrial and small...
AMXmachinery
RETESTADORA
PARTE # 2DO-PAO-CR10 - REDONDEADORA DE ESQUINAS - RETESTADORANUEVA CON GARANTIAESPESOR DEL TABLERO (MÍN. / MÁX.): 10/50 MMVELOCIDAD FRESA: 24000 RPMPOTENCIA MOTOR NEUMÁTICO: 0.37 KWFRESAS DE WIDIA DIÁMETRO MÁX.: Ø 30 mm Z2 R=2 mmTOMA DE ASPIRACION: Ø 100 MMPESO: 100 KGSAIRE COMPRIMIDO SUFICIENTE Y CONSTANTE: 6,5 - (95 PSI) BarDIMENSIONES TOTALES OCUPADAS: 780 x 720 x 1250 MMEMISIÓN SONORA SEGÚN NORMAS ISO 7960 – EN VACÍO EN ENTRADA / SALIDA: 70,6 / 70,4 LA eq [dB(A)]EMISIÓN DEL RUID...
-500x500.jpg)
AMXmachinery
PARTE: 2MA-FP-5285CB – LIJADORA - CALIBRADORA DE METAL – 52” ANCHO - 2 LIJAS
PARTE:
2MA-FP-5285CB – LIJADORA - CALIBRADORA DE METAL – 52” ANCHO - 2 LIJAS
NUEVA CON
GARANTIA
Standard
Features:
Abrasive
belt size: 52” x 86”
10”
diameter heavy duty drum for perfect graining
6-1/8”
wide opening for max. workpiece thickness 6”
Motorized
Table Lift with LED display
Variable
Speed Conveyor
Conveyor
Forward & Reverse
Belt
Safety Overtravel Switches
Electronic
Eye Belt Tracking. Belt tracking adjusting lever ( Belt T...
AMXmachinery
REASERRADORA HORIZONTAL – 1 SIERRA BANDA – 400 MM ANCHO X 250 MM ALTO
PARTE:
3HP-HP-400PB - REASERRADORA HORIZONTAL – 1 SIERRA BANDA – 400 MM ANCHO X 250 MM
ALTO
Nueva con garantía – Uso Rudo
Specification
1.With digital readout
2.Max. working size: 400mm(W) x 250mm(H)
3.Distance from blade to conveyor Table: 3-250mm
4.Conveyor belt size: 385mm(W) x 5470mm(L)
5.Saw wheel dimension: Φ28" x
2"(Thickness)
6.Max. infeed speed: 16M/min OPTIONAL: 25M/min.
7.Saw wheel motor: 30HP
8.Hydraulic pressure: 50-55kgs/cm2
9.Dust hood d...
