Identificador: 141
Abierta
Descripción

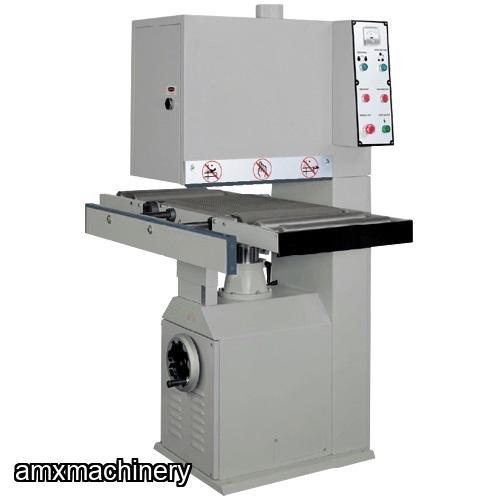

PARTE # 2TA-CA-1554 - LIJADORA - CALIBRADORA - 15" ANCHO
- Combination head configuration drum and platen produces a finer finishing result.
- Pneumatic controlled OSCILLATING BELT SYSTEM and easy adjustable pressure for sanding different wood materials such as veneer, hard wood and soft wood.
- Conveyor table roller extension, ideal for big panel sanding such as doors, window frames, etc.
- Specially designed for one side open body sanding up to 30 panels with two passer.
- The emergency stop device ensures instant shot shown of machine running.
- This unit is ideal for the fine finishing requirements of general cabinet parts.
- All rollers and pulley have balancing adjustments ensuring maximum stability.
- High quality conveyor belt gives an outstanding gripping performance.
- Spiral shaped and grooved contact roller is ideal for calibration sanding.
- Infeed and outfeed are spring-loaded to ensure positive roller feeding.
- An electric sensor for excellent operation controls the belt oscillation.
- Designed for efficient small panel sanding at jaw body.
- Heavy-duty construction with precision working parts.
- Air cylinder control tension belt.
- Opcional: Extension rail
SPECIFICATIONS | CA-1554 |
Sanding Width | 15" |
Sanding Belt Size | 15" x 54" |
Conveyer Size | 15" x 64" |
Min. Working Length | 12" |
Max. Working Thickness | 6" |
Feeding Speed | 20 FPM |
Sanding Motor | 7½ HP |
Feeding Motor | ½ HP |
Air Requirement | 6 CFM |
N.W. | 840 LBS |
G.W. | 960 LBS |
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
SIERRA OPTIMIZADORA – DIMTER WEINIG S90
PARTE: 12392 – SIERRA OPTIMIZADORA
– DIMTER WEINIG S90
USADA – MUY BUENAS CONDICIONES
Incluye 2 empujadores para ClasificarYear
of Manufacture: 2005Condition:
GoodElectric: 480 Voltage, 60 Cycle, 3 Phase GREAT
PUSHFEED SAW WITH ACCURATE CUTTING, CRAYON DEFECTING OF INBOUND LUMBER UP TO 14'0"
LENGTHS.Working
dimensions: Width 2" to 8"; thickness 3/8" to 2" and length
3' to 14-3/4" (4.5M).Motor:
10 HP saw motor at 4,800 RPM. with 16" saw blade.Feed:
Variable speed PUSH up to...
-500x500.jpg)
AMXmachinery
PARTE: 12629 - CONTORNEADORA – 2 FRESADORAS - BALESTRINI – MINI C
PARTE: 12629 - CONTORNEADORA – 2 FRESADORAS - BALESTRINI –
MINI C
USADA – BUENAS CONDICIONES
AMXmachinery
SISTEMA FINGER JOINT - 2 TROMPOS - 1 ENSAMBLADORA - MARCA HPC
PARTE:
12371 - SISTEMA FINGER JOINT - 2 TROMPOS - 1 ENSAMBLADORA - MARCA HPC
USADO
- MUY BUENAS CONDICIONES
Make HPC
Year 1997
Phase 3 PHASE
Voltage 220 VOLT
Estimated Dimensions
Foot print of line 52' x 15'
Estimated Weight 10,000
Lbs (approx)
DESCRIPTION:
HPC Double Sided
Automatic finger joint line
Station 1 squares one
end and cuts initial finger joint
Station 2 squares the
other end, cuts finger joint, and applies glue.
Station 3 assembles an...
AMXmachinery
TORNO COPIADOR CON NAVAJA TRASERA – GOODSPEED 1240A
PARTE: 12166 – TORNO COPIADOR CON NAVAJA TRASERA – GOODSPEED
1240A
USADO
– EN BUENAS CONDICIONES
CAPACIDAD LARGO: 4” – 44”
CAPACIDAD DIAMETRO: 1/2” – 4”
MOTOR PRINCIPAL: 7-1/2 HP, 3 FASES,
60 HZ, 1800-3200 RPM
MOTOR BOMBA HIDRAULICA: 3 HP
CAPACIDAD DE PRODUCCION:
4
- 7 PIEZAS/MIN PARA 24”
3 – 5 PIEZAS/MIN PARA 35”
2 – 3 PIEZAS/MIN PARA 44”
PESO CON EMPAQUE: 6700 LBS
ELECTRICOS:
208V, 3 FASES
* ENVIENOS EMAIL PARA
RECIBIR TO...
