Identificador: 2848
Abierta
Descripción

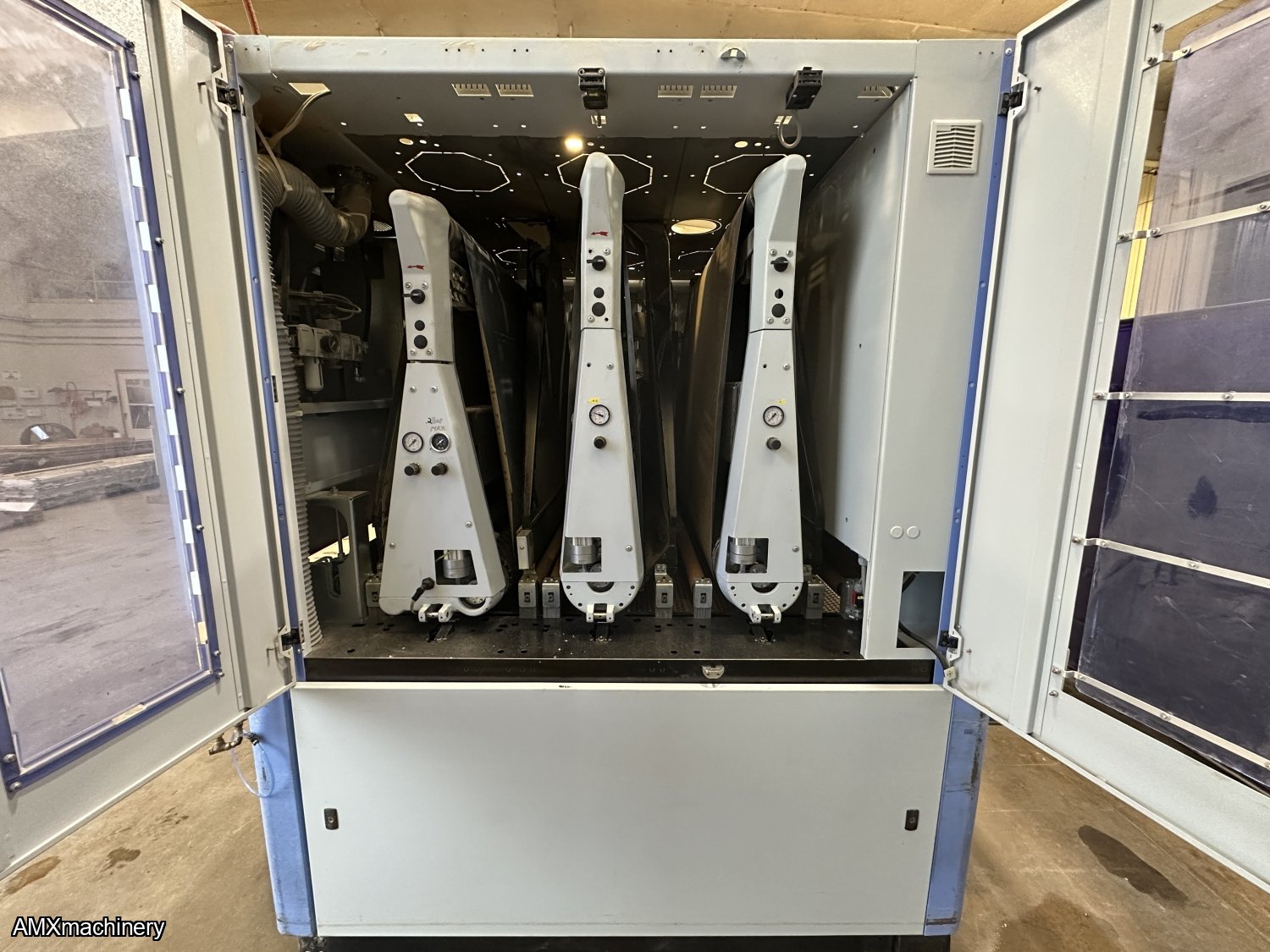

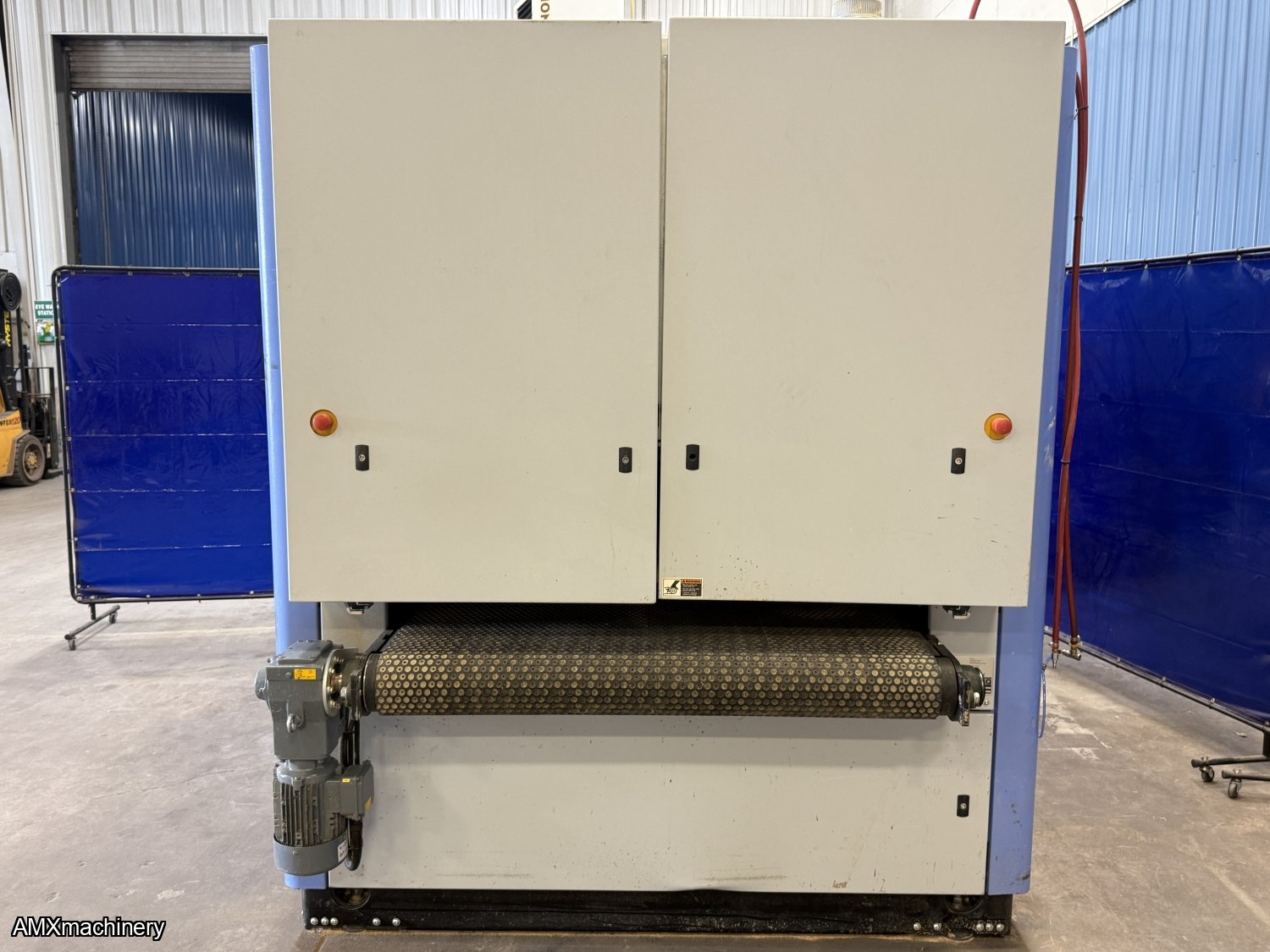

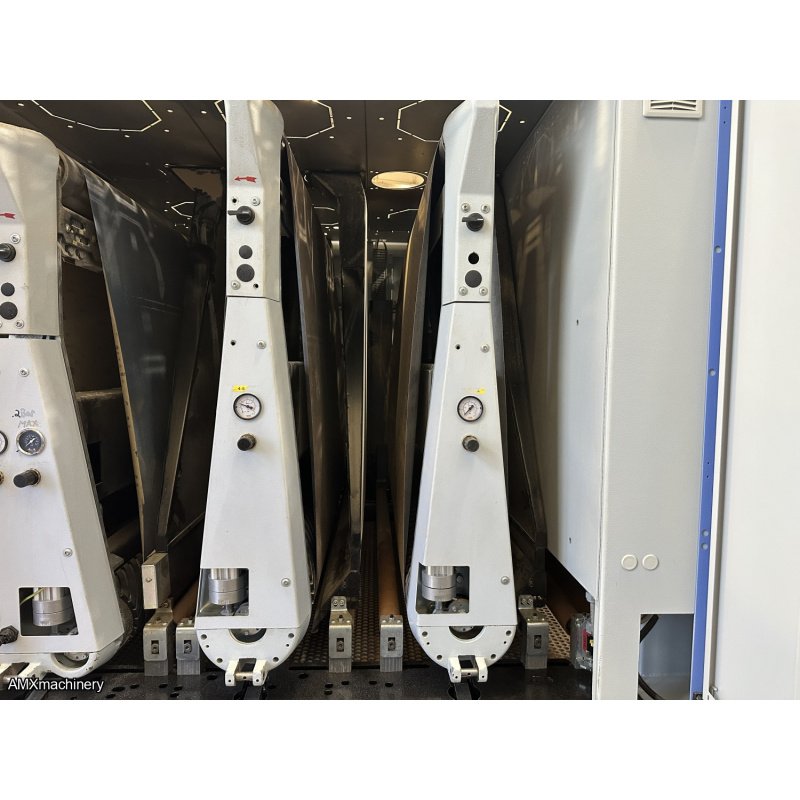

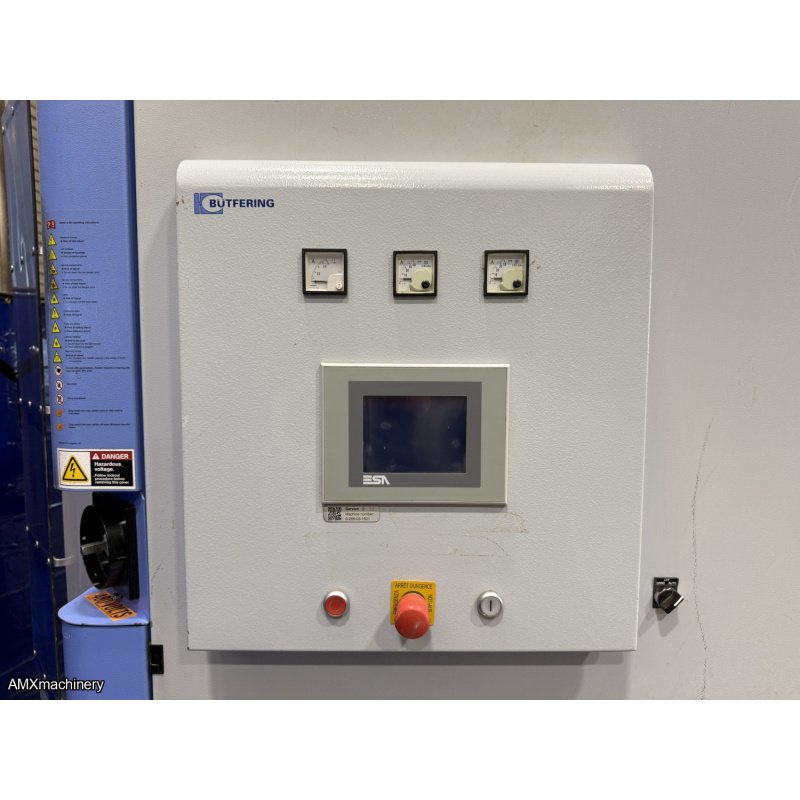

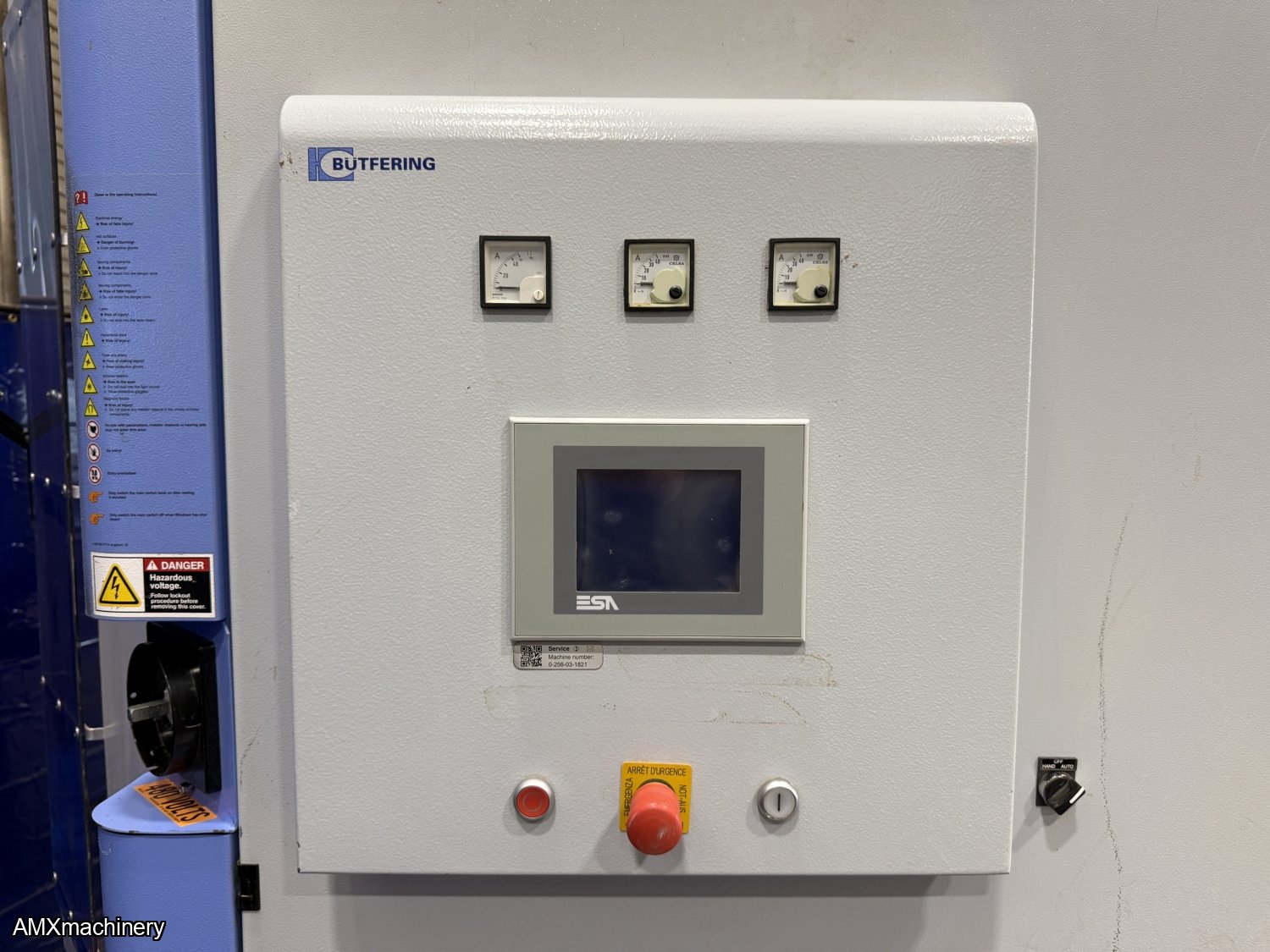

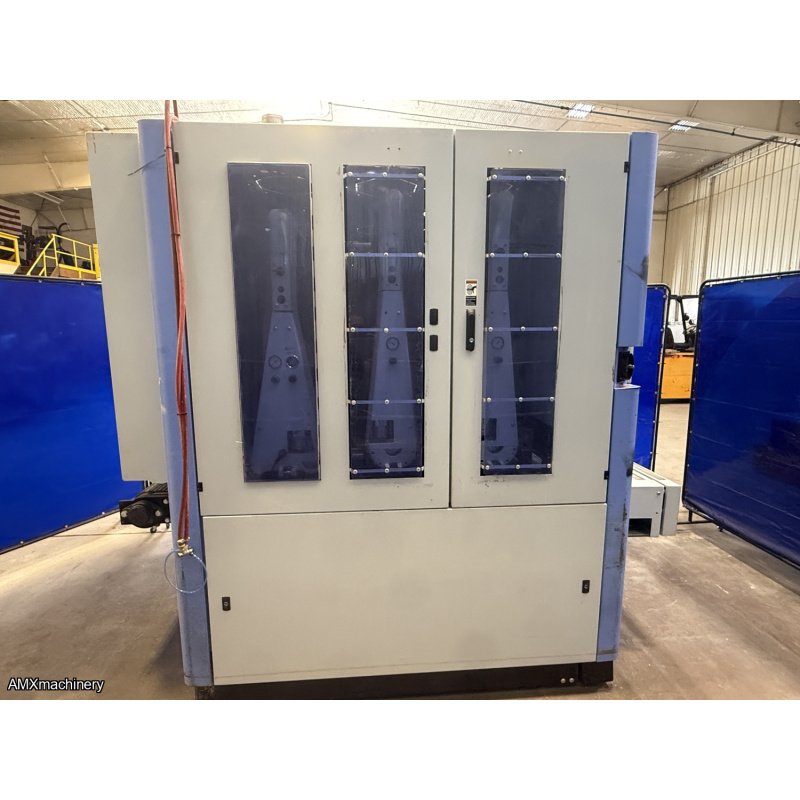

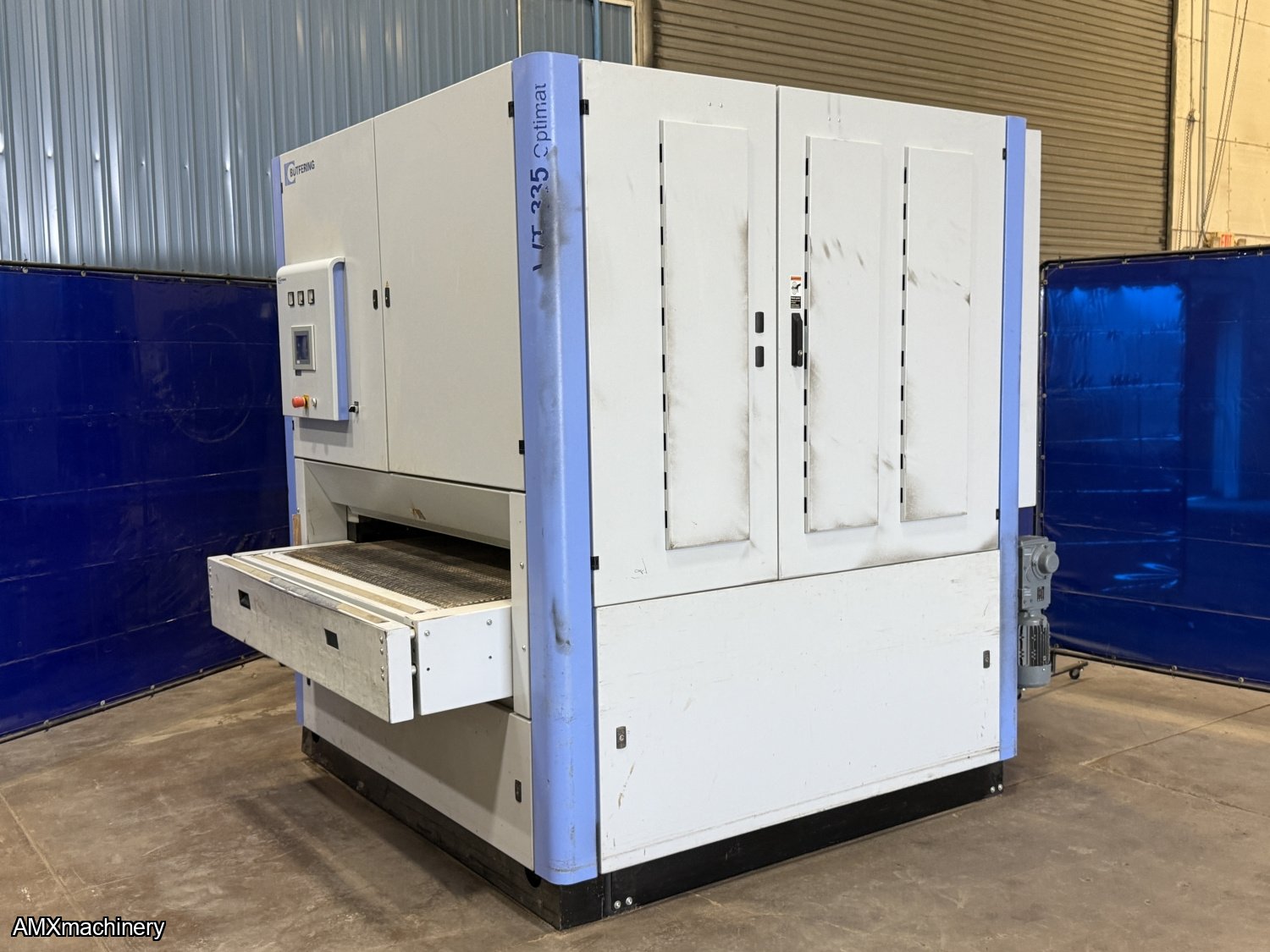

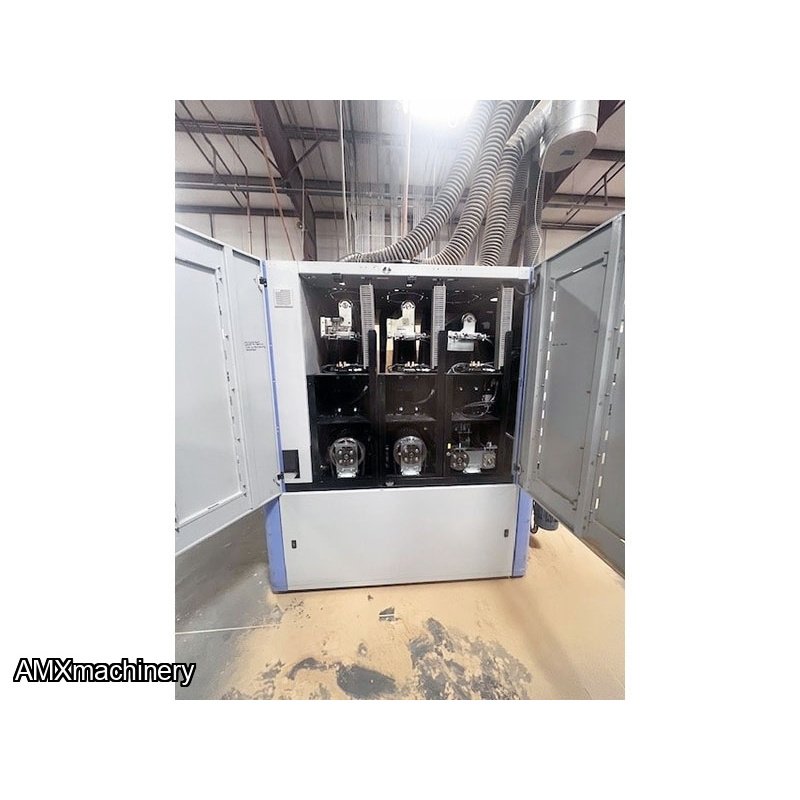

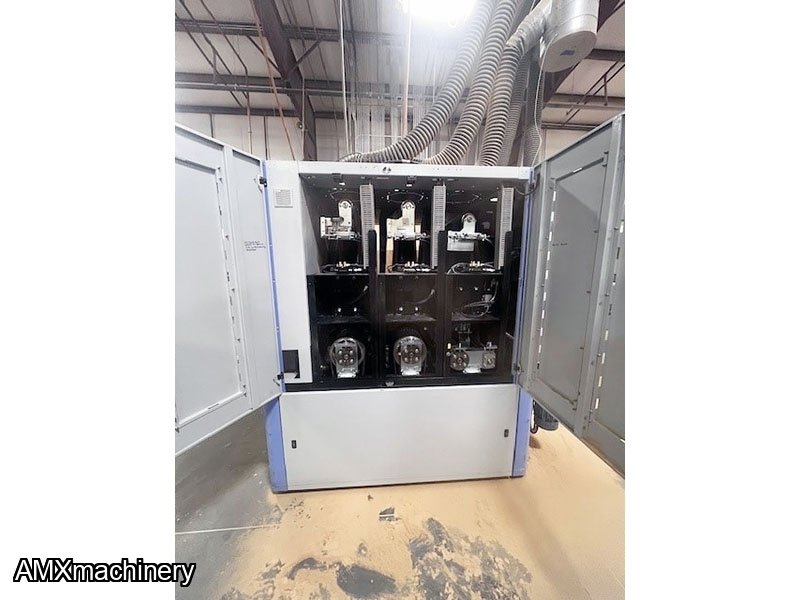

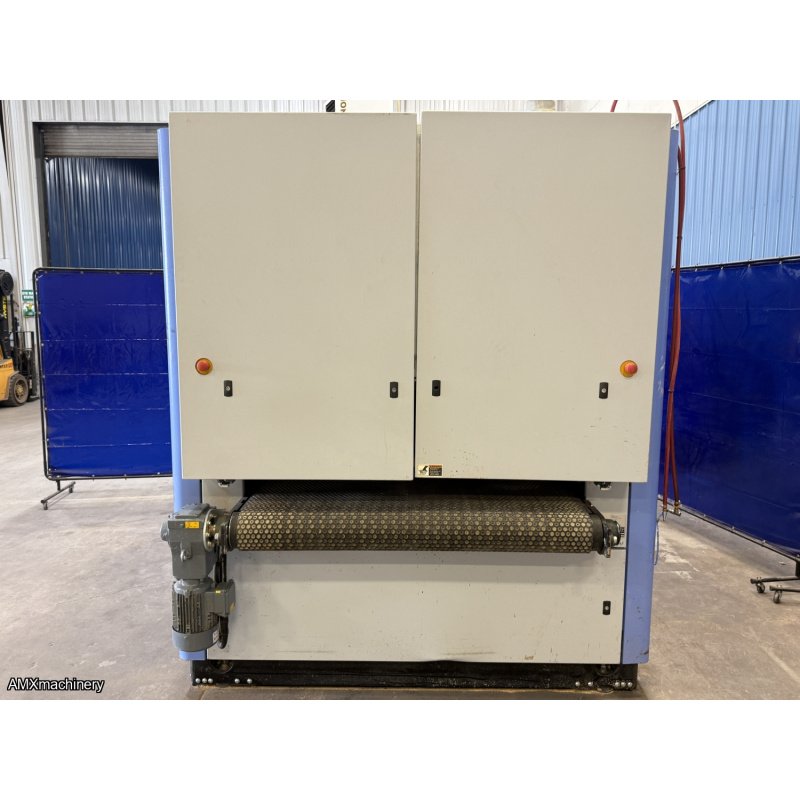

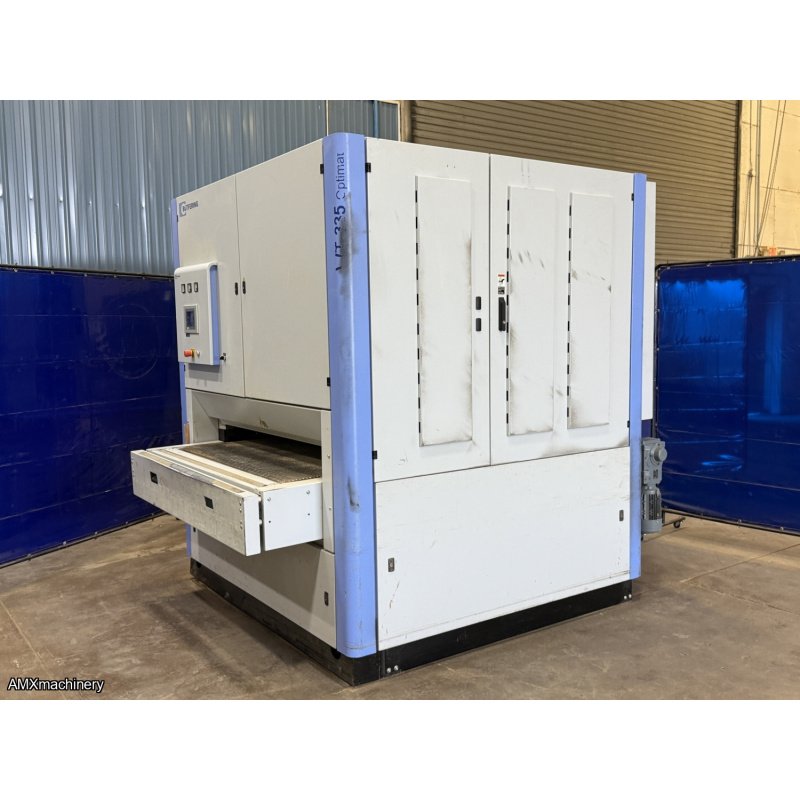

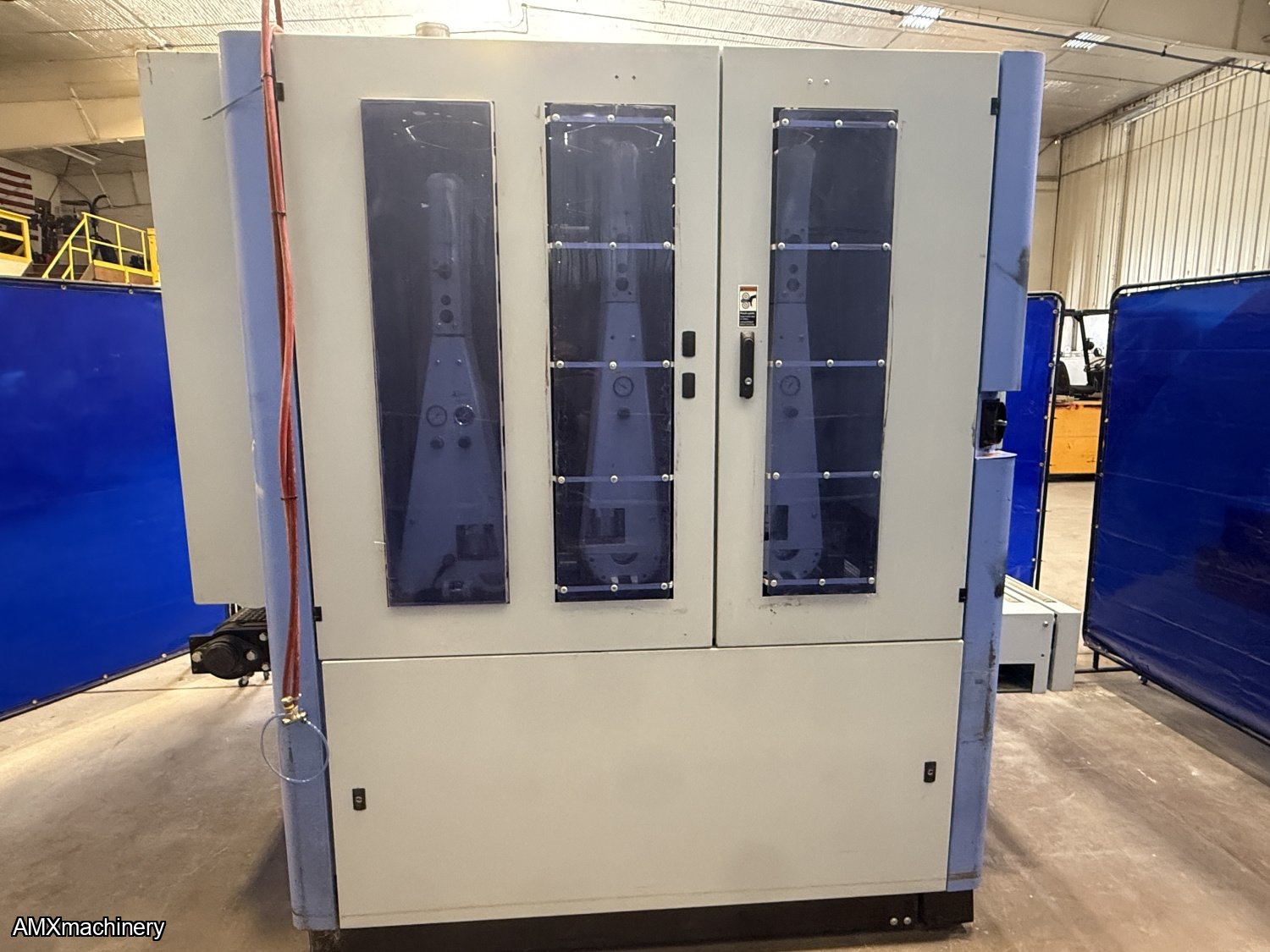

PARTE: 12683 - LIJADORA - CALIBRADORA - BANDA ANCHA – 3 LIJAS - 53” ANCHO

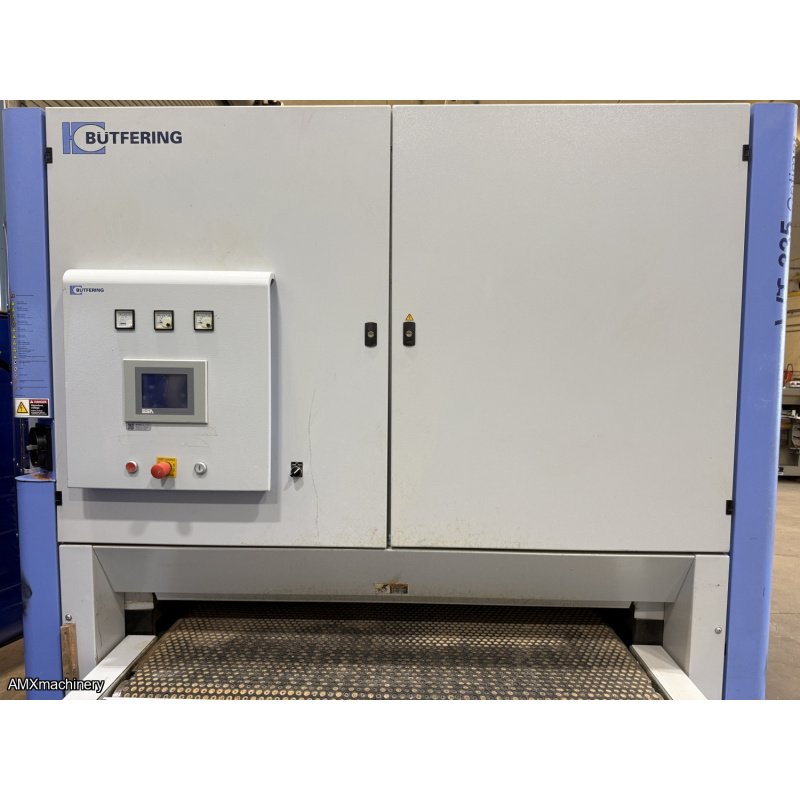

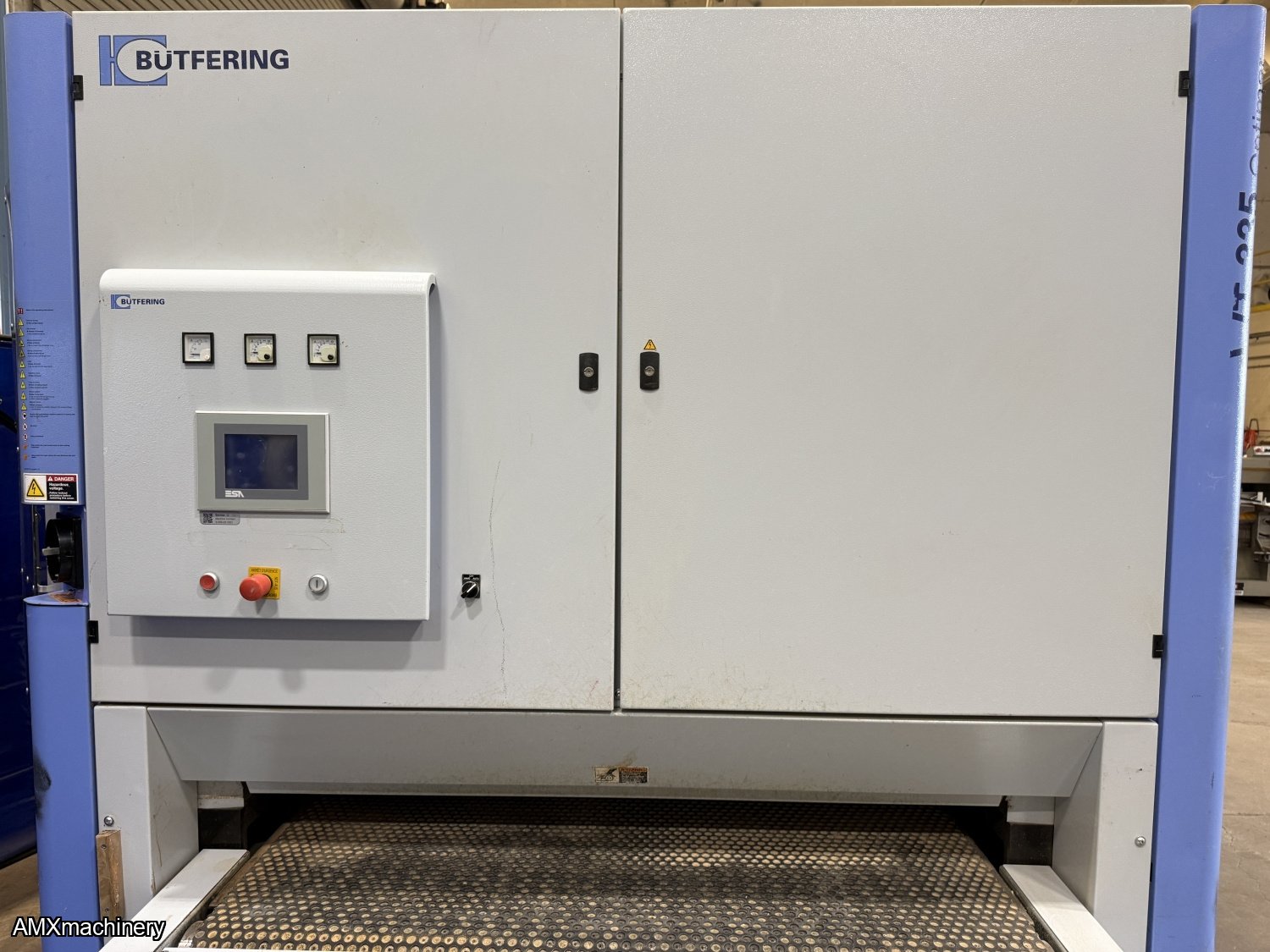

BUTFERING
Usada en buenas condiciones
Width capacity 1,350mm (53")
Work Piece Thickness: 3mm to 160mm (1/8" to 6")
Abrasive Belt Size: 1,370mm (53") x 2,620mm (103")

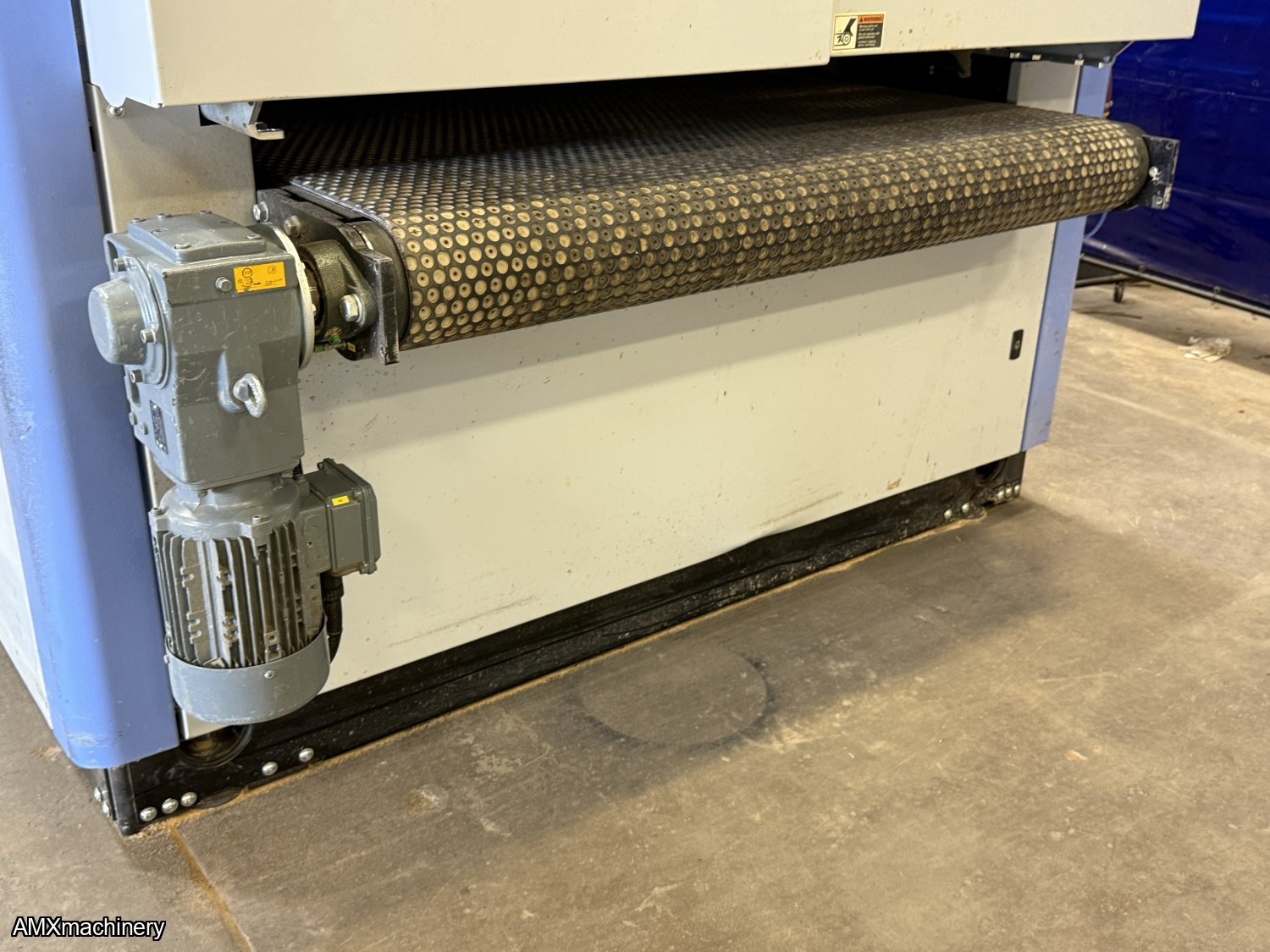

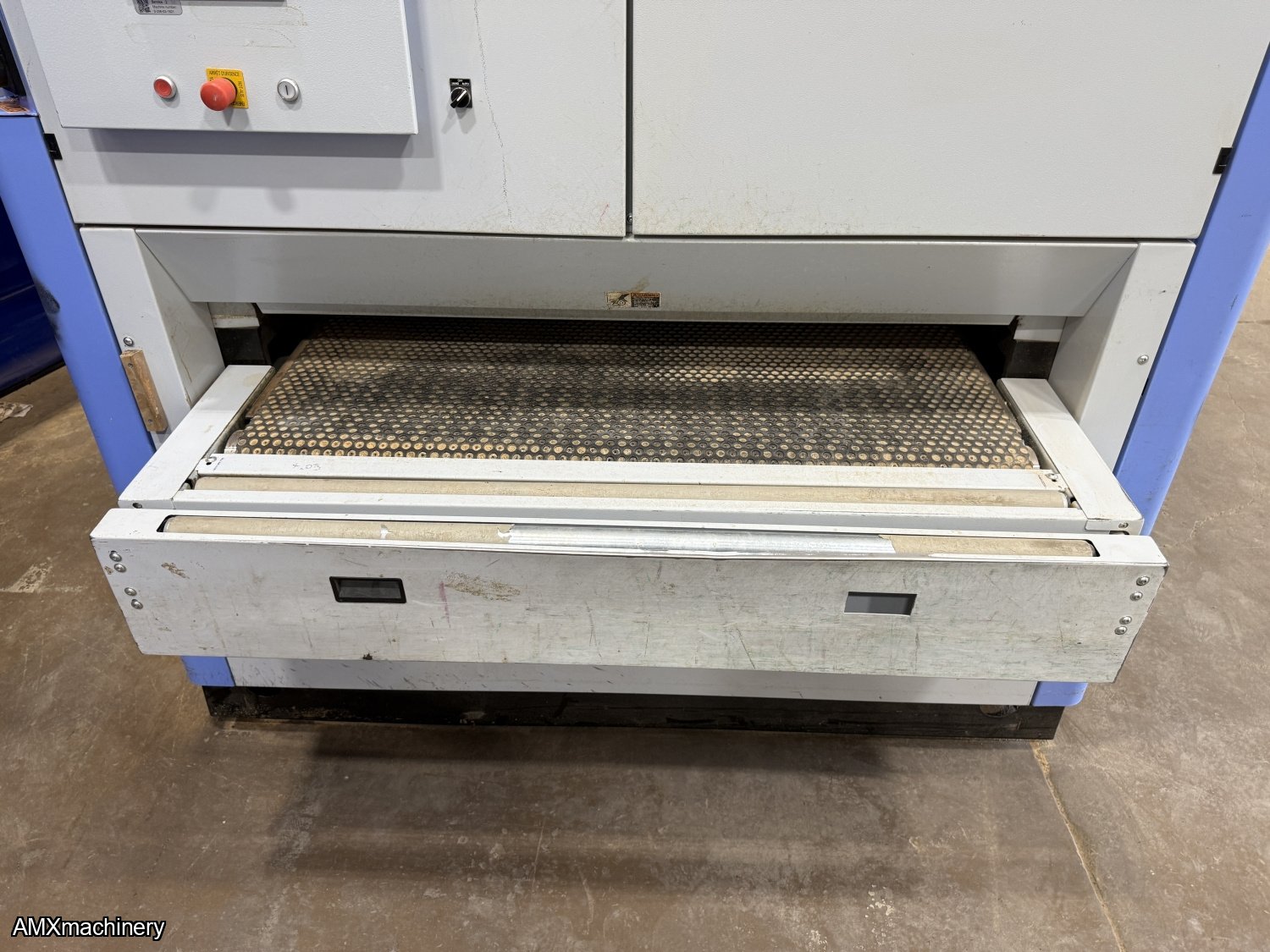

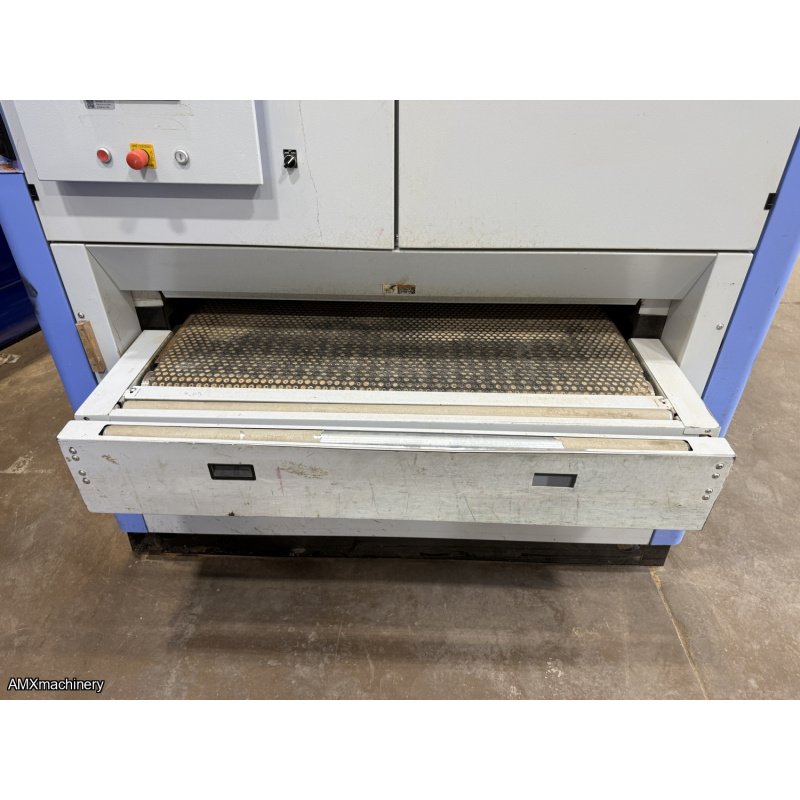

Variable Feed Vacuum Feed Belt: 2.5 to 13 m/min (8 to 42 ft/min)
Vacuum Motor: 7.5 HP

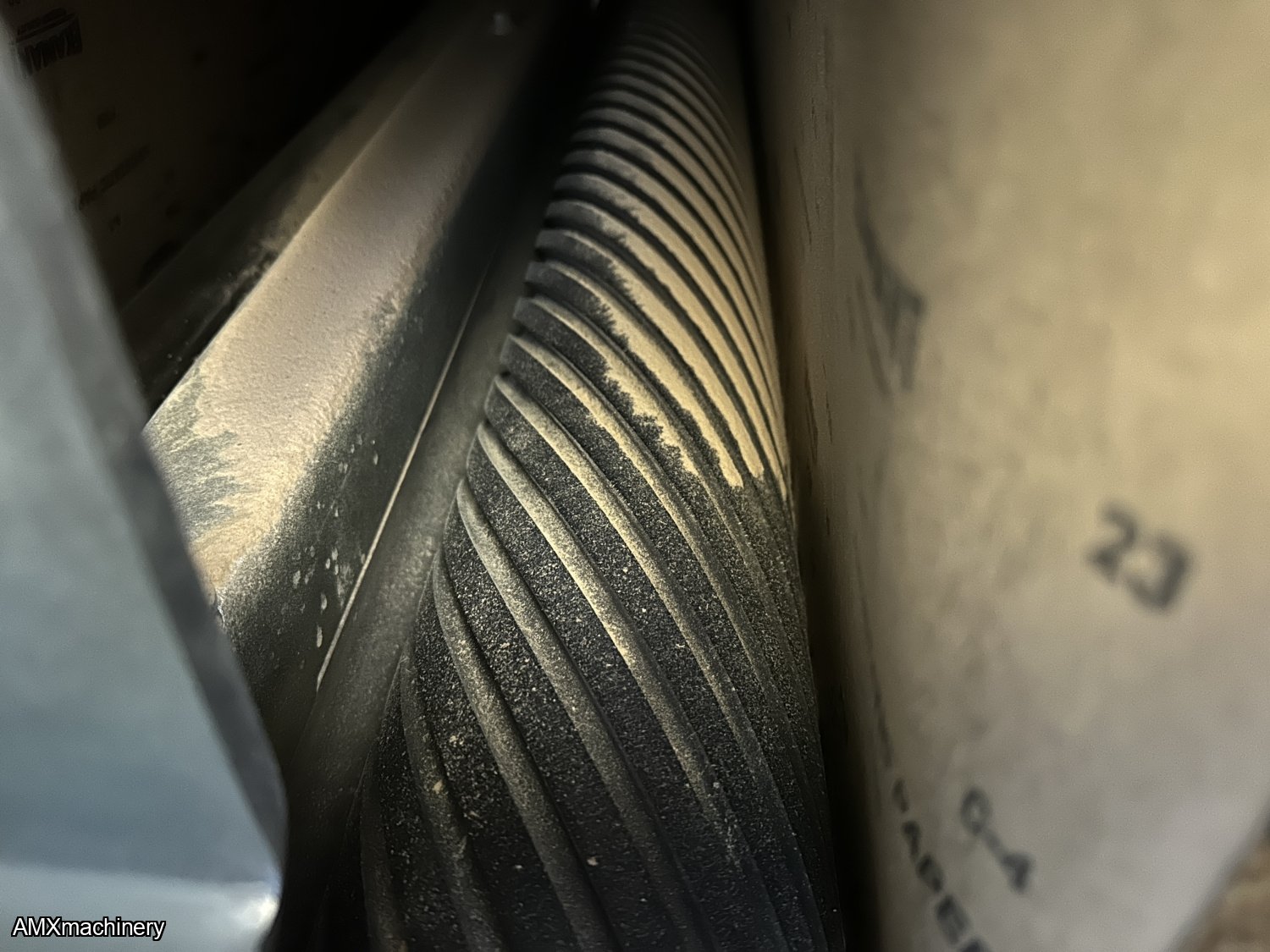

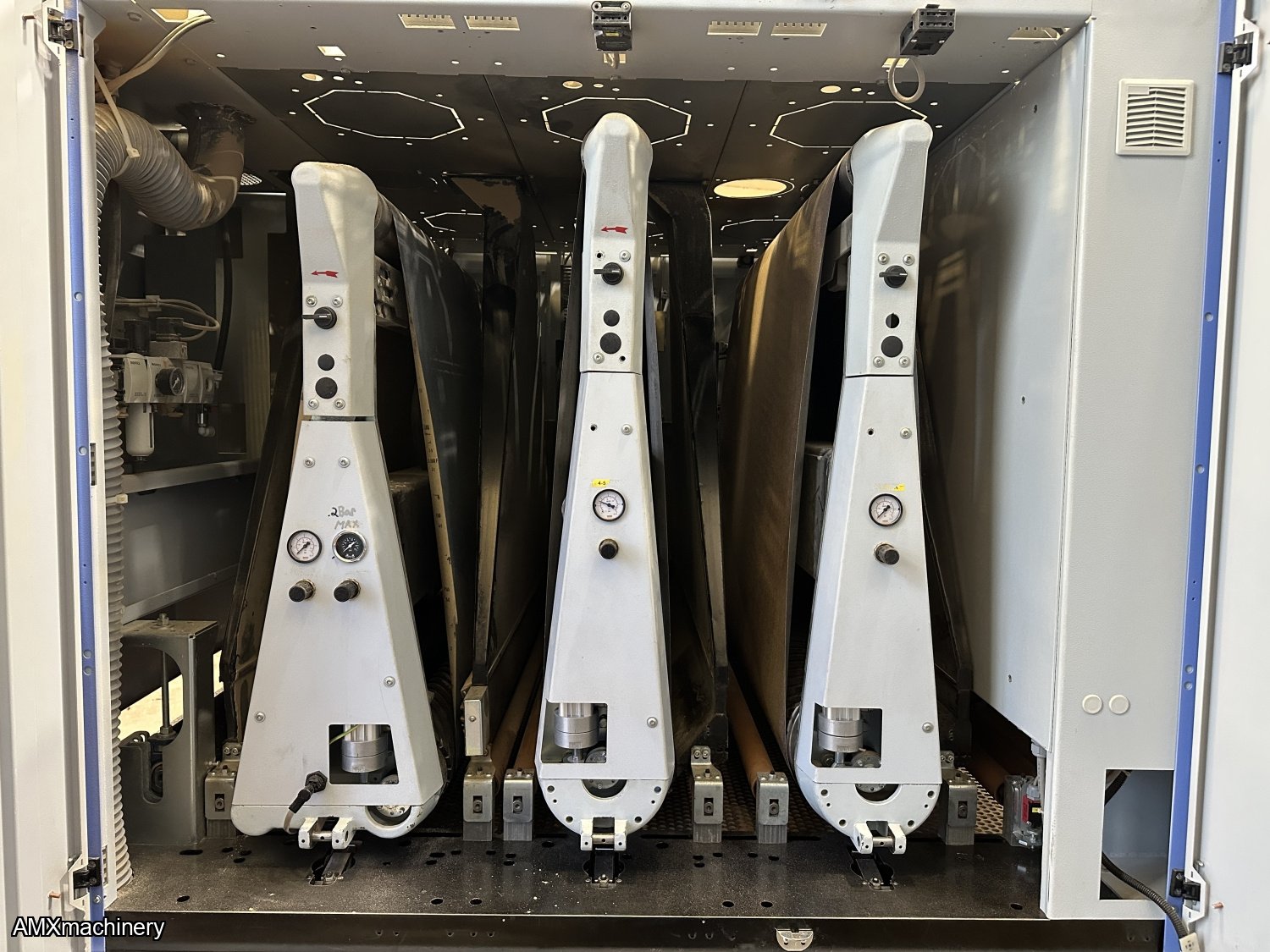

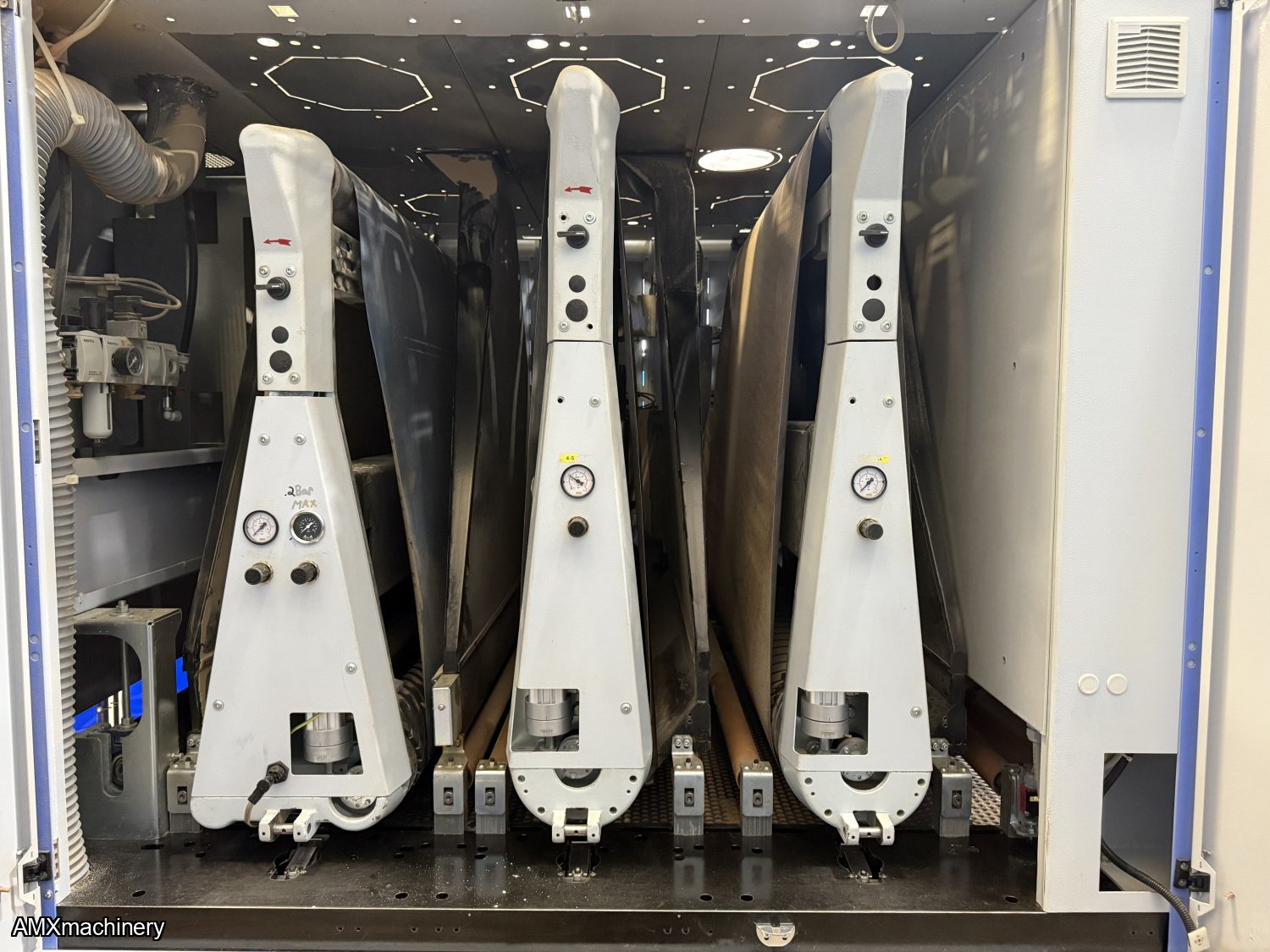

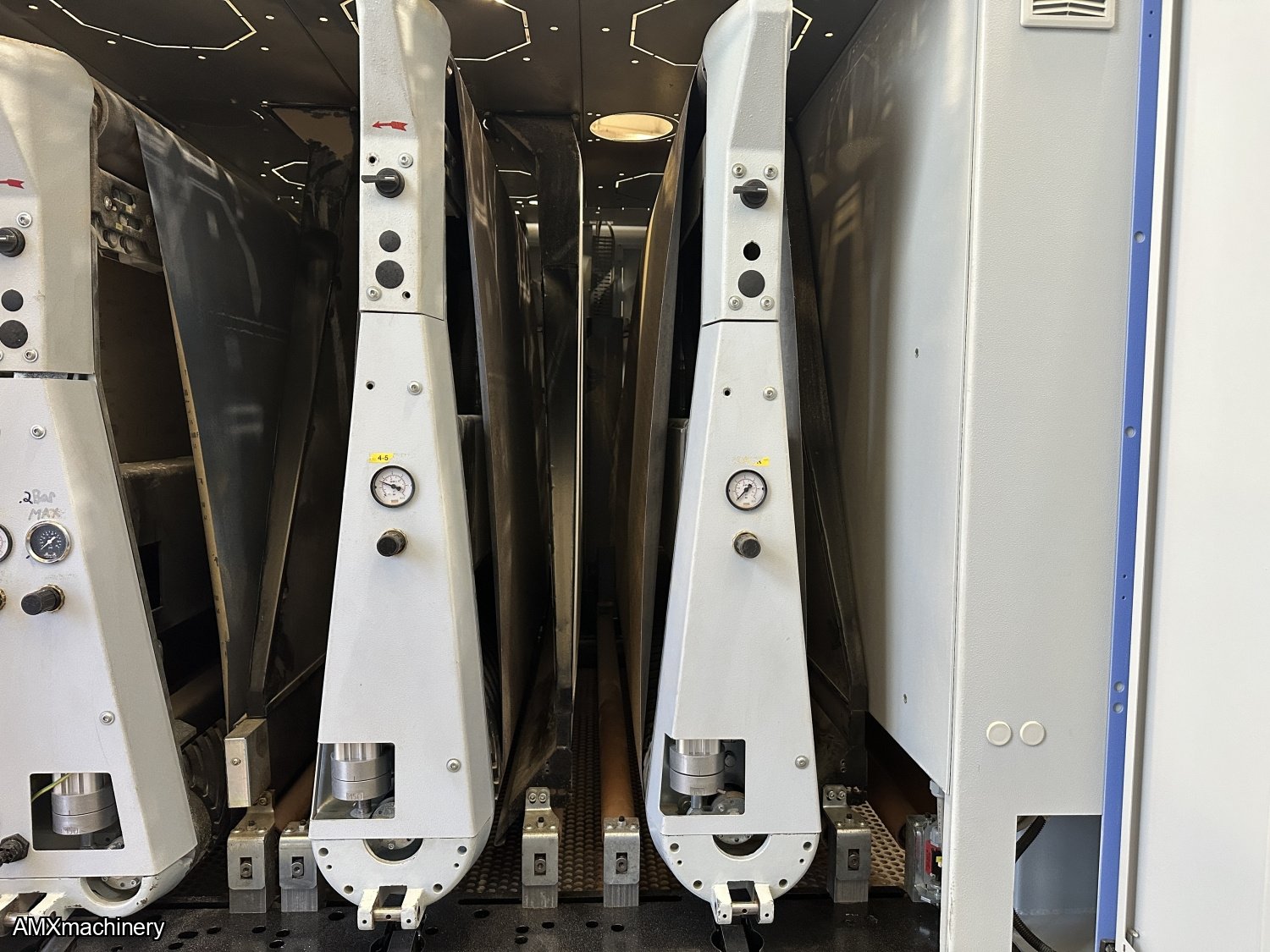

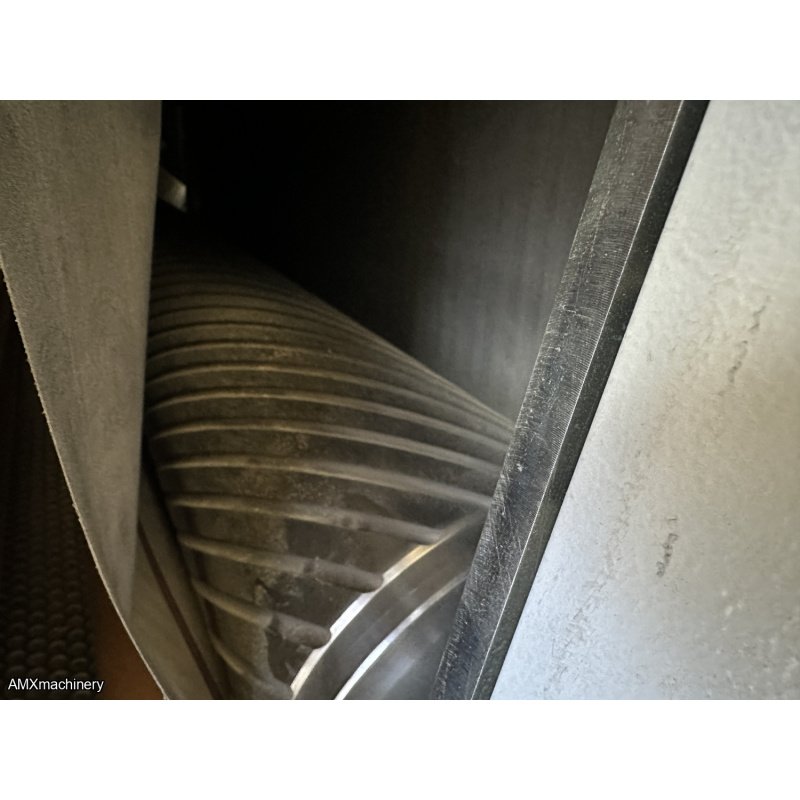

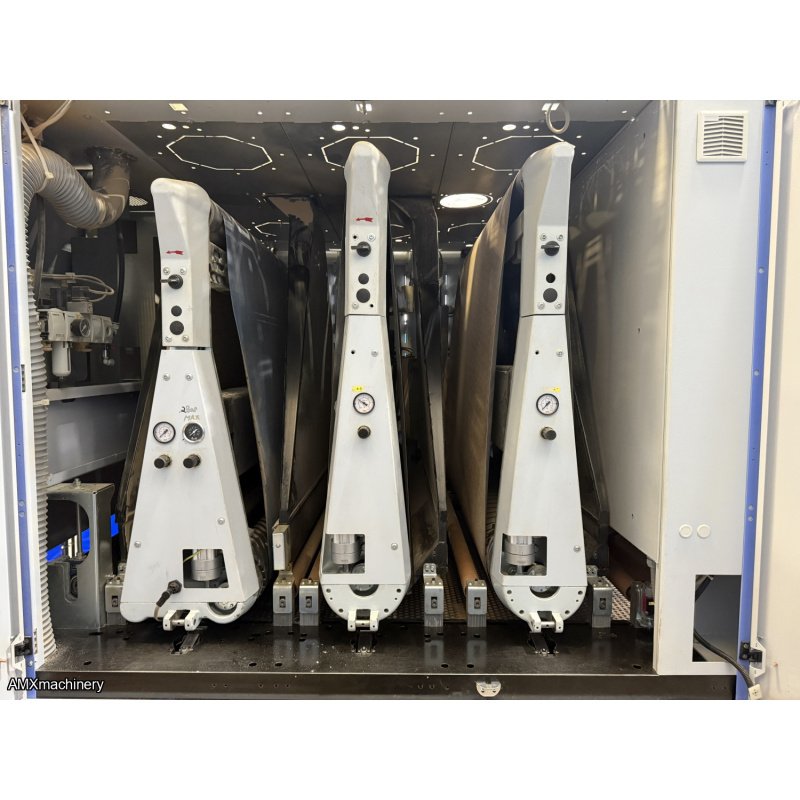

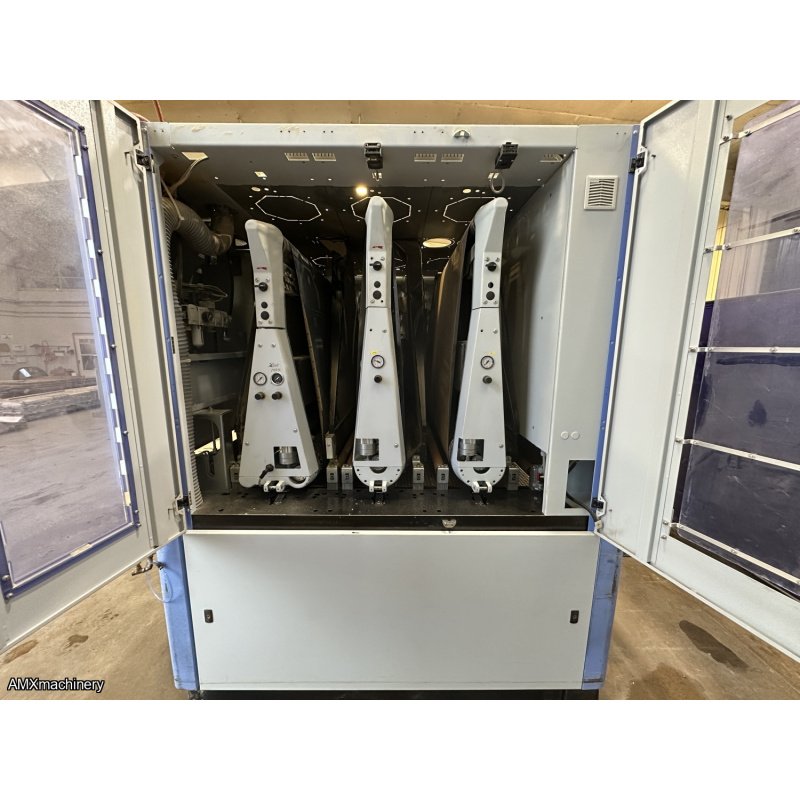

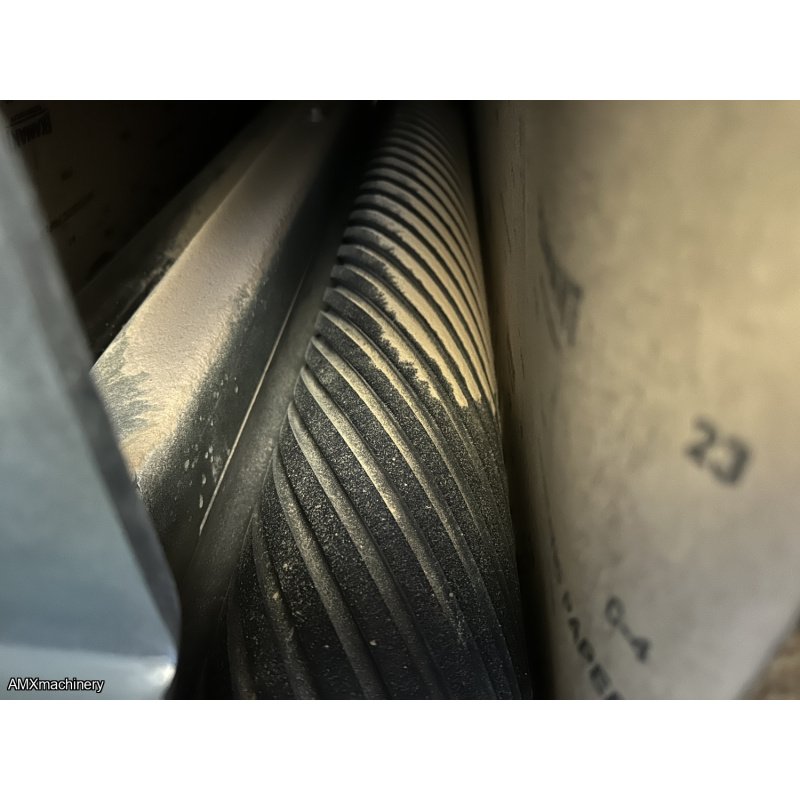

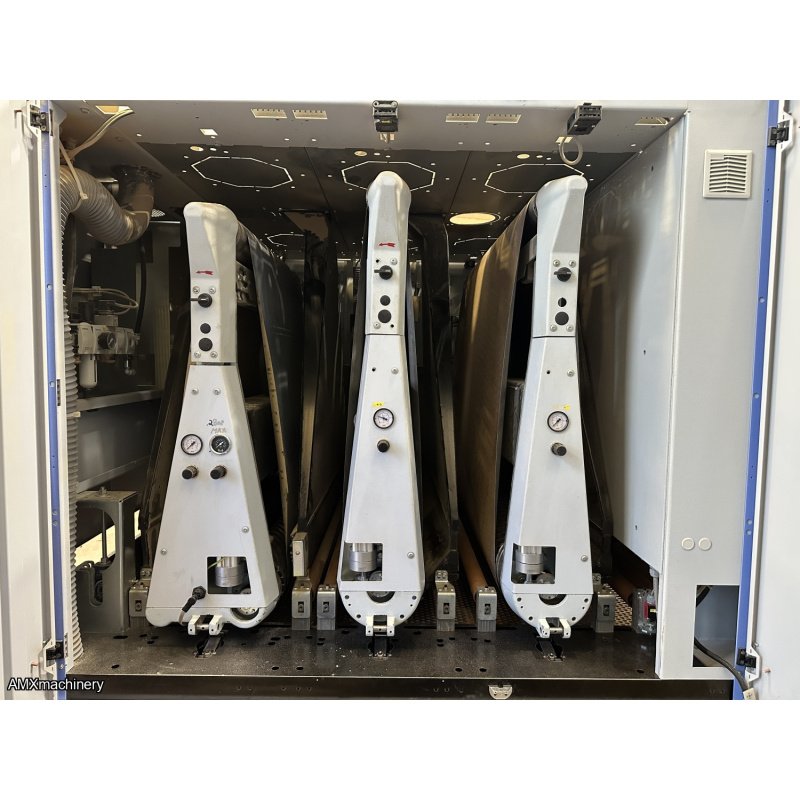

1st Head: Steel Profiled Contact Roller, 30 HP

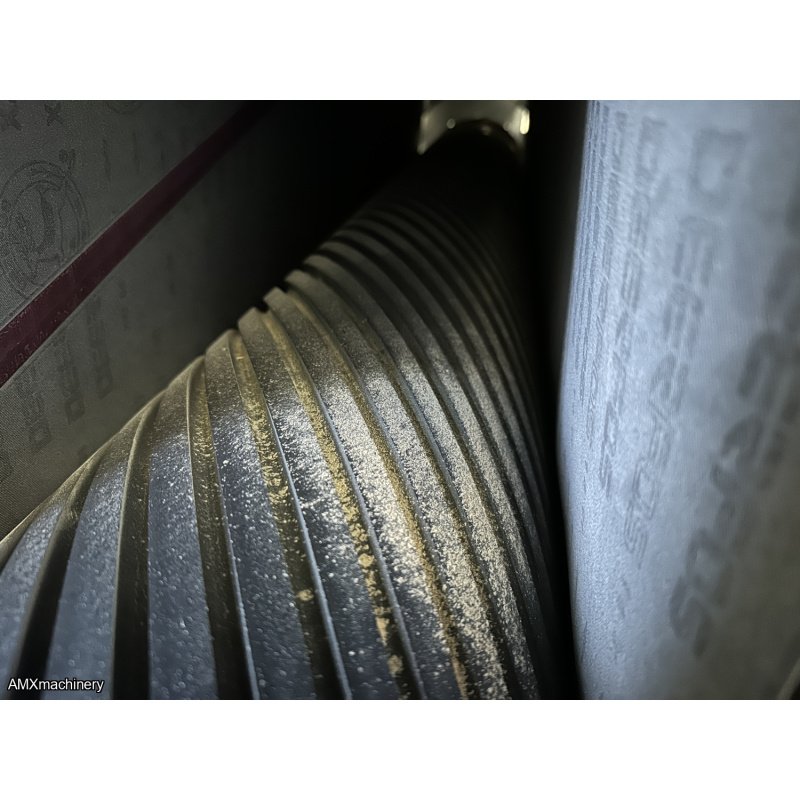

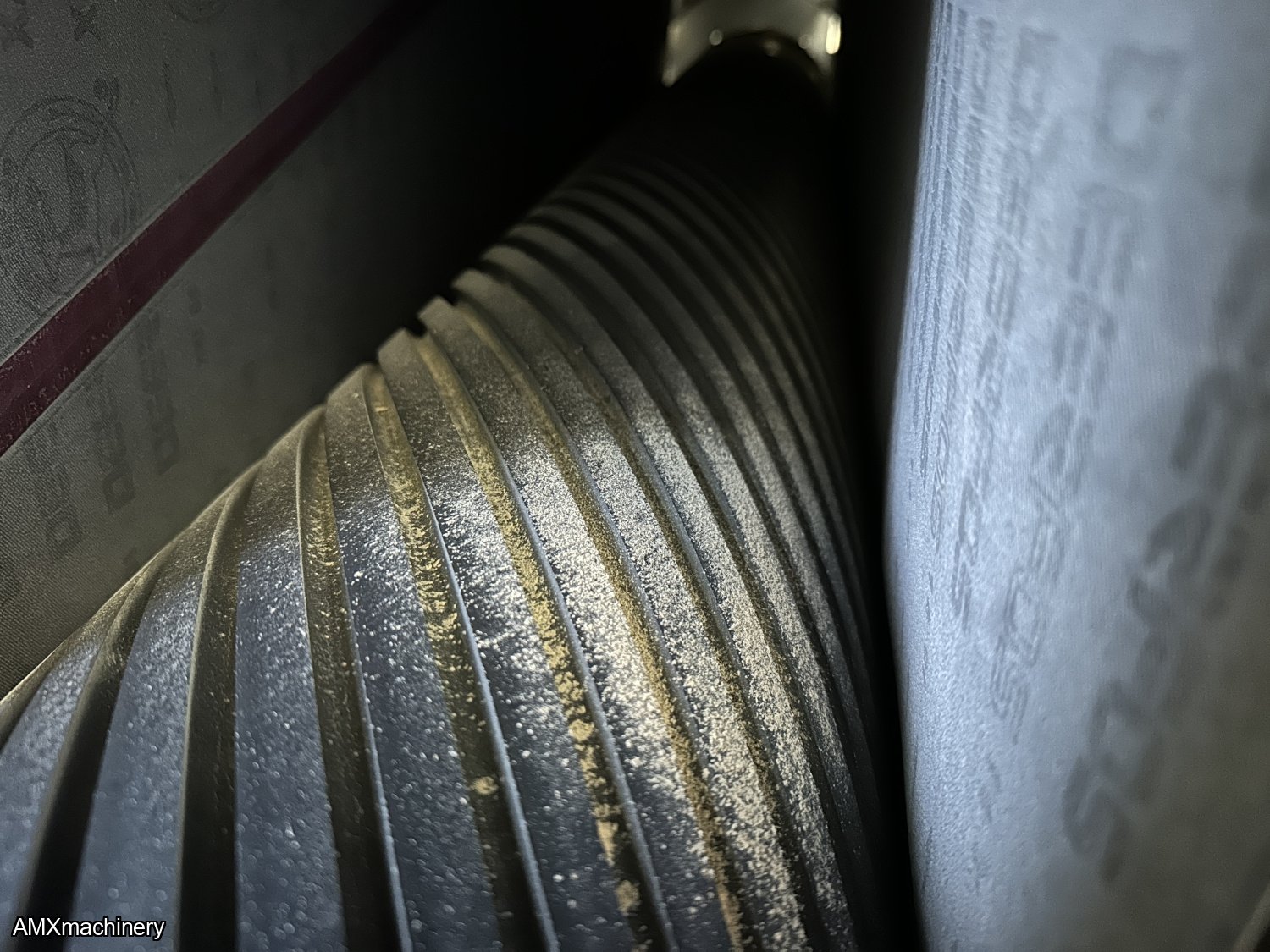

2nd Head: Rubber Profiled Contact Roller, 20 HP

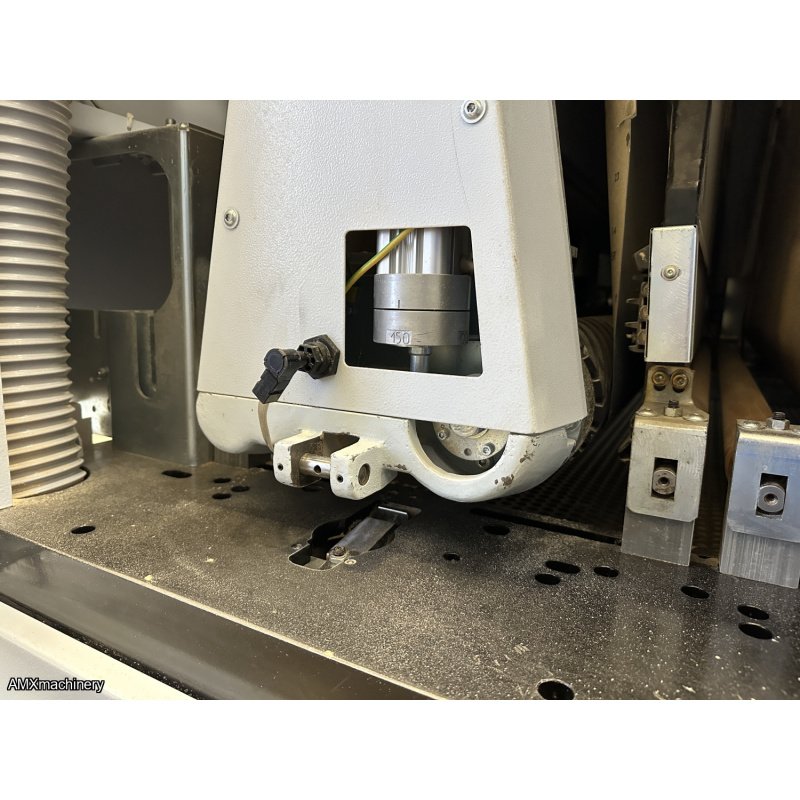

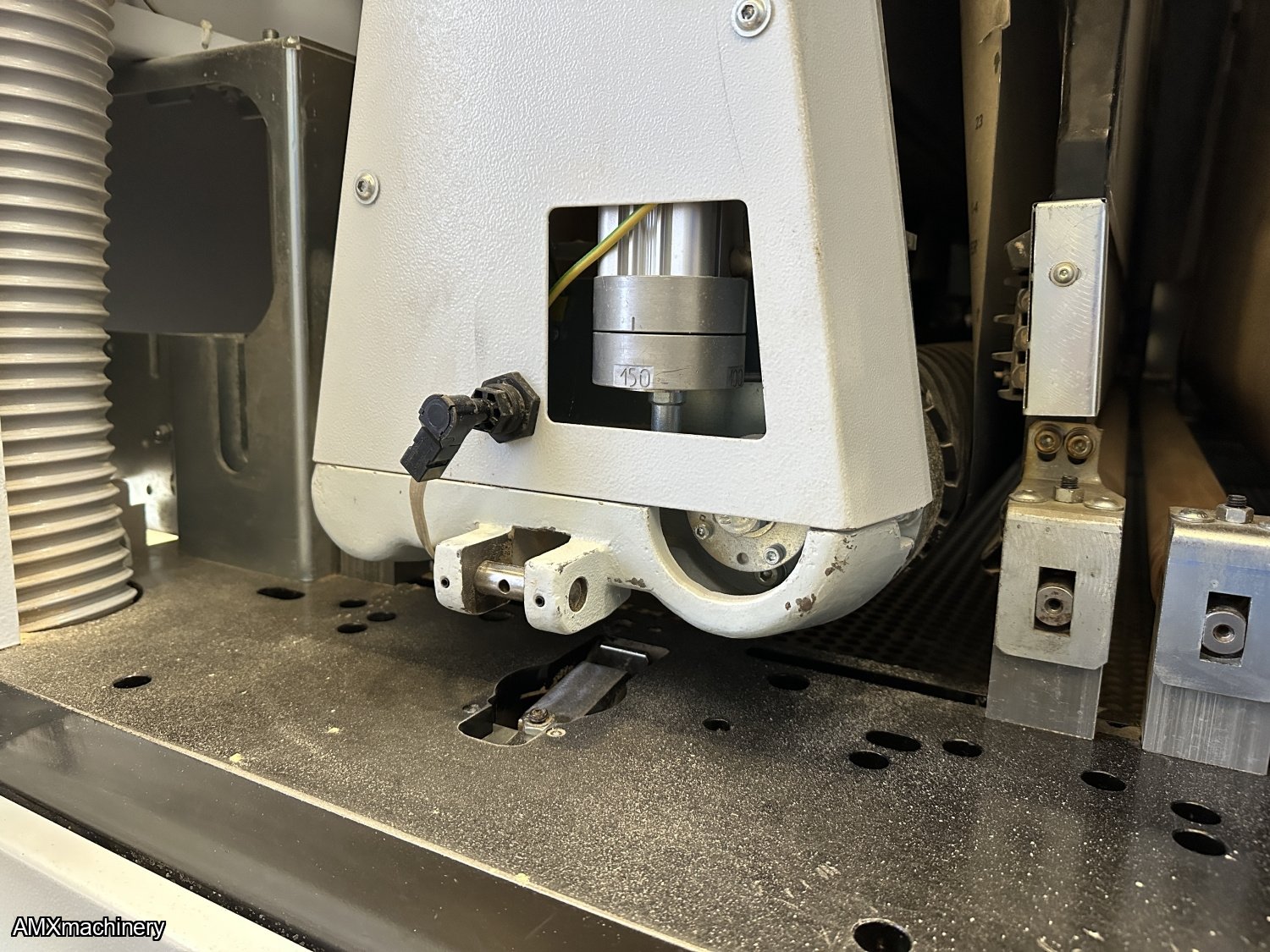

3rd Head: Combination Head, Contact Roller & Air Cushion Sanding Pad/Platen, 20 HP
Constant-Passline Machine
Voltage: 460 Volts, 3 Phase
Full Load Amps: 150 FLA at 460 Volts

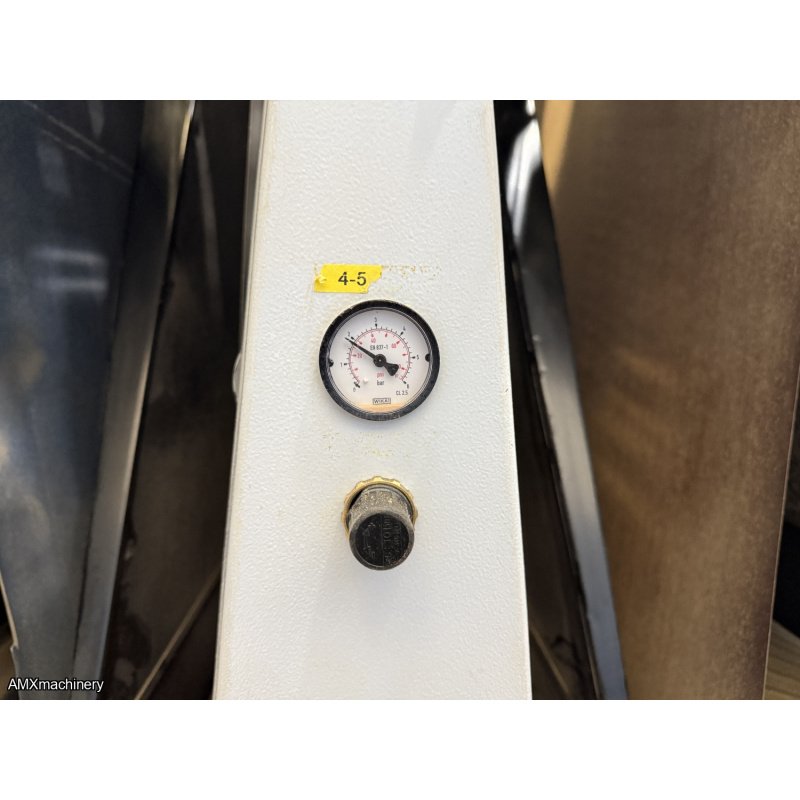

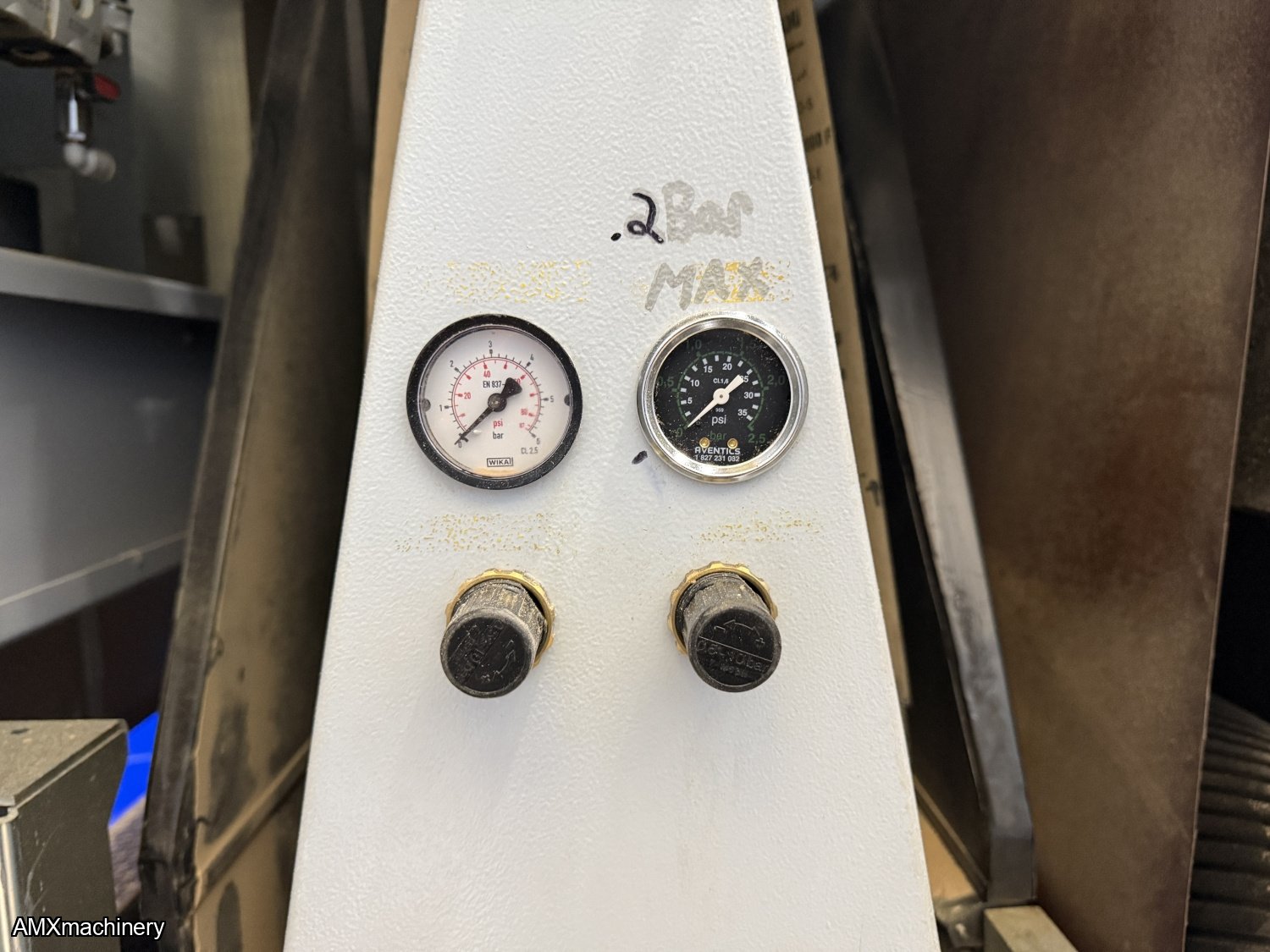

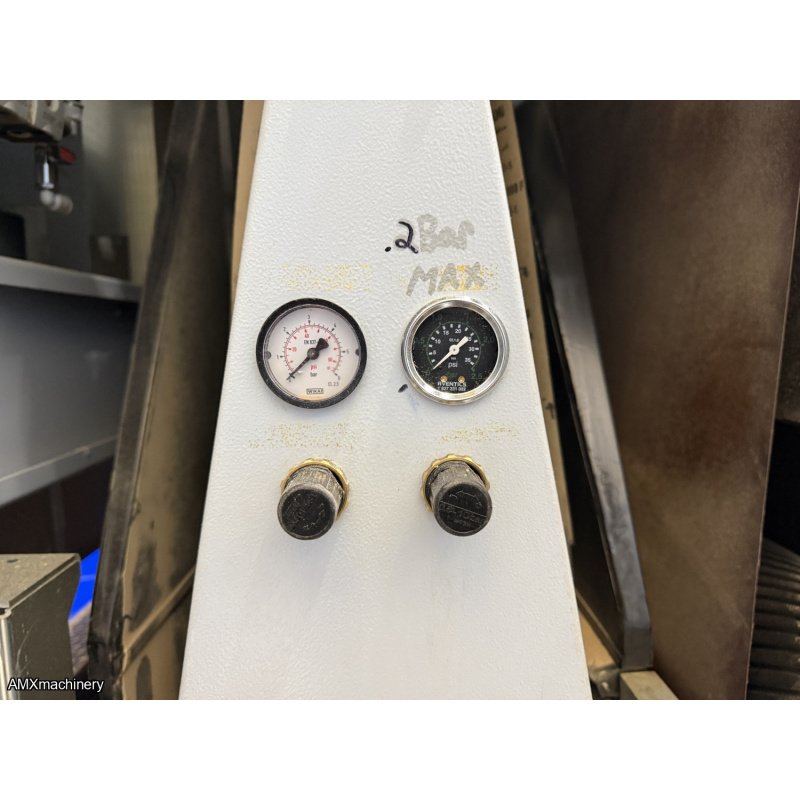

Compressed Air: 55 cfm @ 90 PSI Required
Total CFM Required 5,365

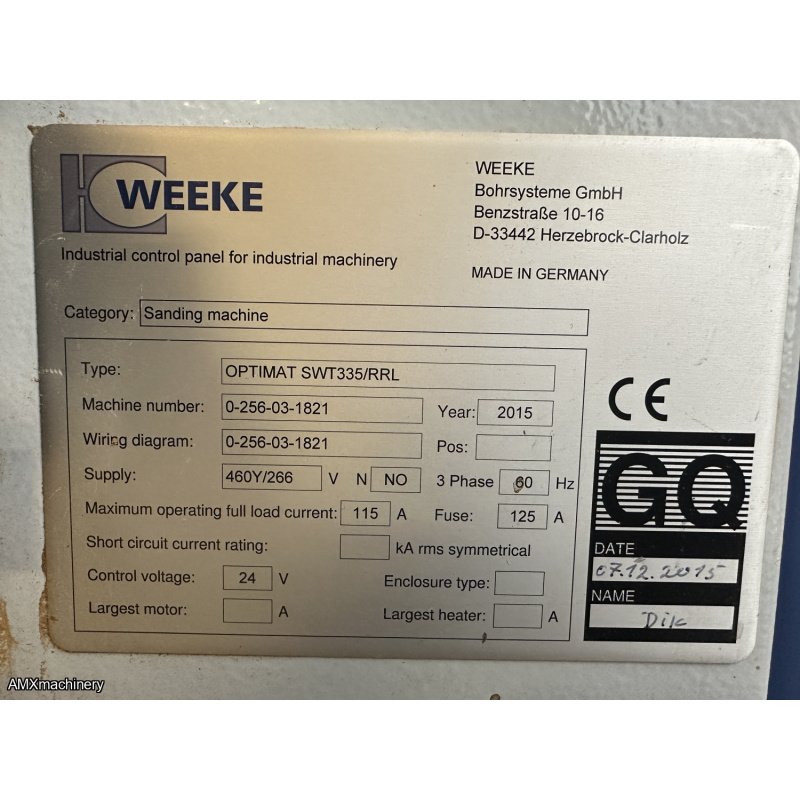

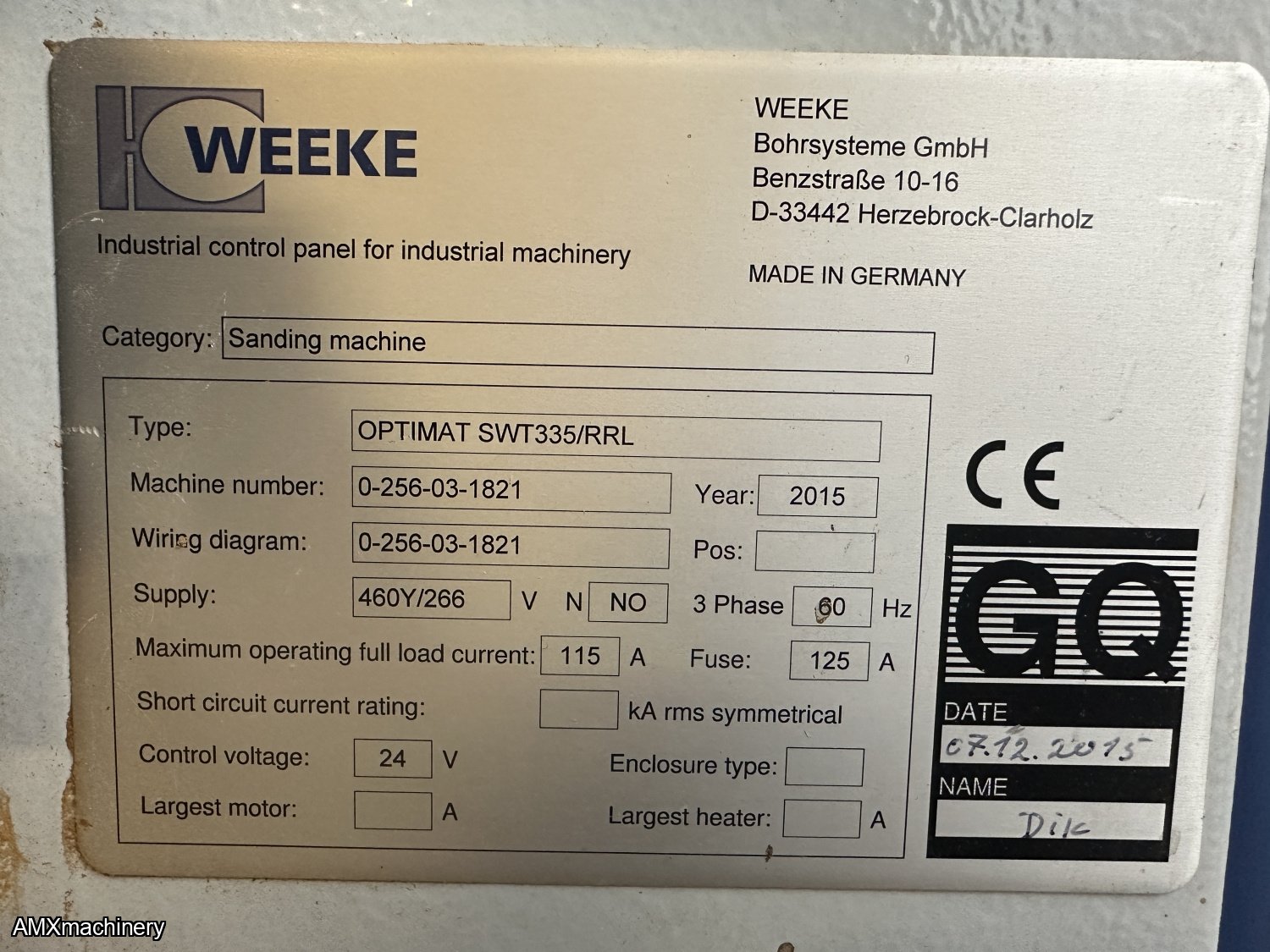

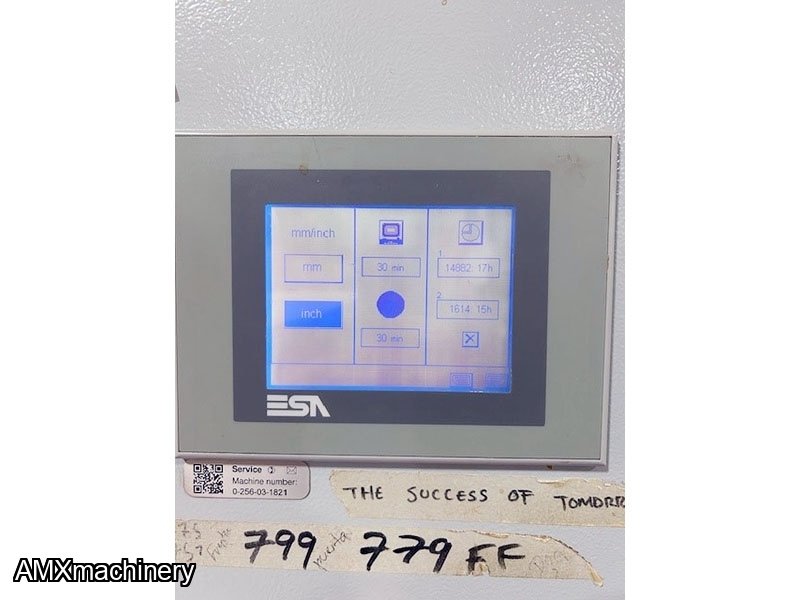

Serial #: 0-256-03-1821
New in 2015
Pago y Devoluciones
- Forma de pago
- Transferencia/Deposito Bancario
