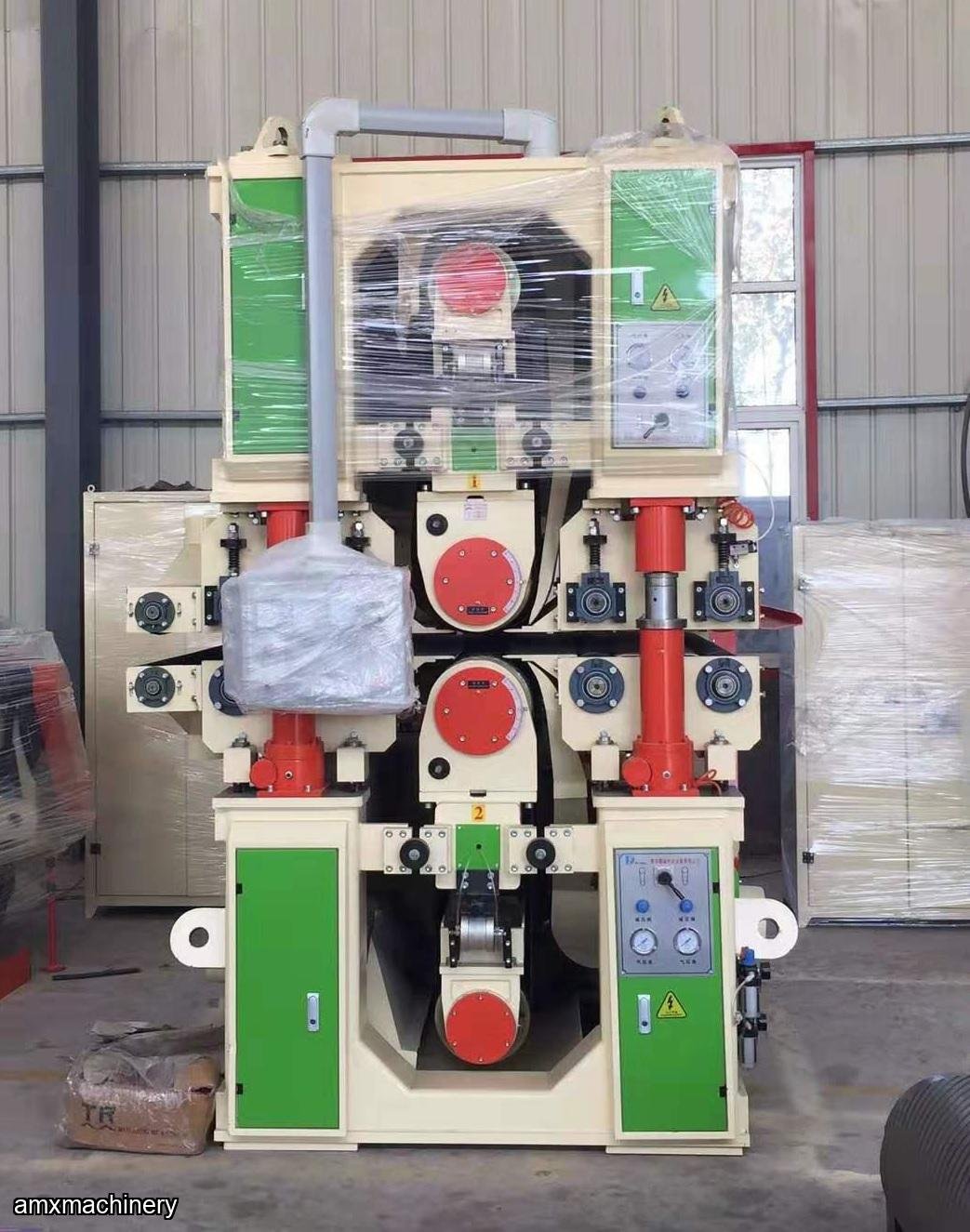

LIJADORA CALIBRADORA DOBLE LADO – 1300 MM (51”) - ANCHO

PARTE: 3UD1-UMD8130 – LIJADORA CALIBRADORA DOBLE LADO – 1300 MM (51”) - ANCHO

COMPACTA - SUPER HEAVY DUTY MACHINE

NUEVA CON GARANTIA

A. The machine is mainly a variety of plates were thick sanding.

B. Mineral cast body with the overall structure, having sufficient rigidity

balance, greatly improving the stability of the machine work.

C. Sanding large roll diameter, increasing the service life of the belt, and

the dynamic balance precisely, smooth operation.

D. Feeding frequency control, speed range, it is widely used in sanding

plate surfaces of different materials.

E. Computer terminals with touch operation, human machine interface

become more friendly and simple to operate.

F. With PLC centralized control, sensitive and reliable, and can

communicate with the network on a computer.

G. Comprehensive self-diagnostic function to quickly display the fault

position, make maintenance quick and reduce downtime.

TECHNICAL DATA:

Processing width 200-1300mm

Processing thickness 3-90mm

Processing length ≥900mm

Speed of sanding belt 24m/s

Speed of feeding 6-30m/min

Size of sanding belt 1350*2800mm

Main motor power of up and down sanding

units

2 x 75kw

Feeding motor power 11kw

Working air pressure 0.55Mpa

Dimension of the machine 2200 x 3360 x 2900mm

Weight 15000kg
