Identificador: 248
Abierta
Descripción

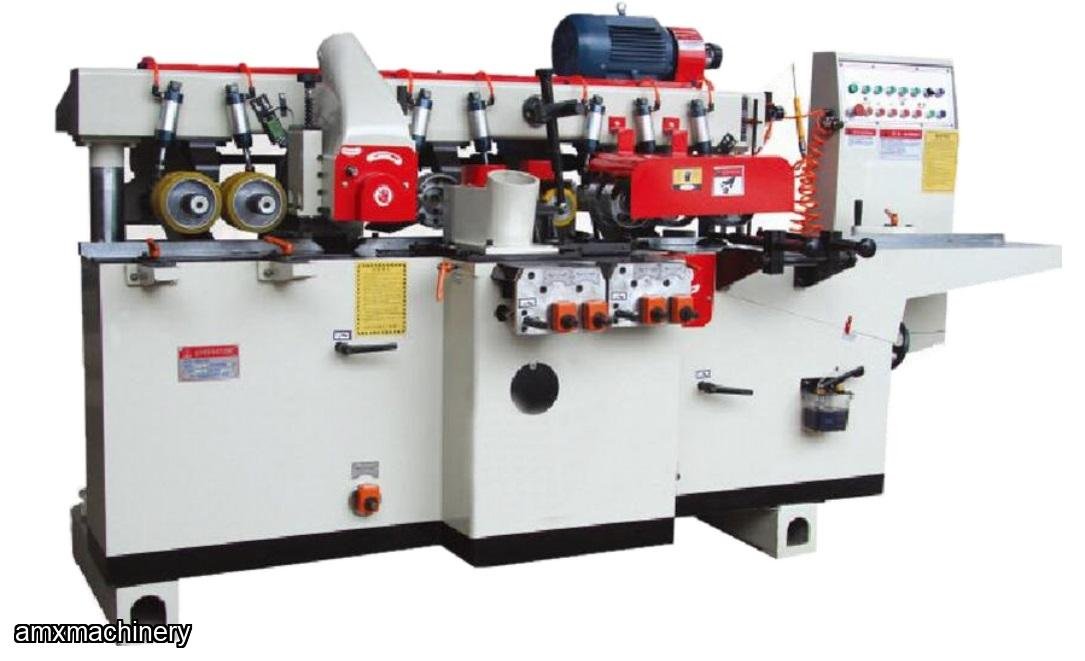

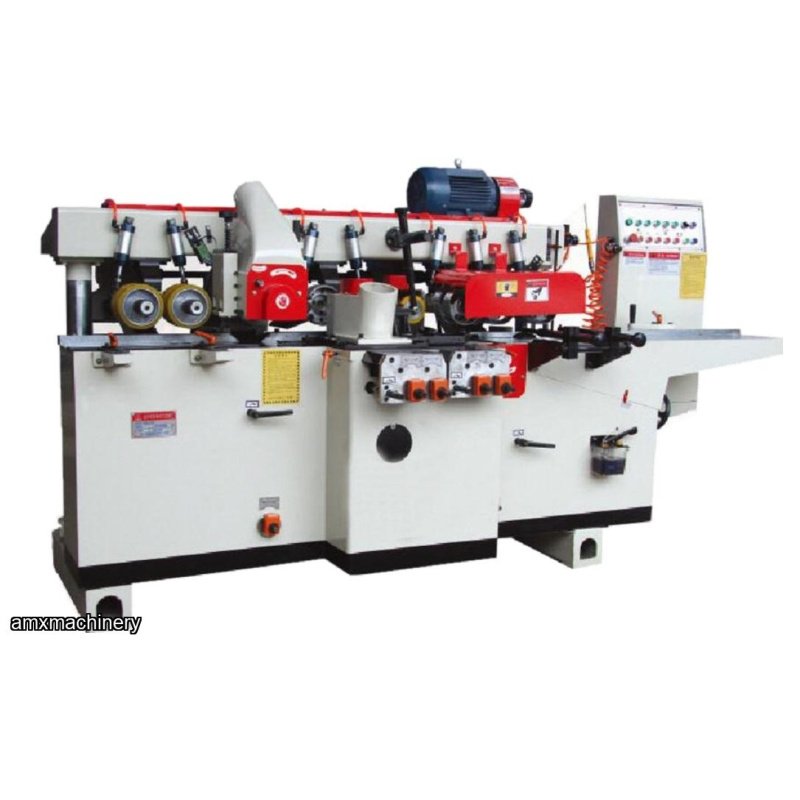

PARTE # 32QD-MB4013GH - MOLDURADORA 4 CABEZALES - 20-130 MM ANCHO
PARTE # 32QD-MB4016GH - MOLDURADORA 4 CABEZALES - 20-160 MM ANCHO
PARTE # 32QD-MB4018GH - MOLDURADORA 4 CABEZALES - 20-180 MM ANCHO
PARTE # 32QD-MB4023GH - MOLDURADORA 4 CABEZALES - 20-230 MM ANCHO
FEATURES
Model | 32QD-MB4013GH | 32QD-MB4016GH | 32QD-MB4018GH | 32QD-MB4023GH |
Planing width | 20-130mm | 20-160mm | 20-180mm | 20-230mm |
Planing thickness | 10-100mm | 10-100mm | 10-100mm | 10-100mm |
Feeding speed | 10-30m/min | 10-30m/min | 10-30m/min | 10-30m/min |
Spindle speed | 6000rpm | 6000rpm | 6000rpm | 6000rpm |
Spindle diameter | Φ40mm | Φ40mm | Φ40mm | Φ40mm |
Air Pressure | 0.3-0.7Mpa | 0.3-0.7Mpa | 0.3-0.7Mpa | 0.3-0.7Mpa |
Up feed WheelΦ | Φ140mm | Φ140mm | Φ140mm | Φ140mm |
Down feed WheelΦ | Φ100mm | Φ100mm | Φ100mm | Φ100mm |
Up cutter Φ | Φ80mm-Φ110mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm |
Down cutter Φ | Φ80mm-Φ110mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm |
Left cutter Φ | Φ80mm-Φ110mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm |
Right cutter Φ | Φ80mm-Φ110mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm |
Up cutter motor | 4KW | 5.5KW | 7.5KW | 7.5KW |
Down cutter motor | 3KW | 4KW | 4KW | 4KW |
Left cutter motor | 3KW | 4KW | 4KW | 4KW |
Right cutter motor | 3KW | 4KW | 4KW | 4KW |
Beam Lifting motor | 0.75 KW | 0.75 KW | 0.75 KW | 0.75 KW |
Feeding motor | 2.2 KW | 2.2KW | 2.2KW | 2.2KW |
Total power | 15.95KW | 20.45KW | 22.45KW | 22.45KW |
Overall dimension | 2450*1300*1600mm | 2900*1400*1650mm | 3200*1550*1650mm | 3000*1700*1600mm |
Weight | 1400kg | 1600kg | 1800kg | 1900kg |
