Description
PARTE # 4KU-SWT-XS - MOLDURADORA 4 CABEZALES - KUPER
Nueva con garantia
Hecha en Alemania
Llamenos para recibir toda la informacion y una cotizacion formal
The entry-level model for small companies – for planing and profiling.
profile-groove depth up to 20 mm
uncomplicated application without a control
3 standard configurations

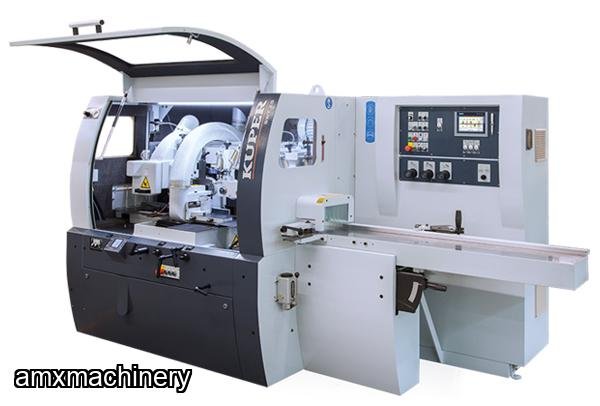

KUPER SWT XS – user-friendly and smart.
The KUPER SWT XS is the unbeaten champion of simplicity and user-friendliness.
The KUPER SWT XS impresses with its generous standard equipment with the option of chamfering or profiling up to 20 mm deep. And its practical quick-clamping system ProLock® makes make-ready a walk in the park.
Advantages at a glance:
- practical tool quick-clamping system ProLock®
- hard-chromium plated infeed and machine table
- feed speed infinitely controllable via frequency converter
- end-to-end feed path, power transmission via several worm gears and cardan joints
- feed and spindle motors designed as IE3 energy saving motors
- pneumatically damped pressure shoe downstream of the top shaft, improved dynamics due to linear guides
- electric height adjustment of the feed support
- start-stop system for all spindle motors

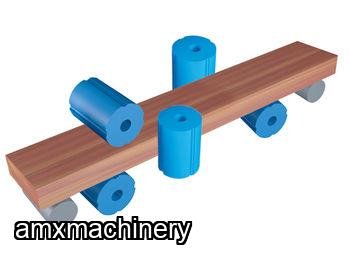

Spindle arrangement:
XS 4
XS 4 U
XS 5
Working width | 15 – 230 mm |
Working height | 10 – 120 mm |
Feed speed | 6 – 24 m/min. |
Axial adjustment path | horizontal spindle 20 mm, vertical spindle 20 mm |
Spindle arrangement | 4, 4 U, 5 |
Spindle power rating | bottom und top 5.5 kW, right and left 7.5 kW (one motor for both vertical spindles) |
Universal spindle | 7.5 kW |
Spindle rotational speed | 6.000 U/min. |
Spindle diameter | 40 mm |
Spindle diameter | first bottom spindle 125 – 160 mm, vertical 112 – 180 mm |
Profile chamfering depth | up to 20 mm |
