ID: 1076
Open
Description

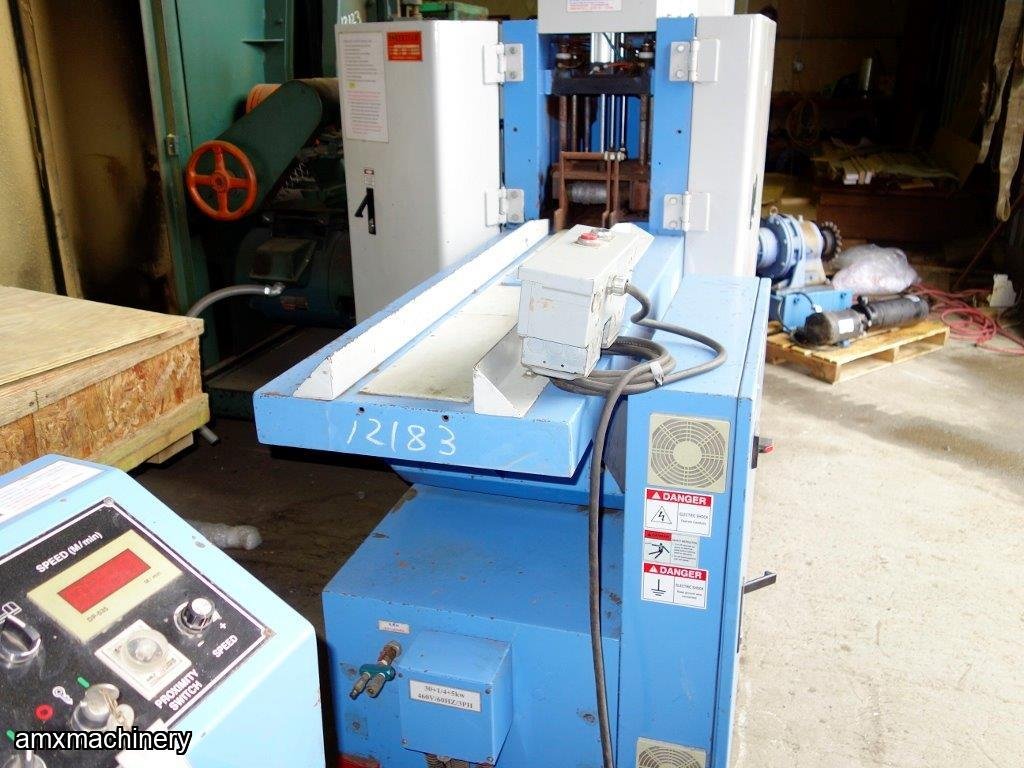

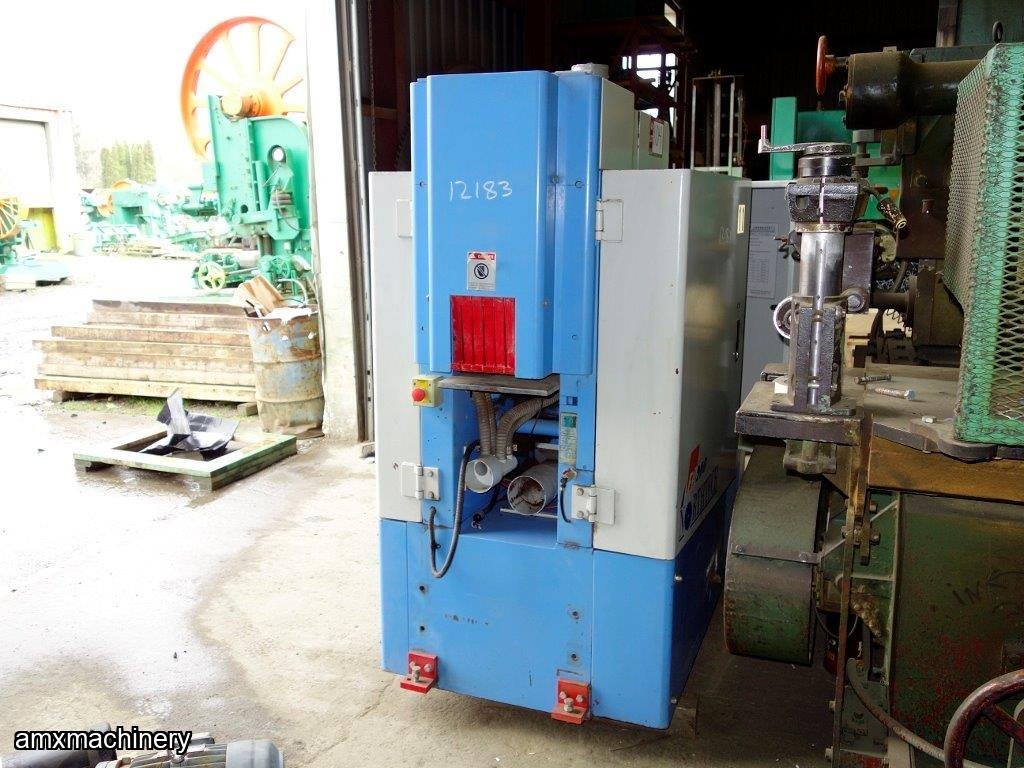

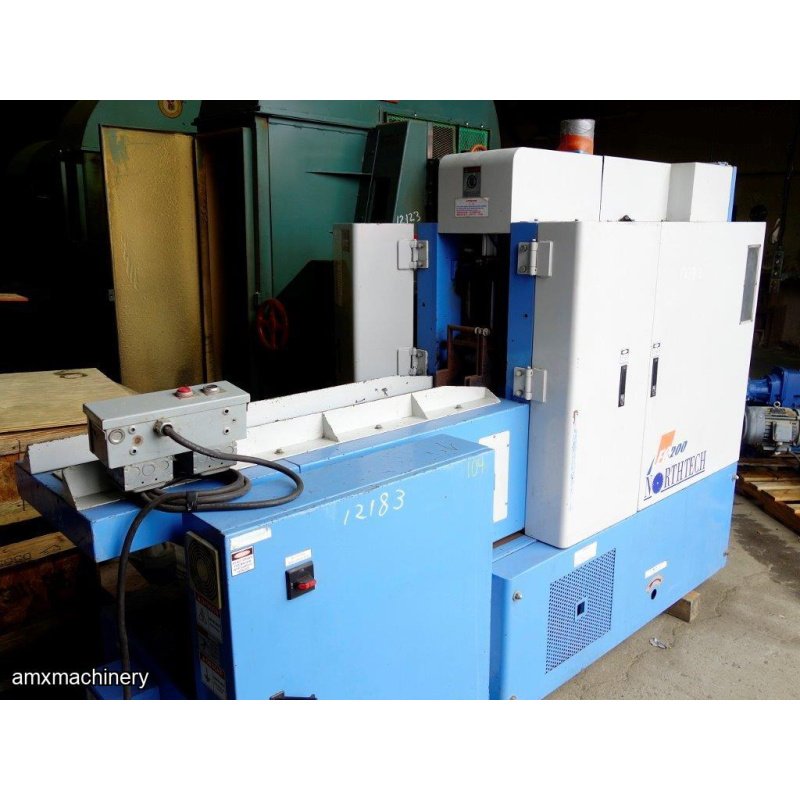

PARTE: 12059 - SIERRA MULTIPLE - DE VAIVEN
Usada - Muy buenas condiciones
Features and Specifications:
Saw capacity of 6" width x 8" vertical capacity.
Minimum working 2” high X 12” long.
Main drive motor to saw frame is 30HP 3PH, wired 460 V
Servo drive system to feed works is 1/4HP 3PH
Blower to saw frame rack for added cleaning value is 3HP 3PH
Body of frame saw is (2) sections allowing for fast access to the saw frame
Saw blade speed is fixed at 550RPM
Dust extraction requires min 3000 CFM and is arranged with (4) 5" ports
Blade size is standard with 500mm L x 40mm W x 0.9mm
Body in stellite or TCT tip

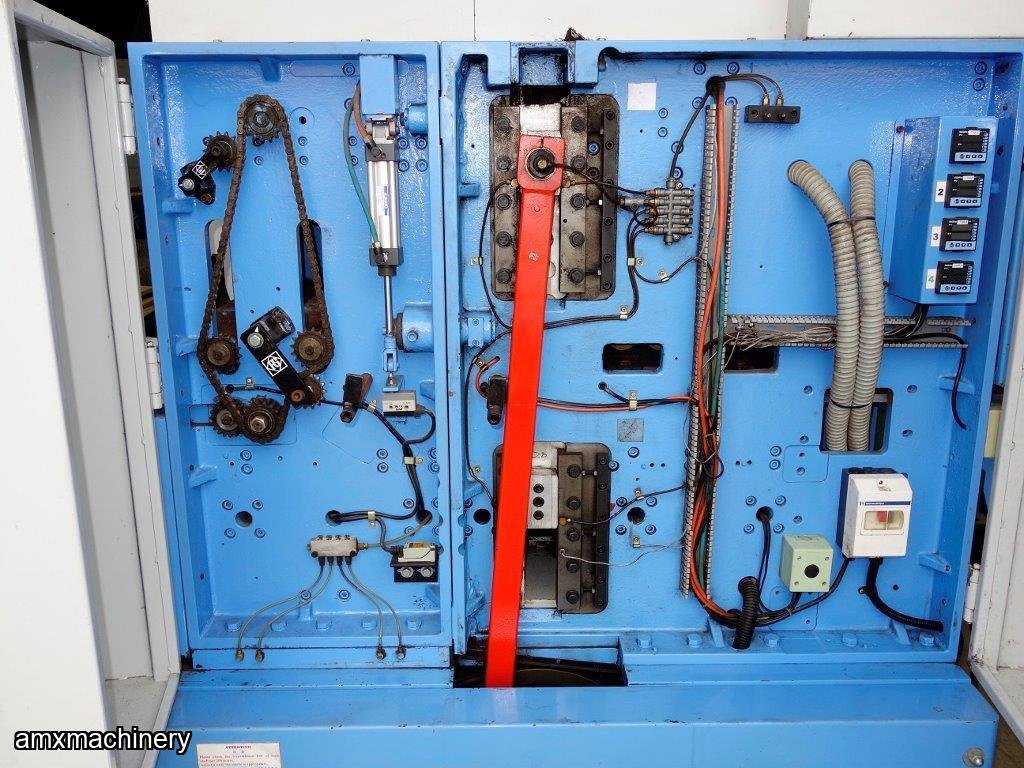

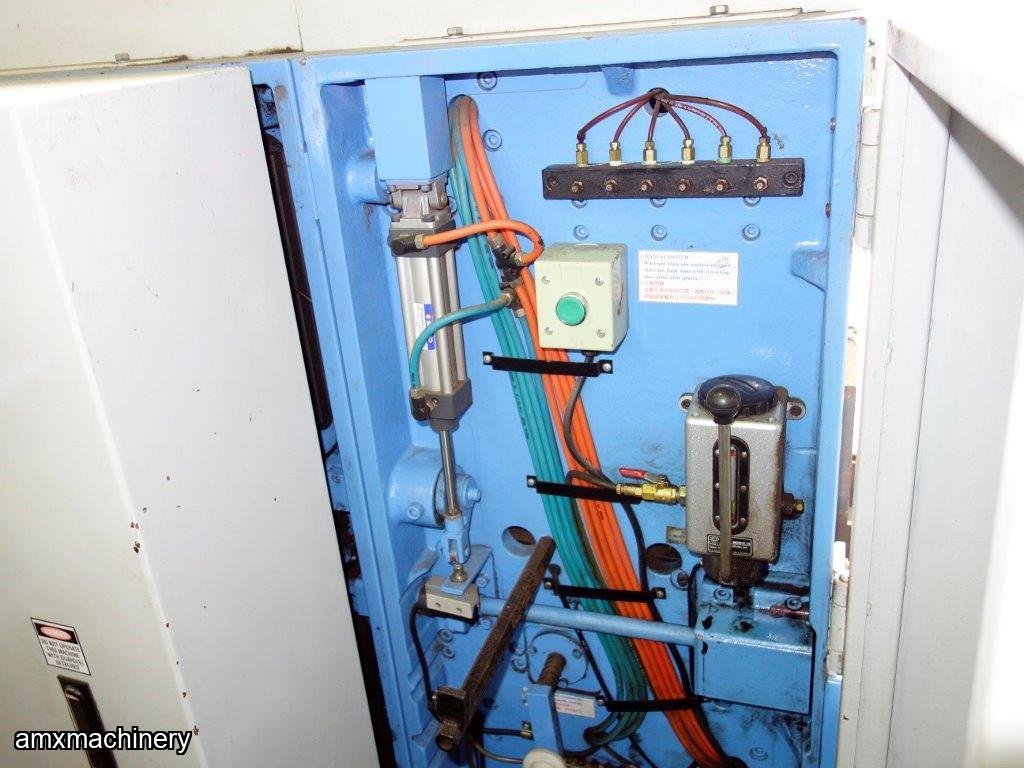

Digital electronic oiling system provides proper lubrication to the saw frame guides and vertical rail system which allows optimum cooling and long term durability
(4) guide blocks are thermo- censored to allow auto shut-off of machine should possible heat buildup occur.
Machine dimensions 122” L X 40” WX, 79” H weight 7100 lbs
Machine was new in 2007.
Good condition.
