Identificador: 2075
Abierta
Descripción

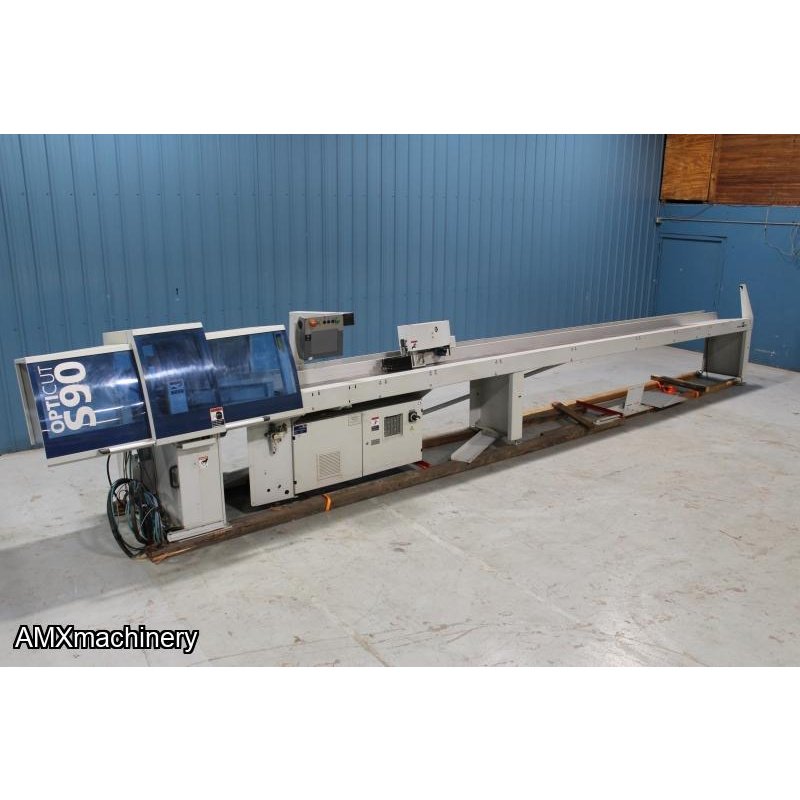

PARTE: 12438 – SIERRA OPTIMIZADORA – WEINIG DIMTER OPTICUT S90
USADA – MUY BUENAS CONDICIONES
- Incoming Lengths up to 248" (20')
- Widths 3/4" Min to 14-1/4" Max
- Thickness 3/8" Min to 4" Max
- Automatic Length Cutting: 800 Lengths Distributed onto 16 Cutting Lists can be Stored. Input up to 200 Lengths per Cutting List is Possible
- Saw Motor 10HP
- Saw Blade Diameter 20-1/2"
- Swiveling Positioning Pusher Including Laser Photo-eye for Automatic Length Detection
- Lateral Pressure Unit for More Dynamic Positioning and Rectangular Cut
- Advance Speed up to 393' /min.
- Speed at Return Stroke up to 787'/min.
- Accuracy Package for Positioning of Pusher +/- 0.1mm
- Automatic Start After Workpieces have been Inserted
- Wide Infeed Table
- Integrated Waste Gate Electro-pneumatically Actuated
- Max. Waste Length Approx 4-3/4"
- Outfeed Conveyor Belt / Sorting Station with Drive Unit 25'
- Two (2) Pneumatic Kickers
- nd of belt can also be used in an additional sort for long fixed length parts, finger joint blocks, or long waste
- New in 2007
- 480v, 3ph
