Descripción

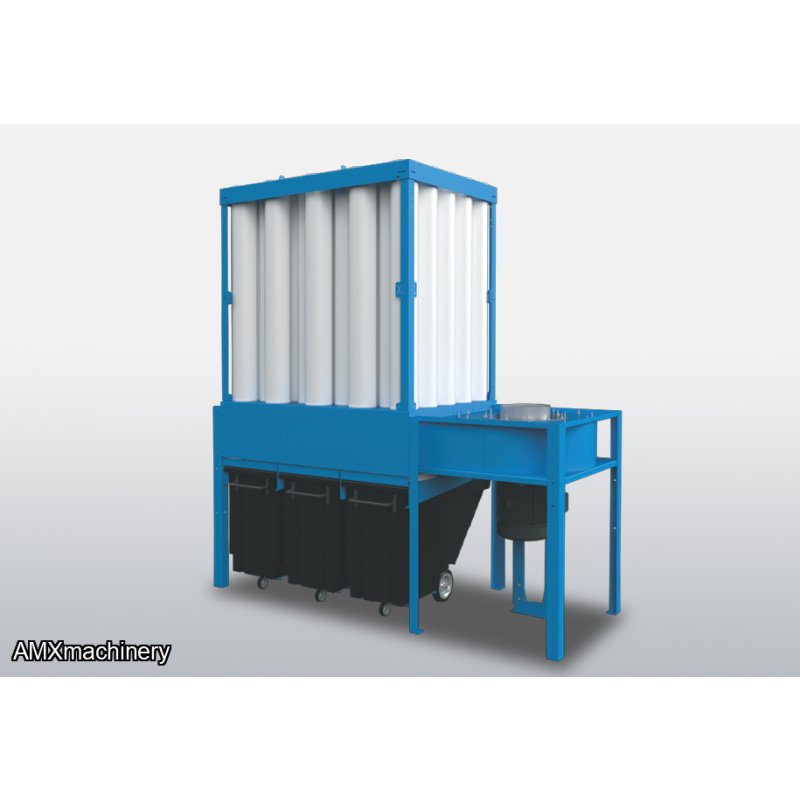

PARTE: 2BE-BEL – COLECTORES DE POLVOS – MODULARES
Nuevos con garantía
5 HP - BEL50XL - 230/460V
7.5 HP - BEL75XL - 230/460V
10 HP - BEL100XL - 230/460V
15 HP - BEL150XL - 230/460V
20 HP - BEL200XL - 230V - 460V
PODEROSAS, BAJO EN RUIDO, SISTEMAS PARA INTERIORES DE COLECCION DE ASERRIN
Ranging from 5 HP to 20 HP, it offers high efficiency and a full range of features. Designed in compliance with NFPA. Optimized for maximum performance, it includes dust disposal options that are engineered to minimize downtime. Ideal for wood dust, the series limits airborne particles, ensuring safety and a clean workspace. Trust Belfab for superior dust collection and a healthier work environment!
Configurable Design
The series offers four filter
sizes with flexible
blower configurations
(5-20 HP) and two height options (standard and XL) to fit various environments, complying to NFPA
standards.
Various
Dust Disposal Options
Choose from disposable bags, durable steel drums for heavy-duty applications,
or easy-to-maneuver tilt trucks for quick and efficient dust disposal in larger facilities.
Quiet
& Highly Efficient
Our quiet Hummer blower, available from 10 to 20 HP. Our units are built with
14-gauge steel for durability and quiet operation. High-efficiency bean bag filters capture 99.99% of particles at
3.8 microns.
- Available
in two heights:
- 9’ (Standard) to fit under most ceiling heights
- 11’ (XL) where additional filtration is an advantage
- High efficiency blower systems for optimal air flow and dust removal.
- The hummer blower is standard on the 10 to 20HP models and is ideal for applications that require a low sound level (under 81 dB)
- Low maintenance direct drive centrifugal fan
- Premium TEFC motor (CSA-us approved)
- High efficiency bean bag filter bags with efficiency level of 99.99% or particles at 3.8 microns
- The unit is configured for push application only
- Versatile dust disposal options according to your storage needs.
- A range of optional accessories to further enhance the performance of your dust collector.
XL HEIGHT SPECIFICATIONS
|
50XL |
75XL |
100XL |
150XL |
200XL |
|
|
Filtration surface (sqft) |
214 |
214 |
321 |
487 |
641 |
|
Filter type dimensions (in) |
Beane seamless tube (ø8 x 66) |
||||
|
Cleaning |
Self cleaning or Automatic shaker (Optional) |
||||
|
Dust disposal options |
Disposable bags, drums, tilt trucks, or 360 gallon dump bin (available on the BEL 150 and BEL 200) |
||||
|
Dimensions (W x D x H) (in) |
62 x 49 x 130 |
64 x 49 x 130 |
94 x 49 x 130 |
119 x 49 x 130 |
142 x 49 x 130 |
|
Module weight (lbs) |
250 |
250 |
295 |
410 |
505 |
Blower Specifications
|
Standard Blower (3600 RPM) |
Hummer Blower (1800 RPM) |
||||
|
Blower motor |
5 HP |
7.5 HP |
10 HP |
15 HP |
20 HP |
|
Capacity |
2500 CFM |
3500 CFM |
4000 CFM |
5000 CFM |
5000 CFM |
|
Suction |
7.5 WC |
7 WC |
8 WC |
10 WC |
11 WC |
|
Inlet diameter |
9” |
10” |
12” |
14” |
16” |
|
Power |
220/1/60, 208-230-460-575/3/60 |
208-230-460-575/3/60 |
|||
|
Blower weight |
200 lbs |
240 lbs |
350 lbs |
450 lbs |
560 lbs |
|
Sound pressure level (including blower) |
82 dBa |
84 dBa |
80 dBa |
81 dBa |
83 dBa |
STANDARD HEIGHT SPECIFICATIONS
|
50 |
75 |
100 |
150 |
200 |
|
|
Filtration surface (sqft) |
150 |
150 |
224 |
340 |
448 |
|
Filter type dimensions (in) |
Beane seamless tube (ø8 x 45 ½) |
||||
|
Cleaning |
Self cleaning or Automatic shaker (Optional) |
||||
|
Dust disposal options |
Disposable bags, drums, tilt trucks, or 360 gallon dump bin (available on the BEL 150 and BEL 200) |
||||
|
Dimensions (W x D x H) (in) |
61 x 49 x 109 |
63 x 49 x 109 |
94 x 49 x 109 |
119 x 49 x 109 |
142 x 49 x 109 |
|
Module weight (lbs) |
250 |
250 |
295 |
410 |
505 |
Blower Specifications
|
Standard Blower (3600 RPM) |
Hummer Blower (1800 RPM) |
||||
|
Blower motor |
5 HP |
7.5 HP |
10 HP |
15 HP |
20 HP |
|
Capacity |
2500 CFM |
3500 CFM |
4000 CFM |
5000 CFM |
5000 CFM |
|
Suction |
7.5 WC |
7 WC |
8 WC |
10 WC |
11 WC |
|
Inlet diameter |
9” |
10” |
12” |
14” |
16” |
|
Power |
220/1/60, 208-230-460-575/3/60 |
208-230-460-575/3/60 |
|||
|
Blower weight |
200 lbs |
240 lbs |
350 lbs |
450 lbs |
560 lbs |
