ID: 2640 Open

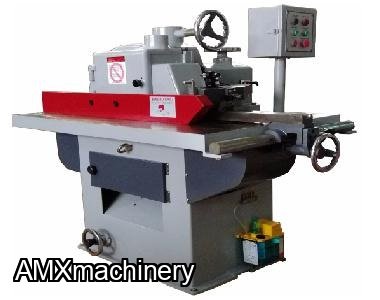

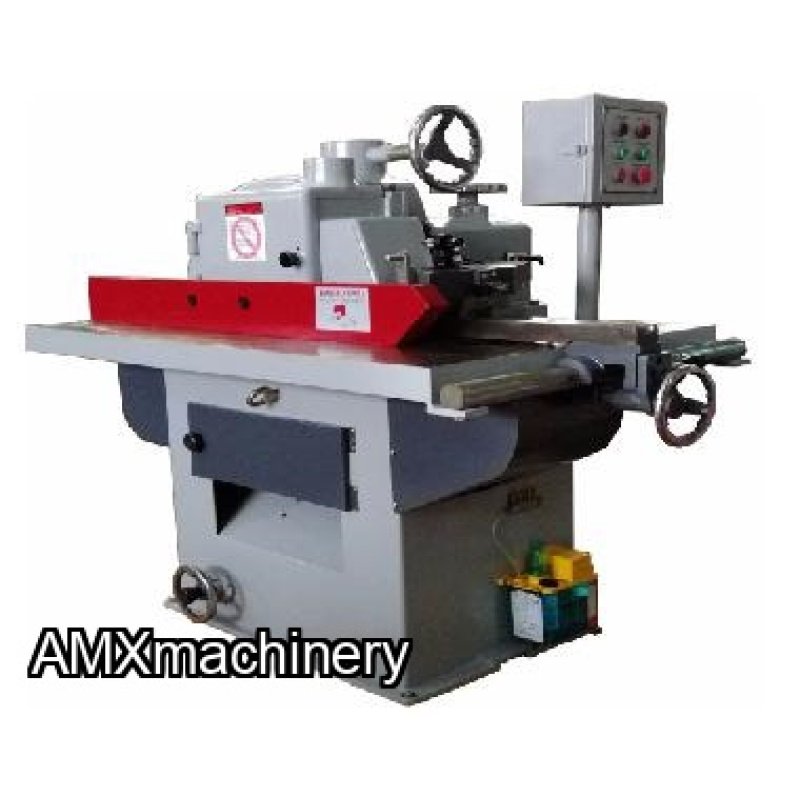

PARTE: 2CA-TRS-0012 - SIERRA RAJADOR - 1 HOJA – UNION PEGADO – MOTOR 10 HP – SIERRA 12”
PARTE: 2CA-TRS-0012 - SIERRA RAJADOR - 1 HOJA – UNION PEGADO – MOTOR 10 HP – SIERRA 12”

PARTE: 2CA-TRS-0012 - SIERRA RAJADOR - 1 HOJA – UNION PEGADO – MOTOR 10 HP – SIERRA 12”

AMXmachinery

Contact Seller
Description

PARTE: 2CA-TRS-0012 - SIERRA RAJADOR - 1 HOJA – UNION PEGADO – MOTOR 10 HP – SIERRA 12”

Nueva con garantía

  • Their precision machining and attention to operator safety and the production needs make these machines some of the most cost effective machines available in the world today.
  • Hard chrome-plated table for maximum wear resistance.
  • Precision fence ensures absolute accuracy between blade & fence, equipped with measuring ruler gauge.
  • Double anti-kickback fingers mounted at the infeed end provides maximum safety protection.
  • Heavy-duty industrial motor for powerful cutting capacity.
  • Ruggedly constructed sheet metal frames for durability usage.
  • The variable feed speed enables the machine to meet different requirement of work.
  • V-way track and chain block surface are heat-treated for long wear resistance.
  • Automatic lubrication to V-Way track facilitates chain running smoothly.
  • Precision built saw head ensures accuracy for straight line rip saw operations.
  • The saw arbor is manufactured from NI-Cr-MO alloy steel for durability and anti-fatigue, heat treated, precision ground and balanced providing precise cutting performance.
  • Four bearing spindle mount ensuring rigidity & long life.
  • Four pressure rollers for precise cutting of large and small workpieces.
  • Heavy-duty cast iron table.
SPECIFICATIONS
TRS-0012
TRS-0016
TRS-0018
Maximum Cutting Depth
3-3/4"
5"
4-3/4"
Arbor Diameter
1"
1"
2"
Max. Amount of Blades Per Spindle
1
1
1
Saw Blade Size
8½" ~12"
10" ~ 16"
14" ~ 18"
Table Dimensions
33" x 59"
40" x 70"
58" x 78"
Spindle Speed
4500 RPM
3600 RPM
3600 RPM
Feeding Speed (RPM)
30 ~ 85
30 ~ 85
30 ~ 85
Throat Depth (1st Blade)
15"
20"
26"
Main Motor
10 HP
15 HP
20 HP
Feed Motor
1 HP
1 HP
3 HP
Feed Chain Width
6"
6"
8-3/4"
Automatic Lubrication
YES
YES
YES
Minimum Workpiece Length
12"
12"
8"
Exhaust Hood Diameter
4"
4"
4"
N.W.
1870 LBS
2600 LBS
3800LBS
G.W.
2000 LBS
2900 LBS
4600 LBS
