ID: 429
Open
Description

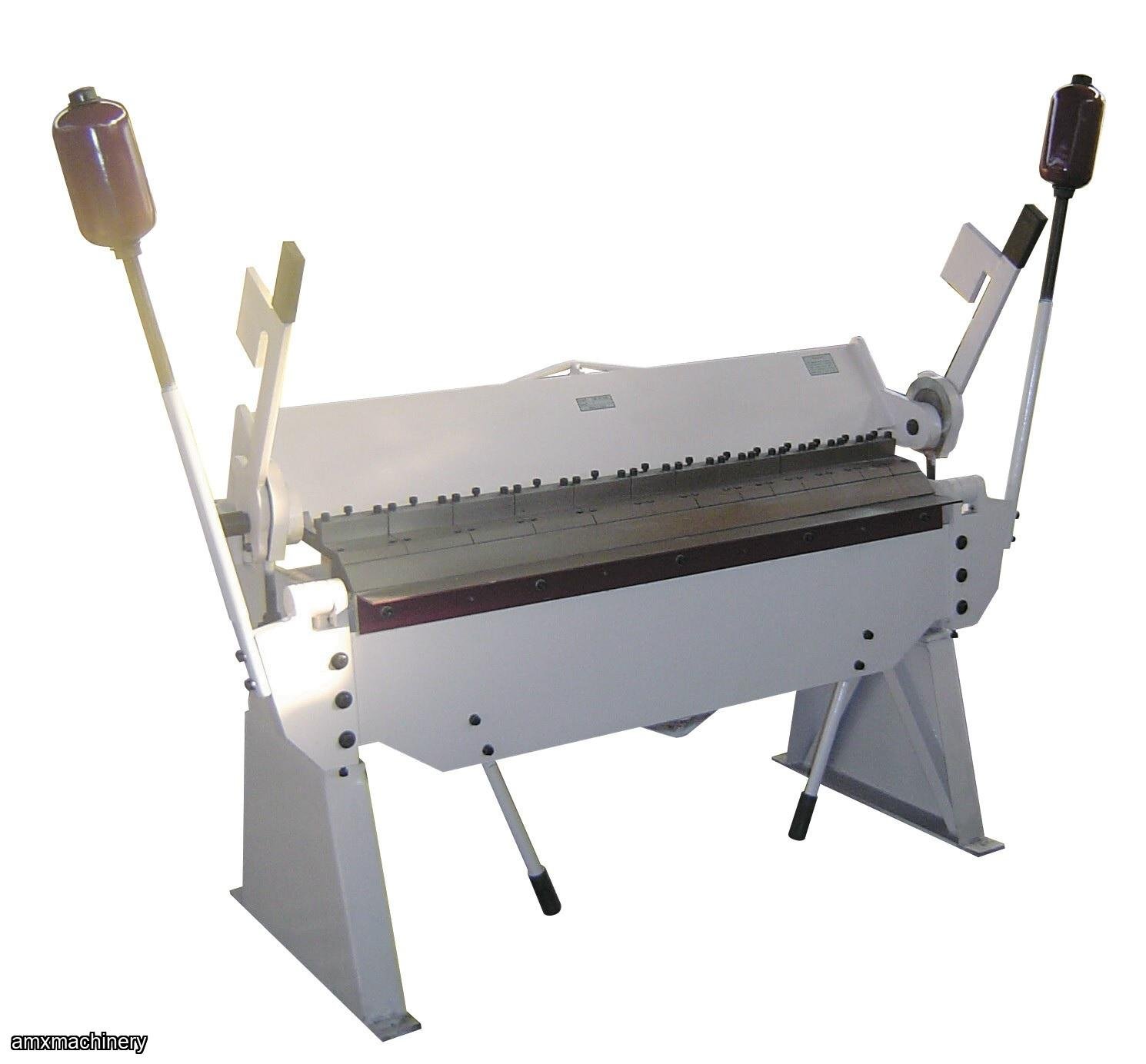

PARTE: 2GM-BB-412-6HD - DOBLADORA MANUAL - USO RUDO
2GM-BB-412-6HD 4 PIES LARGO x 12 Ga.
2GM-BB-612-6HD 6 PIES LARGO x 12 Ga.

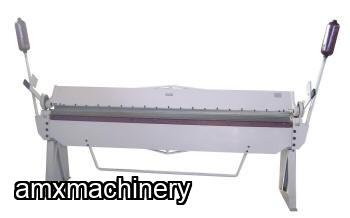

2GM-BB-812-6HD 8 PIES LARGO x 12 Ga.
2GM-BB-1014-6HD 10 PIS LARGO X 14 Ga.
Standard Features
- ISO 9002 certified
- Large 1-9/16” beam opening, adjustable
- 1” beam adjustment ( front and back )
- Total pieces fingers assortment:
- BB-412-6HD: 2”/1pc, 3”/4pcs, 4”/2pcs, 25”/1pc
- BB-612-6HD: 2”/2pcs, 3”/2pcs, 4”/1pc, 5”/3pcs, 6”/3pcs, 11”/3pcs
- BB-812-6HD: 2.5”/1pc, 3”/1pc, 3.5”/1pc, 2”/2pcs, 5”/3pcs, 6”/4pcs, 12”/4pcs
- BB-1014-6HD: 3”/3pcs, 5”/3pcs, 6”/3pcs, 10”/3pcs, 12”/4pcs
- Stop rods for repeat bends
- All steel heavy body construction with extra heavy tie rod for minimum deflection
- One year warranty for parts
Specifications | BB-412-6 HD | BB-612-6 HD | BB-812-6 HD | BB-1014-6 HD |
Bending capacity in mild steel Bending capacity in stainless steel | 12 gauge 16 gauge | 12 gauge 16 gauge | 12 gauge 16 gauge | 14 gauge 18 gauge |
Max. box depth | 6” | 6” | 6” | 6” |
Bending length capacity | 4’ | 6’ | 8’ | 10’ |
Bending angle , degree | 0-135 | 0-135 | 0-135 | 0-135 |
Beam adjustment, front and back | 1” | 1 ” | 1” | 1 ” |
Minimum reverse bend | 1/2” | 1/2” | 1/2” | 1/2” |
Manual clamping | standard | standard | standard | standard |
Beam opening | 1-9/16” | 1-9/16” | 1-9/16” | 1-9/16” |
Net weight, LBS | 2,350 LBS | 2,850 LBS | 3,850 LBS | 4,150 LBS |
Dimensions, inch | 72x35x45” | 98x35x45” | 76x36x46” | 98x36x46” |
