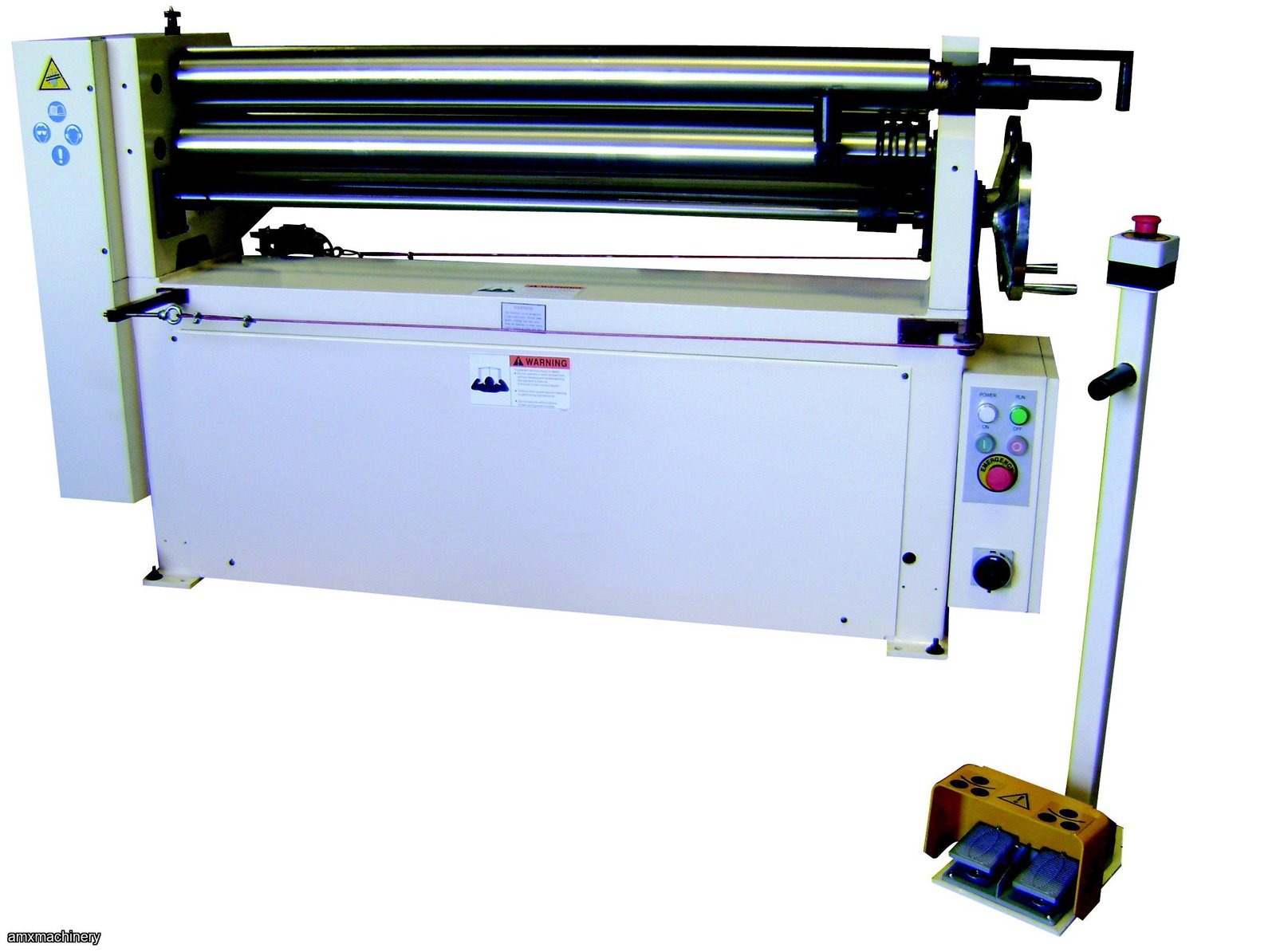

PARTE: 2GM-PBR - ROLADORA ELECTRICA - 4-10 PIES
RODILLO DOBLADOR ENDURECIDO DE 4 – 10 PIES
PARTE: 2GM-PBR-0412 - 4’x12Ga - Mov. Manual del Roll, 2HP, 220V, 3PH.
PARTE: 2GM-PBR-0412E - 4’x12Ga - Mov. Eléctrico del Roll, 2HP, 220/440V, 3PH.
PARTE: 2GM-PBR-04316E - 4’x3/16” - Mov. Eléctrico del Roll, 3HP, 220/440V, 3PH.
PARTE: 2GM-PBR-0425E - 4’x1/4” - Mov. Eléctrico del Roll, 5HP, 220/440V, 3PH.
PARTE: 2GM-PBR-0510E - 5’X10Ga - Mov. Eléctrico del Roll, 3HP, 220/440V, 3PH.
PARTE: 2GM-PBR-0610E - 6’x 10 Ga - Mov. Eléctrico del Roll, 5HP, 220/440V, 3PH.
PARTE: 2GM-PBR-0810E - 8’x 10 Ga - Mov. Eléctrico del Roll, 7HP, 220/440V, 3PH.
PARTE: 2GM-PBR-1010E - 10’x 10 Ga - Mov. Eléctrico del Roll, 7HP, 220/440V, 3PH.
Todas las mquinas tienen rodillos endurecidos a 50 HRC para acero inoxidable.
Standard Features:
- ISO 9001 certified
- Taiwan machines
- 3-rollers are driven to perform high accuracy
- Adjustable cone attachment included
- 3/8”, ½” and 5/8” grooves on rollers
- One wheel one-side operated for bending roll
- One wheel one-site operated for pinch roll ( E model is powered )
- Heavy duty casting frame
- Heavy duty all steel welded construction
- 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
- Quiet running operation
- Easy swing-out top roller
- Safety line all around the machine for emergency stop
- All rolls run forward and reverse
- Safety type forward/reverse foot pedal
- Power source 220V, ( option: 440V, 3 phase )
- One year industrial warranty for parts
Standard Equipment for GMC H.D. Power Bending Rolls:
- Adjustable cone attachment
- 3/8”, ½” and 5/8” grooves on rollers
- Removable safety foot pedal
- Operation & parts manual
- Orange color front cover is optional.
- E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
Optional Equipment:
- Safety fence for enclosure of the back side of the machine.
Specifications for GMC H.D. Power Bending Rolls:
Model # | Capacity Mild Steel
| Capacity Stainless Steel
| Roll Dia.
| Min. Bending Dia.
| Pre-bend
| Rolls Speed ft/min
| Rolls Opening
| Main Motor HP
| Weight LBS approx
| Overall Dimensions inch
|
PBR-0412 PBR-0412E | 4’3”x12 Ga. | 4’3” x 16Ga | 3-1/2” | 4-3/4” | 0.07” | 20 | 1/2” | 2HP | 1,950 | 78x30x50
|
|
|
|
|
|
|
|
|
|
|
|
PBR-04316 PBR-04316E | 4’3”x3/16” | 4’3” x 11Ga | 4-3/4” | 6” | 0.16” | 20 | 1/2” | 3HP | 2,750 | 78x30x52
|
PBR-0425 PBR-0425E | 4’3” X ¼” | 4’3” x 11Ga | 6-1/4” | 8-1/4” | 0.25” | 20 | 1/2” | 5HP | 3,850 | 78x33x52
|
PBR-0510 PBR-0510E | 5’1”x10 Ga. | 5’1” x 14Ga | 4-3/4” | 6” | 0.12” | 20 | 1/2” | 3HP | 3,050 | 96x32x52 |
|
|
|
|
|
|
|
|
|
|
|
PBR-0610 PBR-0610E | 6’8”x10 Ga. | 6’8” x 14Ga
| 5”
| 6-3/4” | 0.12” | 20 | 1/2” | 5 HP | 3,850 | 106x33x52 |
